CH730-0085 - Kohler Command PRO Engine, Made for Wacker Corp., 23.5hp, 17.5kW Air Intake/Flitration 10-24-145 Parts Diagram

Command PRO Engine, Made for Wacker Corp., 23.5hp, 17.5kW

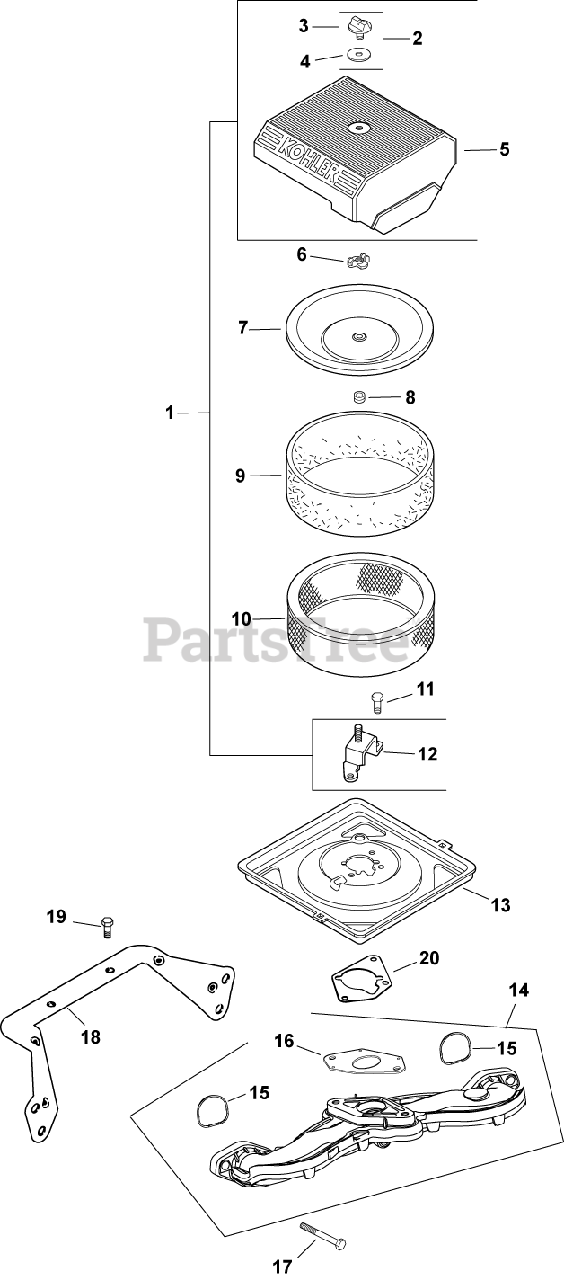

Air Intake/Flitration 10-24-145 Parts Diagram

  • Title
1

Kohler 24 743 05-S

KIT, AIR CLEANER COVER

Note: (includes 2-5,12)

$90.99

$

In Stock, only 1 left!

0

2

Kohler 54 755 01-S

KIT, KNOB W/SEAL

$9.49

$

In Stock, only 4 left!

0

3

Kohler 25 341 04-S

KNOB, COVER

$7.99

$

Usually ships in 2-5 days

0

$2.49

$

In Stock, Qty 10

0

5

Kohler 24 096 67-S

COVER, AIR CLEANER

$47.99

$

In Stock, only 1 left!

0

6

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 2 left!

0

7

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

8

Kohler 230046-S

SEAL, BREATHER

$6.49

$

In Stock, only 1 left!

0

9

Kohler 24 083 05-S

PRE-CLEANER (HIGH)

$6.99

$

In Stock, Qty 6

0

10

Kohler 24 083 03-S

ELEMENT, AIR FILTER (HIGH) - Also available Retail Packaged 24 883 03-S1 Air Filter Kit

$23.99

$

Usually ships in 2-5 days

0

11

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

12

Kohler 24 126 88-S

BRACKET, AIR CLEANER-USE 24 126 210-S
(Superseded to 24 126 226-S)

$13.99

$

In Stock, only 2 left!

0

13

Kohler 24 094 37-S

BASE, AIR CLEANER -USE 24 094 88-S
(Superseded to 24 094 88-S)

$28.99

$

Usually ships in 2-5 days

0

14

Kohler 24 164 54-S

MANIFOLD, INTAKE - PLASTIC-USE 24 164 93
(Superseded to 24 164 93-S)

Note: (includes 15, 16)

$184.99

$

Usually ships in 2-5 days

0

15

Kohler 24 153 27-S

O-RING, INTAKE PORT

$3.99

$

In Stock, Qty 8

0

16

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 7

0

17

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, Qty 12

0

18

Kohler 24 126 130-S

BRACKET, AIR CLEANER BASE

$10.99

$

In Stock, only 4 left!

0

19

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

20

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

2411206-S

Kohler 24 112 06-S

SPACER, AIR CLEANER

Note: NOT ILLUSTRATED

$119.99

$

Usually ships in 2-5 days

0
