CH730-0082 - Kohler Command PRO Engine, Made for K Bar, 23.5hp, 17.5kW Fuel System 8-24-447 Parts Diagram

Command PRO Engine, Made for K Bar, 23.5hp, 17.5kW

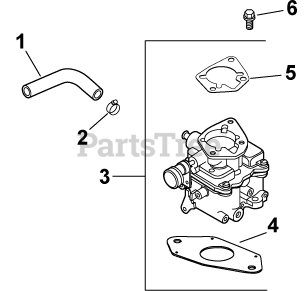

Fuel System 8-24-447 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

3

Kohler 24 853 91-S

KIT, CARBURETOR W/GASKETS USE 24 853 257-S
(Superseded to 24 853 257-S)

Note: (includes 4,5)

$

$

Not available

4

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 12

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

6

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

2475707-S

Kohler 24 757 07-S

KIT, REPAIR CHOKE

Note: NOT ILLUSTRATED

$95.99

$

In Stock, only 1 left!

0

2475702-S

Kohler 24 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$133.99

$

Usually ships in 2-5 days

0

2475701-S

Kohler 24 757 01-S

KIT, SOLENOID

Note: NOT ILLUSTRATED

$227.99

$

In Stock, only 1 left!

0

2475703-S

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

Note: NOT ILLUSTRATED

$112.99

$

In Stock, only 1 left!

0

2475708-S

Kohler 24 757 08-S

KIT, REPAIR ACC PUMP

Note: NOT ILLUSTRATED

$84.99

$

In Stock, only 1 left!

0

2475709-S

Kohler 24 757 09-S

KIT, REPAIR-ACC PUMP SEAL

Note: NOT ILLUSTRATED

$109.99

$

Usually ships in 2-5 days

0

24755130-S

Kohler 24 755 130-S

KIT,HIGH ALTITUDE (4,000 - 8,000 FT)

Note: NOT ILLUSTRATED

$55.99

$

Usually ships in 2-5 days

0

2451824-S

Kohler 24 518 24-S

LEAD, GROUND

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

2517309-S

Kohler 25 173 09-S

CAP, MASKING

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0
