CH730-0082 - Kohler Command PRO Engine, Made for K Bar, 23.5hp, 17.5kW Exhaust 11-24-91 Parts Diagram

Command PRO Engine, Made for K Bar, 23.5hp, 17.5kW

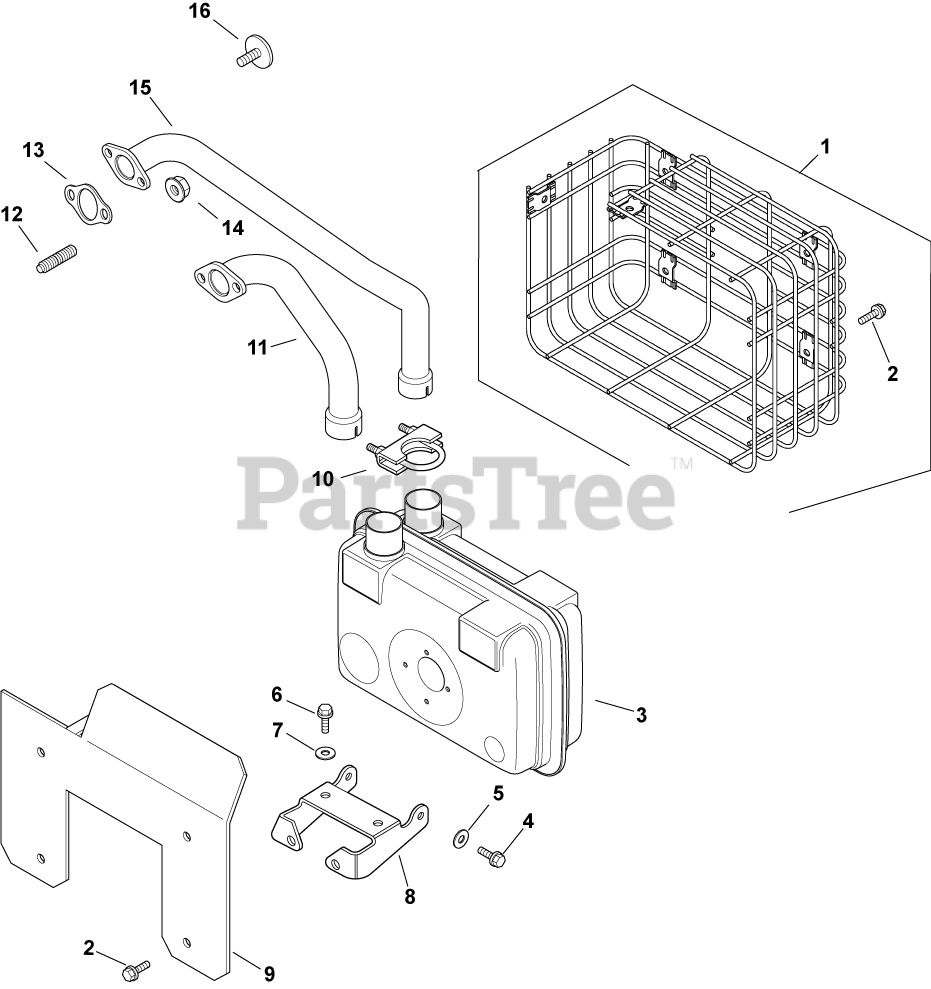

Exhaust 11-24-91 Parts Diagram

  • Title

1

Kohler 24 755 151-S

KIT, WIRE GUARD-FILTER SIDE

Note: (includes 2 [qty 6])

$123.99

$

Usually ships in 2-5 days

0

2

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

3

Kohler 24 068 31-S

MUFFLER USE 24 068 157-S
(Superseded to 24 068 157-S)

$485.99

$

Usually ships in 2-5 days

0

4

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 14

0

5

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

6

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

7

Kohler 24 468 14-S

WASHER, FLAT

$2.99

$

In Stock, only 1 left!

0

8

Kohler 24 126 67-S

BRACKET, MUFFLER

$128.99

$

Usually ships in 2-5 days

0

9

Kohler 24 314 17-S

HEAT SHIELD, MUFFLER

$121.99

$

Usually ships in 2-5 days

0

10

Kohler 24 237 06-S

CLAMP, MUFFLER

$6.99

$

Usually ships in 2-5 days

0

11

Kohler 24 164 22-S

MANIFOLD, EXHAUST

$143.99

$

In Stock, only 1 left!

0

12

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

13

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

14

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

15

Kohler 24 164 21-S

MANIFOLD, EXHAUST

$128.99

$

In Stock, only 1 left!

0

16

Kohler 25 086 40-S

SCREW, SEMS DRILL #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

1218902-S

Kohler 12 189 02-S

SPARK ARRESTOR

Note: NOT ILLUSTRATED

$49.99

$

Usually ships in 2-5 days

0
