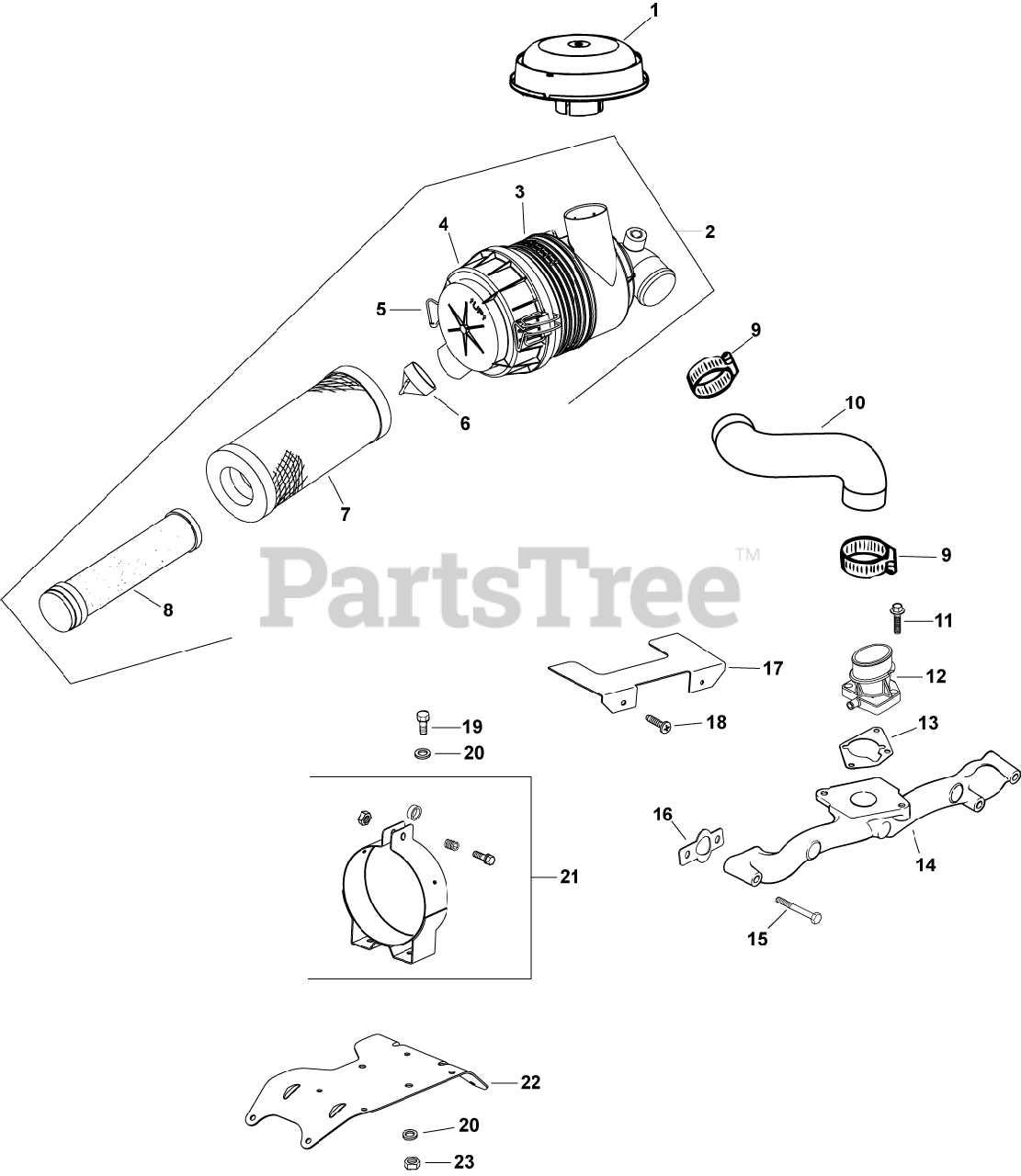

CH730-0062 - Kohler Command PRO Engine, Made for Doskocil, 23.5hp, 17.5kW Air Intake Group 10-24-191 Parts Diagram

Command PRO Engine, Made for Doskocil, 23.5hp, 17.5kW

Air Intake Group 10-24-191 Parts Diagram

  • Title
1

Kohler 25 324 02-S

HOOD, AIR CLEANER (5.25)-USE 25 324 04-S
(Superseded to 25 324 04-S)

$49.99

$

Usually ships in 2-5 days

0

2

Kohler 25 048 07-S

CLEANER, AIR-USE 25 048 17-S
(Superseded to 25 048 17-S)

$143.99

$

Usually ships in 2-5 days

0

3

Kohler 25 081 01-S

HOUSING, HD AIR CLEANER

$140.99

$

In Stock, only 1 left!

0

4

Kohler 25 096 06-S

COVER ASSEMBLY, AIR CLEANER

$87.99

$

In Stock, only 1 left!

0

5

Kohler 25 154 05-S

CLIP - USE 62 154 07-S
(Superseded to 62 154 07-S)

$13.99

$

In Stock, Qty 12

0

6

Kohler 24 462 07-S

VALVE, DUST EJECTOR

$21.99

$

In Stock, only 3 left!

0

7

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$32.99

$

In Stock, Qty 20+

0

8

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$32.99

$

In Stock, Qty 20+

0

9

Kohler 25 237 21-S

CLAMP, HOSE

$7.99

$

In Stock, only 1 left!

0

10

Kohler 24 326 71-S

HOSE, AIR CLEANER

$22.99

$

Usually ships in 2-5 days

0

11

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

12

Kohler 24 029 61-S

ADAPTER, AIR CLEANER -USE 24 029 82-S
(Superseded to 24 029 82-S)

$18.99

$

In Stock, only 2 left!

0

13

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

14

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

15

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

16

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

17

Kohler 24 314 29-S

SHIELD, DEBRIS

$20.99

$

Usually ships in 2-5 days

0

18

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, only 3 left!

0

19

Kohler M-651025-S

SCREW - USE 25 086 124-S
(Superseded to 25 086 124-S)

$2.49

$

In Stock, only 3 left!

0

20

Kohler X-25-73-S

WASHER, FLAT 1/4" (O.D. 1")

$3.99

$

Usually ships in 2-5 days

0

21

Kohler 25 126 02-S

BRACKET, AIR CLEANER-USE 24 126 191-S
(Superseded to 24 126 191-S)

$62.99

$

Usually ships in 2-5 days

0

22

Kohler 24 126 142-S

BRACKET, AIR CLEANER

$19.99

$

Usually ships in 2-5 days

0

23

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 2 left!

0
