CH730-0034 - Kohler Command PRO Engine, Made for Burkeen Mfg., 23.5hp, 17.5kW Ignition/ Charging Group 5-24-606 Parts Diagram

Command PRO Engine, Made for Burkeen Mfg., 23.5hp, 17.5kW

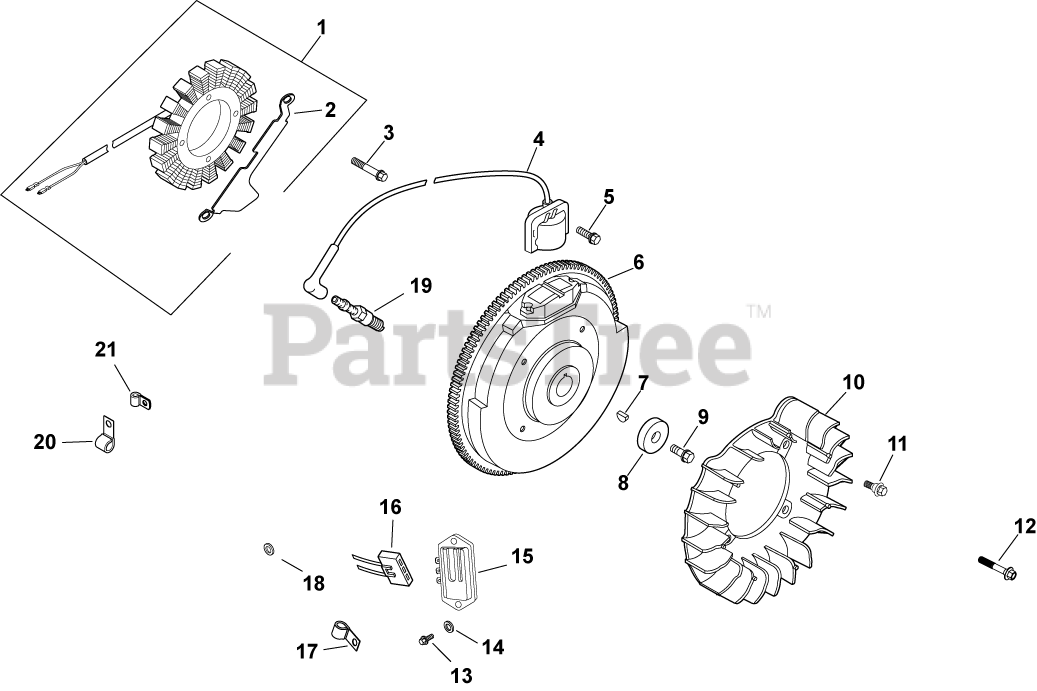

Ignition/ Charging Group 5-24-606 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 8

0

2

Kohler 24 126 139-S

BRACKET, STATOR WIRE

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$

$

Not available

5

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

6

Kohler 24 025 48-S

FLYWHEEL, PAINTED-USE 24 025 59-S
(Superseded to 24 025 59-S)

$

$

Not available

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 24 157 07-S

FAN (WITH HOLE)-USE 24 157 16-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, only 4 left!

0

11

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

12

Kohler M-639010-S

SCREW, FLG M6X1.0X10

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

14

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

15

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

16

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

17

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

18

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

19

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

20

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

21

Kohler 24 154 03-S

CLIP, CABLE - USE 24 154 10-S
(Superseded to 24 154 10-S)

$2.99

$

In Stock, only 2 left!

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2546807-S

Kohler 25 468 07-S

WASHER, FLAT 7/32"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2508691-S

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED

$44.99

$

Usually ships in 2-5 days

0

2417641-S

Kohler 24 176 41-S

LEAD, DUPLEX

Note: NOT ILLUSTRATED

$6.49

$

In Stock, only 2 left!

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 1 left!

0

2515506-S

Kohler 25 155 06-S

CONNECTOR

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0
