CH730-0029 - Kohler Command PRO Engine, Made for Encore, 23.5hp, 17.5kW Exhaust Group 11-24-42 Parts Diagram

Command PRO Engine, Made for Encore, 23.5hp, 17.5kW

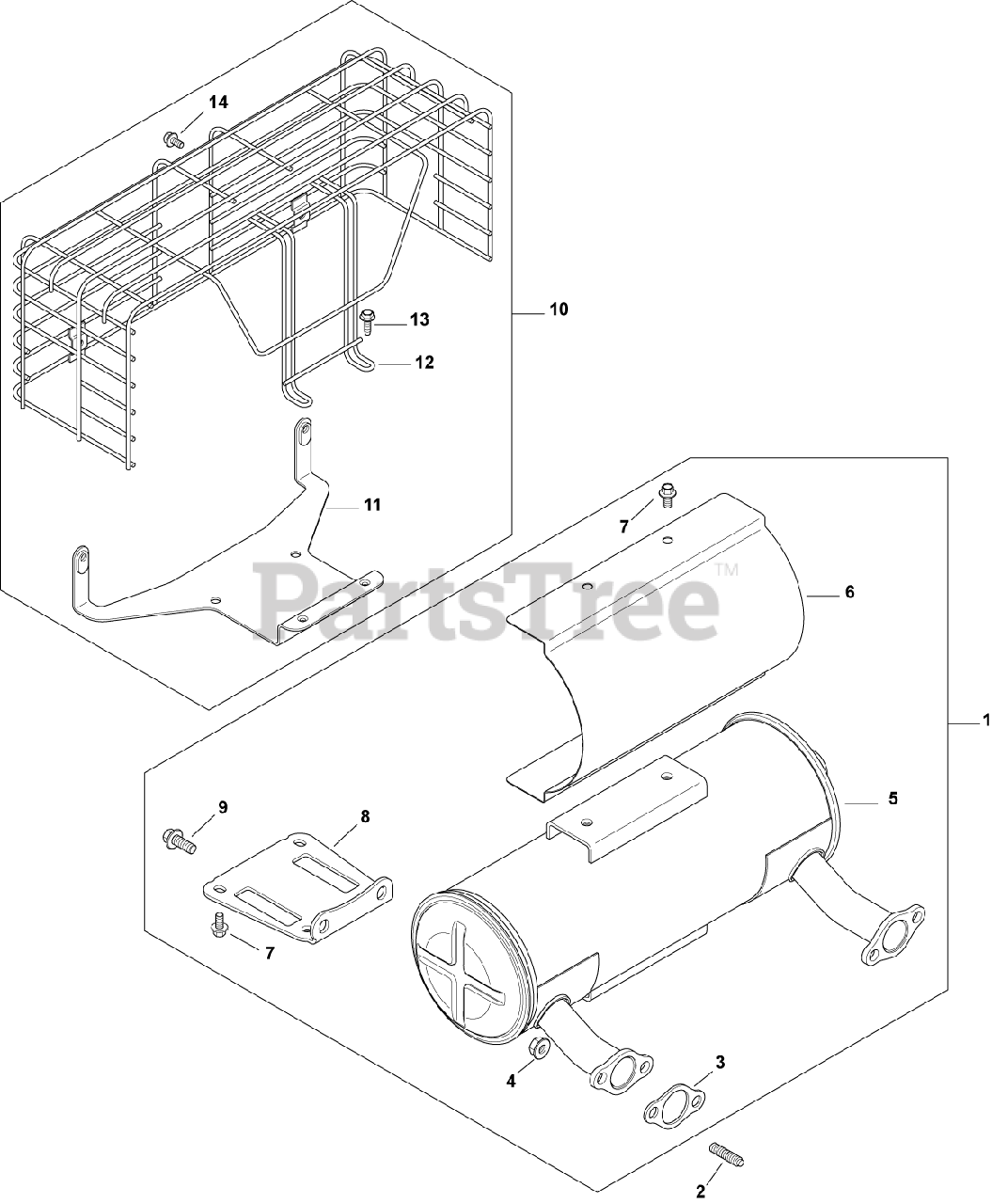

Exhaust Group 11-24-42 Parts Diagram

  • Title

1

Kohler 24 786 12-S

MUFFLER KIT, STARTER SIDE/STRAIGHT

$289.99

$

Usually ships in 2-5 days

0

2

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

3

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

4

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

5

Kohler 24 068 17-S

MUFFLER,STARTER SIDE-USE 24 068 59-S
(Superseded to 24 068 141-S)

$323.99

$

Usually ships in 2-5 days

0

6

Kohler 24 314 04-S

SHIELD, HEAT-USE 24 314 50-S
(Superseded to 24 314 50-S)

$40.99

$

In Stock, only 1 left!

0

7

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

8

Kohler 24 126 12-S

BRACKET, MUFFLER

$15.99

$

Usually ships in 2-5 days

0

9

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

10

Kohler 24 755 80-S

KIT, MUFFLER GUARD

$245.99

$

Usually ships in 2-5 days

0

11

Kohler 24 126 48-S

BRACKET, EXHAUST GUARD

$95.99

$

Usually ships in 2-5 days

0

12

Kohler 24 314 02-S

GUARD, MUFFLER

$153.99

$

Usually ships in 2-5 days

0

13

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

14

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0
