CH730-0028 - Kohler Command PRO Engine, Made for Mamo, 23.5hp, 17.5kW Blower Housing Group 6-24-322 Parts Diagram

Command PRO Engine, Made for Mamo, 23.5hp, 17.5kW

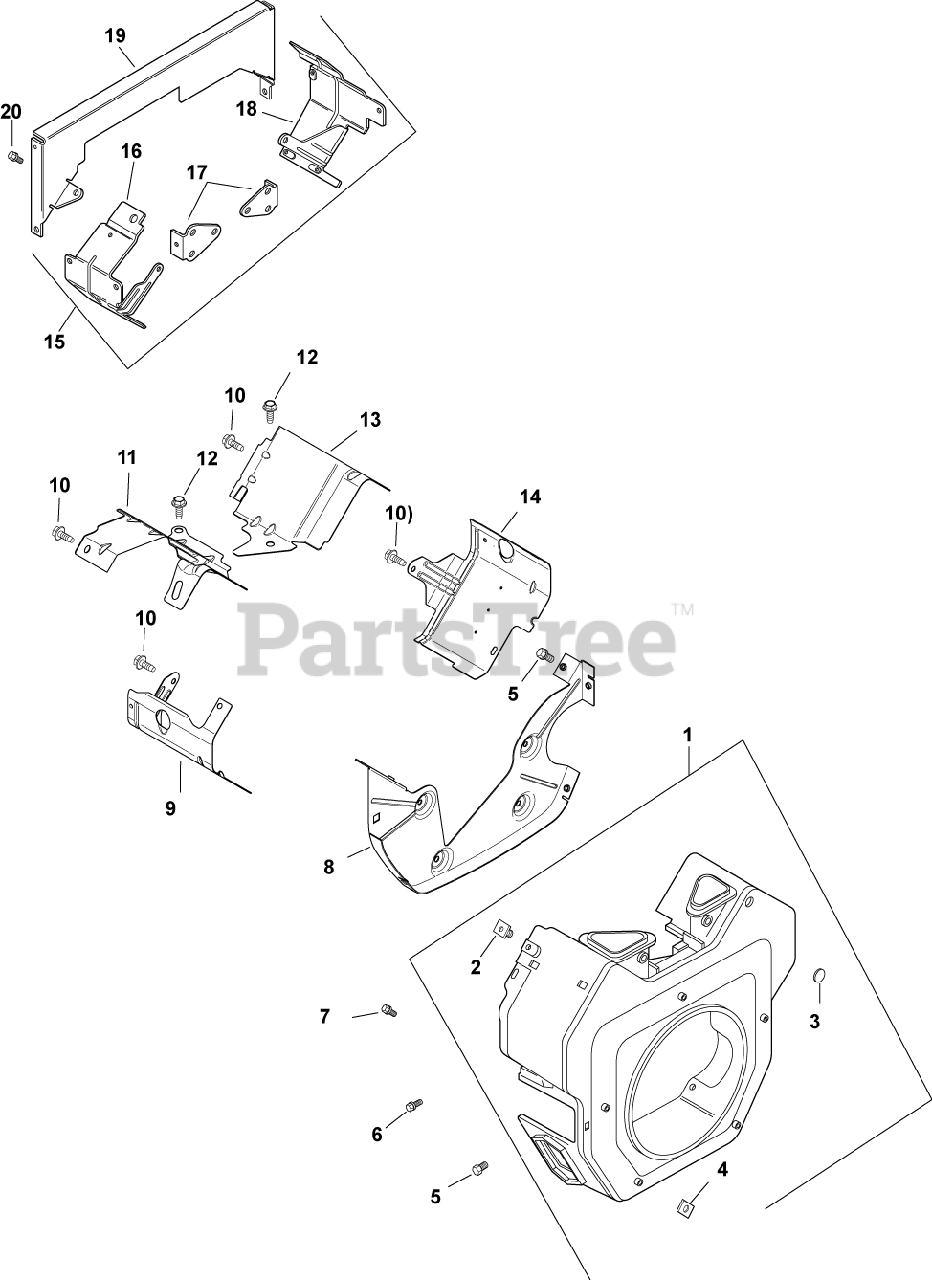

Blower Housing Group 6-24-322 Parts Diagram

  • Title

1

Kohler 24 027 189-S

KIT, BLOWER HOUSING ASSY-(#24027488S)
(Superseded to 24 027 488-S)

$178.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

4

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 13

0

5

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

6

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

$2.49

$

In Stock, Qty 15

0

7

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 24 146 55-S

PLATE, BACKING-USE 24 146 59-S
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 2 left!

0

9

Kohler 24 063 70-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 32 063 02-S)

$9.49

$

Usually ships in 2-5 days

0

10

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

11

Kohler 24 063 59-S

BAFFLE, VALLEY (CH)-USE 24 063 93-S
(Superseded to 32 063 03-S)

$6.49

$

In Stock, only 1 left!

0

12

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

13

Kohler 24 063 88-S

KIT, CYL BAFFEL #2 SIDE

$28.99

$

Usually ships in 2-5 days

0

14

Kohler 24 063 85-S

KIT, CYL BAFFEL #1 SIDE

$17.99

$

In Stock, only 1 left!

0

15

Kohler 24 755 14-S

KIT, "Q"DUCT"

$262.99

$

Usually ships in 2-5 days

0

16

Kohler 24 063 13-S

BAFFLE, DUCTED AIR-OIL FILTER

$61.99

$

Usually ships in 2-5 days

0

17

Kohler 24 126 04-S

BRACKET

$21.99

$

Usually ships in 2-5 days

0

18

Kohler 24 063 12-S

BAFFLE, DUCTED AIR-STARTER

$64.99

$

Usually ships in 2-5 days

0

19

Kohler 24 146 04-S

PLATE, BACKING

$55.99

$

Usually ships in 2-5 days

0

20

Kohler M-639010-S

SCREW, FLG M6X1.0X10

$2.49

$

Usually ships in 2-5 days

0

25086158-S

Kohler 25 086 158-S

SCREW, FLNG THD FRM M6X1.0X10 USE 25 086 406-S
(Superseded to 25 086 406-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 9

0

2508643-S

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
