CH730-0015 - Kohler Command PRO Engine, Made for B & H Mfg., 23.5hp, 17.5kW Exhaust Group 11-24-141 Parts Diagram

Command PRO Engine, Made for B & H Mfg., 23.5hp, 17.5kW

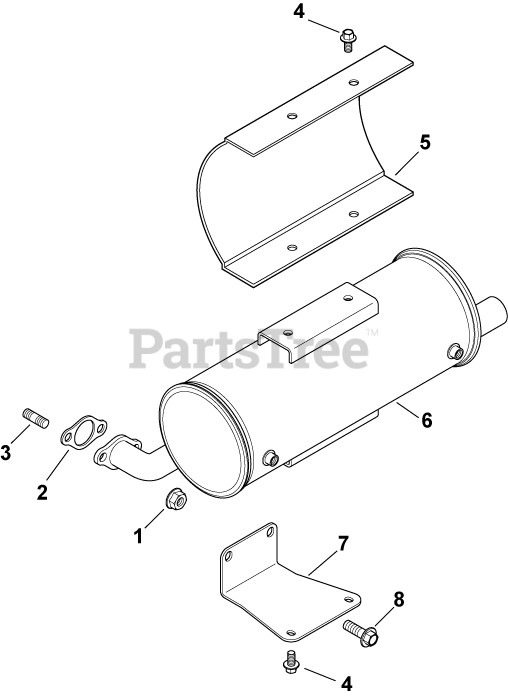

Exhaust Group 11-24-141 Parts Diagram

  • Title

1

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

2

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

3

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

4

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

5

Kohler 24 314 04-S

SHIELD, HEAT-USE 24 314 50-S
(Superseded to 24 314 50-S)

$40.99

$

In Stock, only 1 left!

0

6

Kohler 24 068 36-S

MUFFLER, O.F. SIDE OUTLET - USE 24 068 143-S
(Superseded to 24 068 143-S)

$303.99

$

Usually ships in 2-5 days

0

7

Kohler 24 126 90-S

BRACKET, MUFFLER-USE 24 126 192-S
(Superseded to 24 126 264-S)

$87.99

$

Usually ships in 2-5 days

0

8

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0
