CH730-0009 - Kohler Command PRO Engine, Made for Wood Mizer, 23.5hp, 17.5kW Ignition/ Charging Group 5-24-569 Parts Diagram

Command PRO Engine, Made for Wood Mizer, 23.5hp, 17.5kW

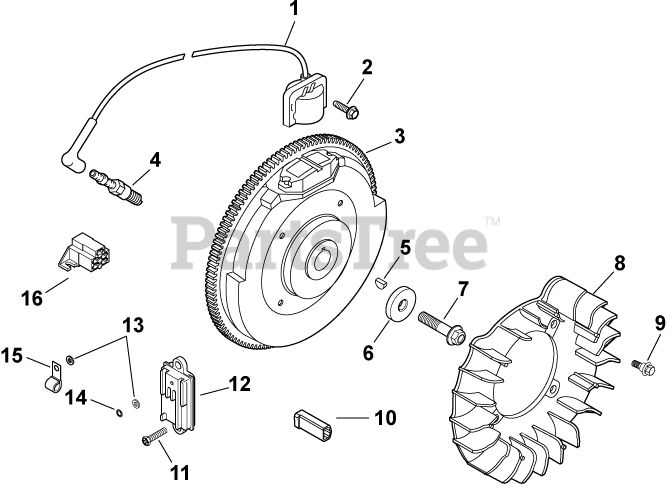

Ignition/ Charging Group 5-24-569 Parts Diagram

  • Title

1

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

2

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

3

Kohler 24 025 59-S

FLYWHEEL ASSEMBLY

$

$

Not available

4

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

5

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

6

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

7

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

8

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$46.99

$

Usually ships in 2-5 days

0

9

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

10

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

11

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 2 left!

0

12

Kohler 25 096 04-S

COVER

$10.99

$

Usually ships in 2-5 days

0

13

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

14

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

15

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

16

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

2417640-S

Kohler 24 176 40-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$

$

Not available

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
