CH640-3076 - Kohler Command PRO Engine, Made for Beijing Denoh, 20.5hp, 15.3kW Crankcase Group 2-24-268 Parts Diagram

Command PRO Engine, Made for Beijing Denoh, 20.5hp, 15.3kW

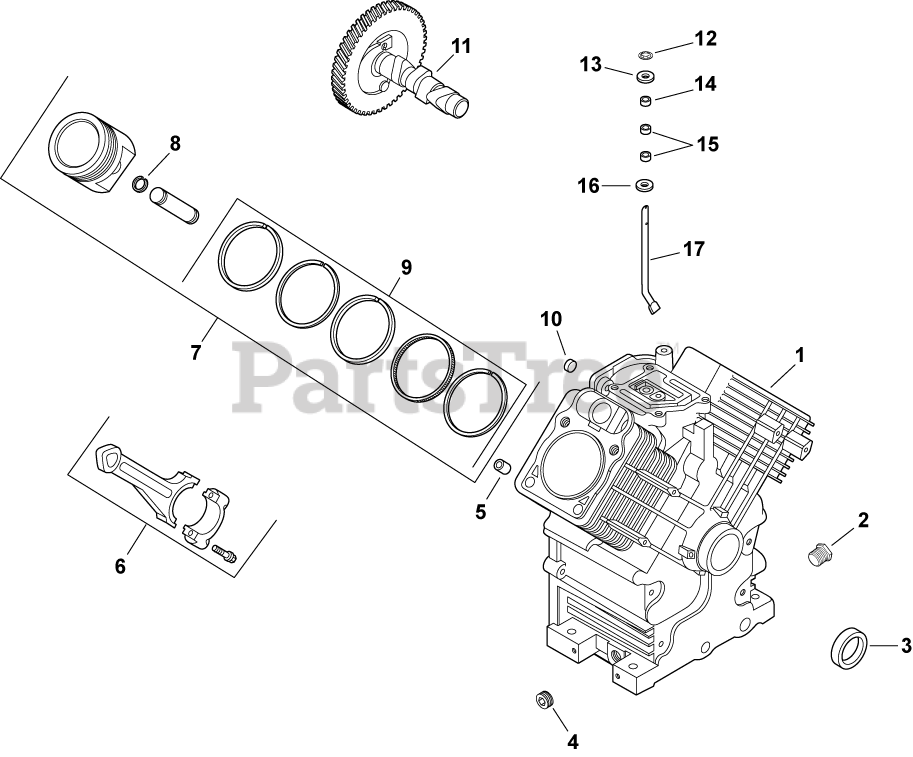

Crankcase Group 2-24-268 Parts Diagram

  • Title

1

CRANKCASE

Note: (USE: SHORT BLOCK)

$

$

Not available

2

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

3

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

4

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

5

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

6

Kohler 24 067 28-S

ROD, ASSY CONNECTING (STD)-(#2406730S)
(Superseded to 25 067 04-S)

$59.99

$

In Stock, Qty 6

0

2406729-S

Kohler 24 067 29-S

ROD ASSY, CONNECTING U/S (.010”) (.25 mm) -USE 24 067 31-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

7

Kohler 24 874 38-S

PISTON W/RINGS (STYLE A)(STD) USE 24 874 46-S
(Superseded to 24 874 46-S)

$

$

Not available

2487439-S

Kohler 24 874 39-S

KIT, PISTON-USE 24 874 47-S
(Superseded to 24 874 47-S)

$

$

Not available

2487440-S

Kohler 24 874 40-S

PISTON W/RINGS (STYLE A)(.25)-USE 24 874 48-S
(Superseded to 24 874 48-S)

$

$

Not available

2487441-S

Kohler 24 874 41-S

PISTON W/RINGS (STYLE A(.50)-USE 24 874 49-S
(Superseded to 24 874 49-S)

$

$

Not available

8

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

9

Kohler 24 108 22-S

RING SET (STD)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available

2410823-S

Kohler 24 108 23-S

RING SET (.08)1.5MM TOP RING THICKNESS - DISCONTINUED (STYLE A)

$

$

Not available

2410824-S

Kohler 24 108 24-S

RING SET (.25)1.5MM TOP RING THICKNESS - DISCONTINUED, USE PISTON ASSEMBLY (STYLE A)

$

$

Not available

2410825-S

Kohler 24 108 25-S

RING SET (.50)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available

10

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 3 left!

0

11

Kohler 24 010 06-S

KIT, CAMSHAFT

$354.99

$

In Stock, only 1 left!

0

12

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

In Stock, only 2 left!

0

13

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

14

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 10

0

15

Kohler 28 030 05-S

BEARING, NEEDLE

$12.99

$

Usually ships in 2-5 days

0

16

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 6

0

17

Kohler 24 144 39-S

SHAFT, GOVERNOR CROSS

$41.99

$

Usually ships in 2-5 days

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0
