CH620-3169 - Kohler Command PRO Engine, Made for Gardner, 19hp, 14.2kW 08 Fuel System Parts Diagram

Command PRO Engine, Made for Gardner, 19hp, 14.2kW

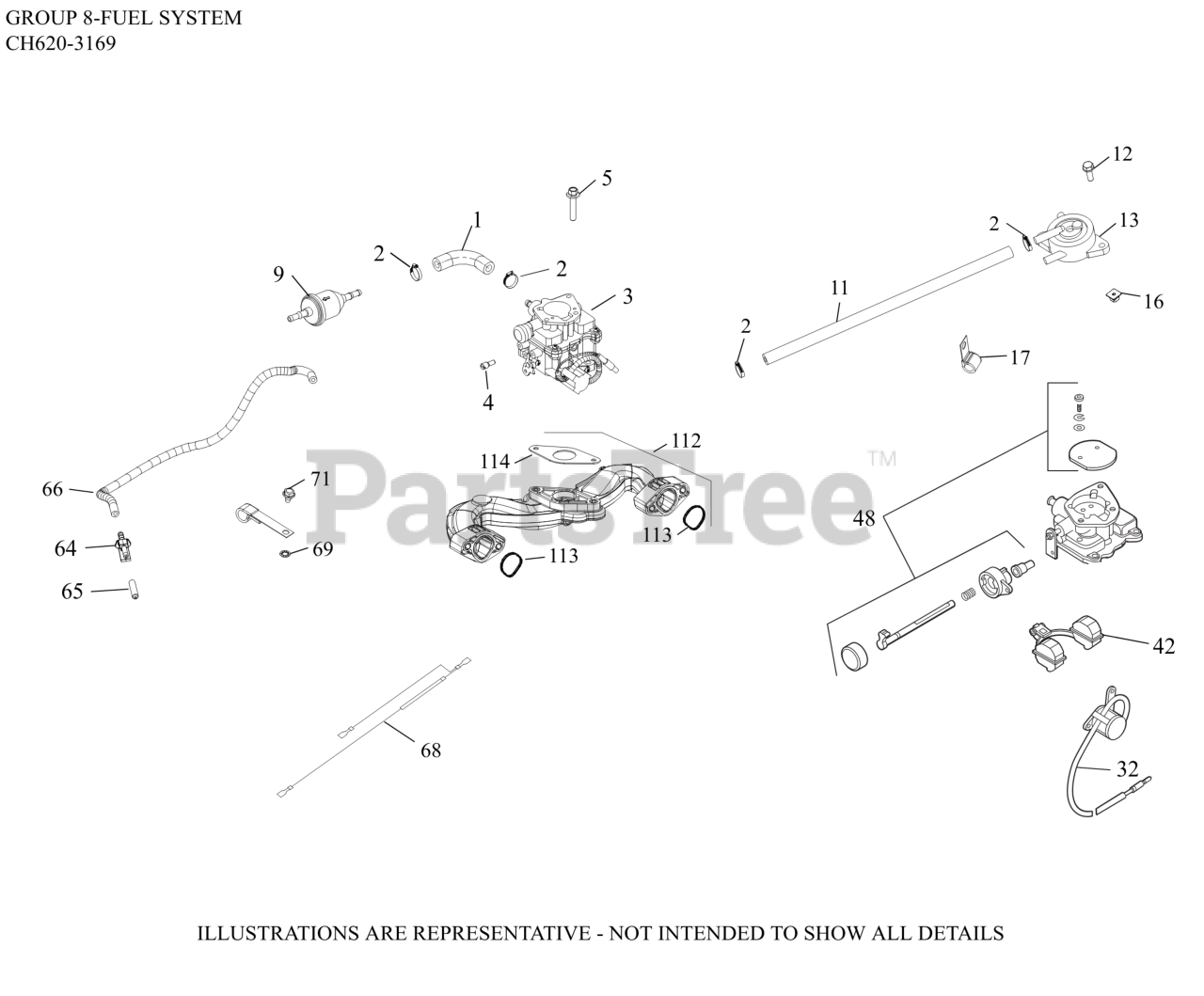

08 Fuel System Parts Diagram

  • Title
1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 286-S

KIT, CARBURETOR COMPLETE

$411.99

$

Usually ships in 2-5 days

0

4

Kohler 24 086 05-S

SCREW, THROTTLE STOP

$4.99

$

Usually ships in 2-5 days

0

5

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

9

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

11

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

In Stock, only 1 left!

0

12

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

13

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 14

0

16

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 9

0

17

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

In Stock, only 2 left!

0

32

Kohler 24 757 01-S

KIT, SOLENOID

$227.99

$

In Stock, only 1 left!

0

42

Kohler 24 757 02-S

KIT, REPAIR FLOAT

$133.99

$

Usually ships in 2-5 days

0

48

Kohler 24 757 07-S

KIT, REPAIR CHOKE

$95.99

$

Usually ships in 2-5 days

0

64

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

65

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

66

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"- (#24326143S)
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 1 left!

0

68

Kohler 24 518 24-S

LEAD, GROUND

$2.49

$

In Stock, only 1 left!

0

69

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

71

Kohler 25 086 406-S

SCREW, THREAD FORMING

$2.49

$

In Stock, Qty 9

0

112

Kohler 24 164 275-S

INTAKE MANIFOLD W/GASKETS

$70.99

$

Usually ships in 2-5 days

0

113

Kohler 24 153 37-S

O-RING, INTAKE PORT

$3.99

$

Usually ships in 2-5 days

0

114

Kohler 24 041 92-S

GASKET, CARBURETOR (PIM, CH)

$5.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 755 125-S

KIT, HIGH ALT (4000-8000 FT)

$55.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 755 201-S

KIT, HIGH ALT (8,000+ FT)

$59.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

$112.99

$

Usually ships in 2-5 days

0
