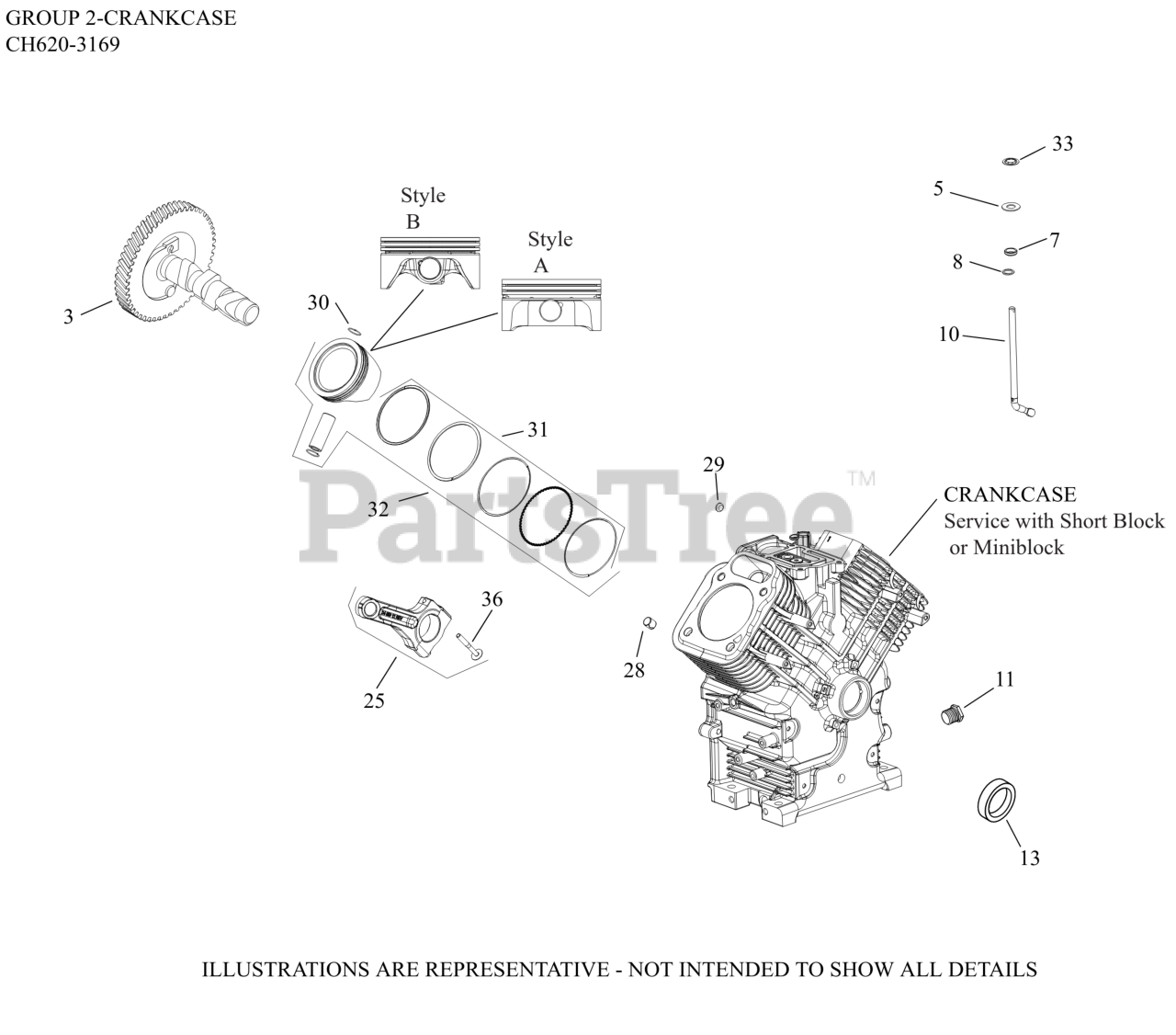

CH620-3169 - Kohler Command PRO Engine, Made for Gardner, 19hp, 14.2kW 02 CrankCase Parts Diagram

Command PRO Engine, Made for Gardner, 19hp, 14.2kW

02 CrankCase Parts Diagram

  • Title

3

Kohler 24 012 29-S

KIT, CAMSHAFT

$153.99

$

In Stock, only 1 left!

0

5

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

7

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

8

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

10

Kohler 24 144 39-S

SHAFT, GOVERNOR CROSS

$41.99

$

Usually ships in 2-5 days

0

11

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

13

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

25

Kohler 25 067 04-S

ROD, ASSEMBLY CONNECTING

$59.99

$

In Stock, only 4 left!

0

28

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

29

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

30

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

31

Kohler 24 108 26-S

RING SET (STD) STYLE B

$150.99

$

Usually ships in 2-5 days

0

31

Kohler 24 108 27-S

RING SET (.08) STYLE B

$146.99

$

Usually ships in 2-5 days

0

31

Kohler 24 108 28-S

RING SET (.25) STYLE B

$146.99

$

Usually ships in 2-5 days

0

31

Kohler 24 108 29-S

RING SET (.50) STYLE B

$146.99

$

Usually ships in 2-5 days

0

32

Kohler 24 874 54-S

KIT, PISTON (STD) STYLE B

$250.99

$

In Stock, only 3 left!

0

32

Kohler 24 874 55-S

KIT, PISTON (.08) STYLE B-(#DSC)

$

$

Not available

32

Kohler 24 874 56-S

KIT, PISTON (.25) STYLE B

$289.99

$

Usually ships in 2-5 days

0

32

Kohler 24 874 57-S

KIT, PISTON (.50) STYLE B

$289.99

$

Usually ships in 2-5 days

0

33

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

36

Kohler 25 086 452-S

KIT, ROD BOLTS-(#25086677S)
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 3 left!

0
