CH620-3139 - Kohler Command PRO Engine, Made for Kohler China, 19hp, 14.2kW Fuel System Group 8-24-1125 CH18-750 Parts Diagram

Command PRO Engine, Made for Kohler China, 19hp, 14.2kW

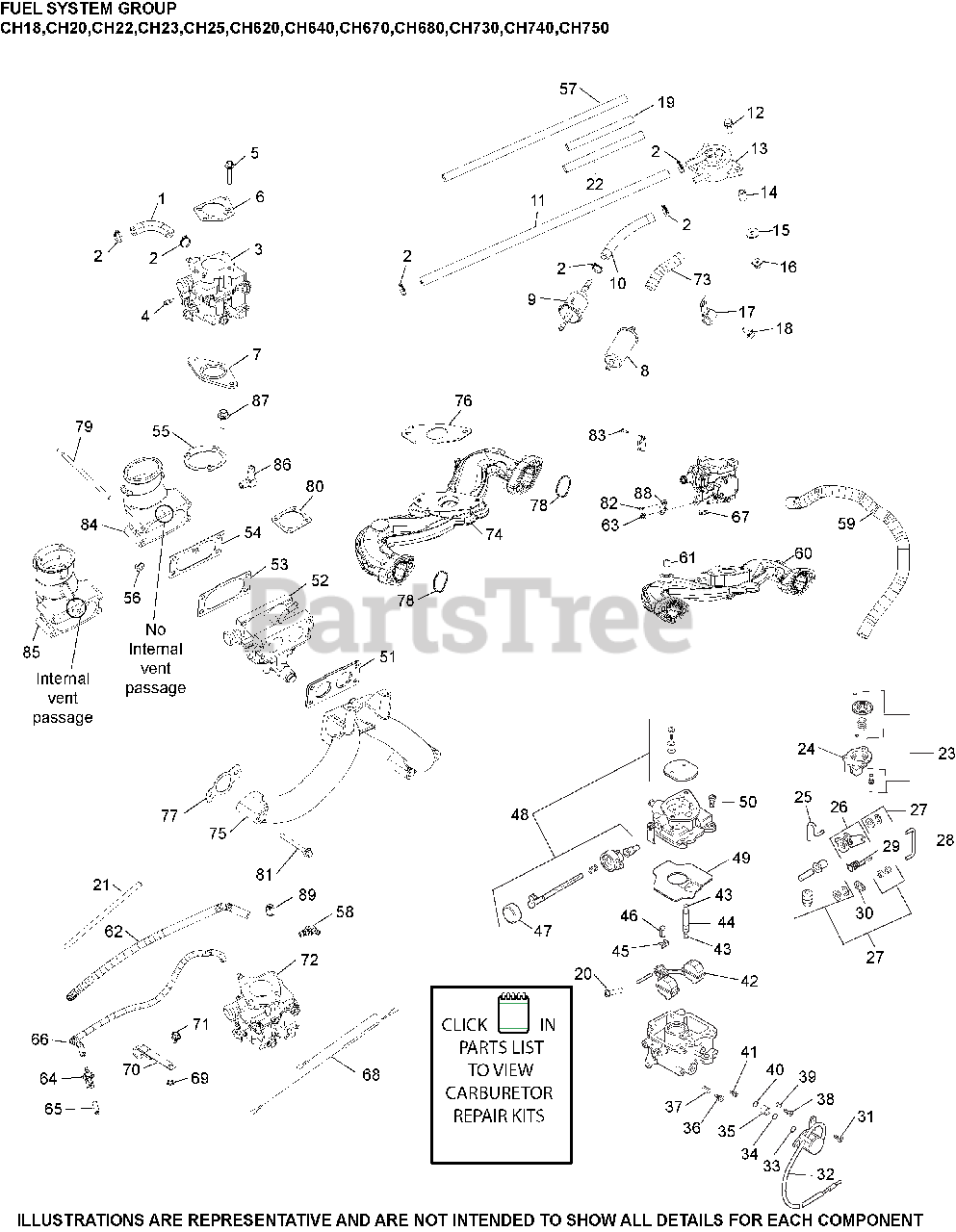

Fuel System Group 8-24-1125 CH18-750 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

3

Kohler 24 853 59-S

KIT, CARBURETOR W/GASKETS
(Superseded to 24 853 311-S)

$288.99

$

In Stock, only 1 left!

0

4

Kohler 24 086 05-S

SCREW, THROTTLE STOP

$4.99

$

Usually ships in 2-5 days

0

5

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

6

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

9

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

32

Kohler 24 757 01-S

KIT, SOLENOID

$227.99

$

In Stock, only 1 left!

0

42

Kohler 24 757 02-S

KIT, REPAIR FLOAT

$133.99

$

Usually ships in 2-5 days

0

48

Kohler 24 757 07-S

KIT, REPAIR CHOKE

$95.99

$

In Stock, only 1 left!

0

62

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.49

$

Usually ships in 2-5 days

0

64

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 3 left!

0

65

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

66

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"
(Superseded to 24 326 143-S)

$5.49

$

In Stock, only 1 left!

0

74

Kohler 24 164 93-S

KIT, INTAKE MANIFOLD
(Superseded to 24 164 276-S)

$184.99

$

Usually ships in 2-5 days

0

76

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 7

0

78

Kohler 24 153 27-S

O-RING, INTAKE PORT

$3.99

$

In Stock, Qty 8

0
