CH5-1535 - Kohler Command PRO Engine, Made for Emglo Products, 5hp Air Intake/Filtration (TP-2356-A) Rev 10/25/2006 Parts Diagram

Command PRO Engine, Made for Emglo Products, 5hp

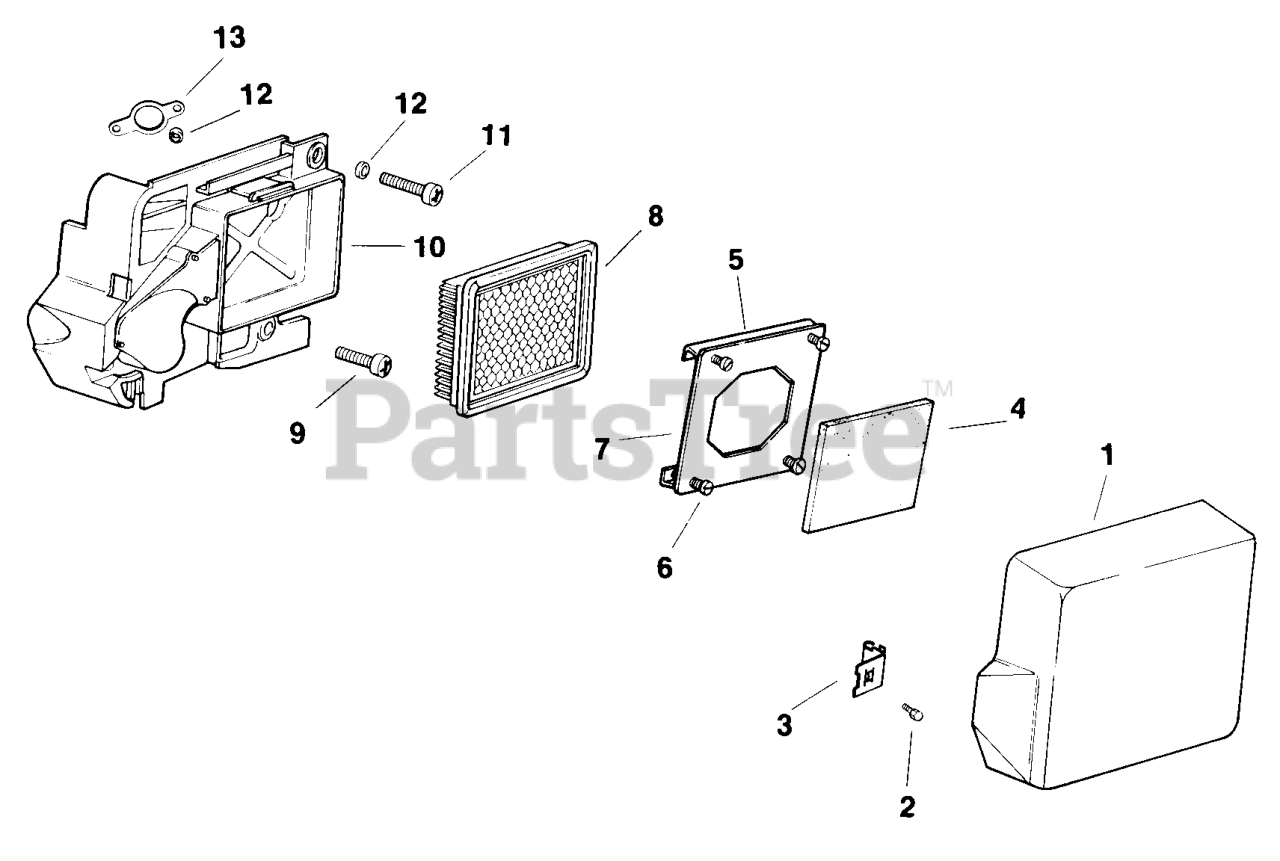

Air Intake/Filtration (TP-2356-A) Rev 10/25/2006 Parts Diagram

  • Title

1

Kohler 15 096 02-S

COVER - DISCONTINUED

$

$

Not available

2

Kohler 15 086 07-S

SCREW

$13.99

$

Usually ships in 2-5 days

0

3

Kohler 15 154 01-S

CLIP

$5.49

$

Usually ships in 2-5 days

0

4

Kohler 15 083 05-S

PRE-CLEANER -DISCONTINUED

$9.99

$

Usually ships in 2-5 days

0

5

Kohler 15 126 05-S

BRACKET - DISCONTINUED

$

$

Not available

6

Kohler M-0539020

Screw, bracket retainer M5-20

$0.99

$

Usually ships in 2-5 days

0

7

Kohler 15 018 05-S

RETAINER - DISCONTINUED

$

$

Not available

8

Kohler 15 083 01-S

ELEMENT

$16.99

$

Usually ships in 2-5 days

0

9

Kohler SM-0643030

Screw, A/C base mounting M6x1.0x30.5
(Superseded to M-643030-S)

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 15 094 03-S

BASE - DISCONTINUED

$

$

Not available

11

Kohler SM-0643035

Screw, A/C base mounting M6x1.0x35.5

$

$

Not available

12

Kohler 25 112 04-S

SPACER

$4.99

$

Usually ships in 2-5 days

0

13

Kohler 15 041 02-S

GASKET, CARBURETOR

$2.49

$

In Stock, only 3 left!

0

1511312-S

Kohler 15 113 12-S

DECAL - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available
