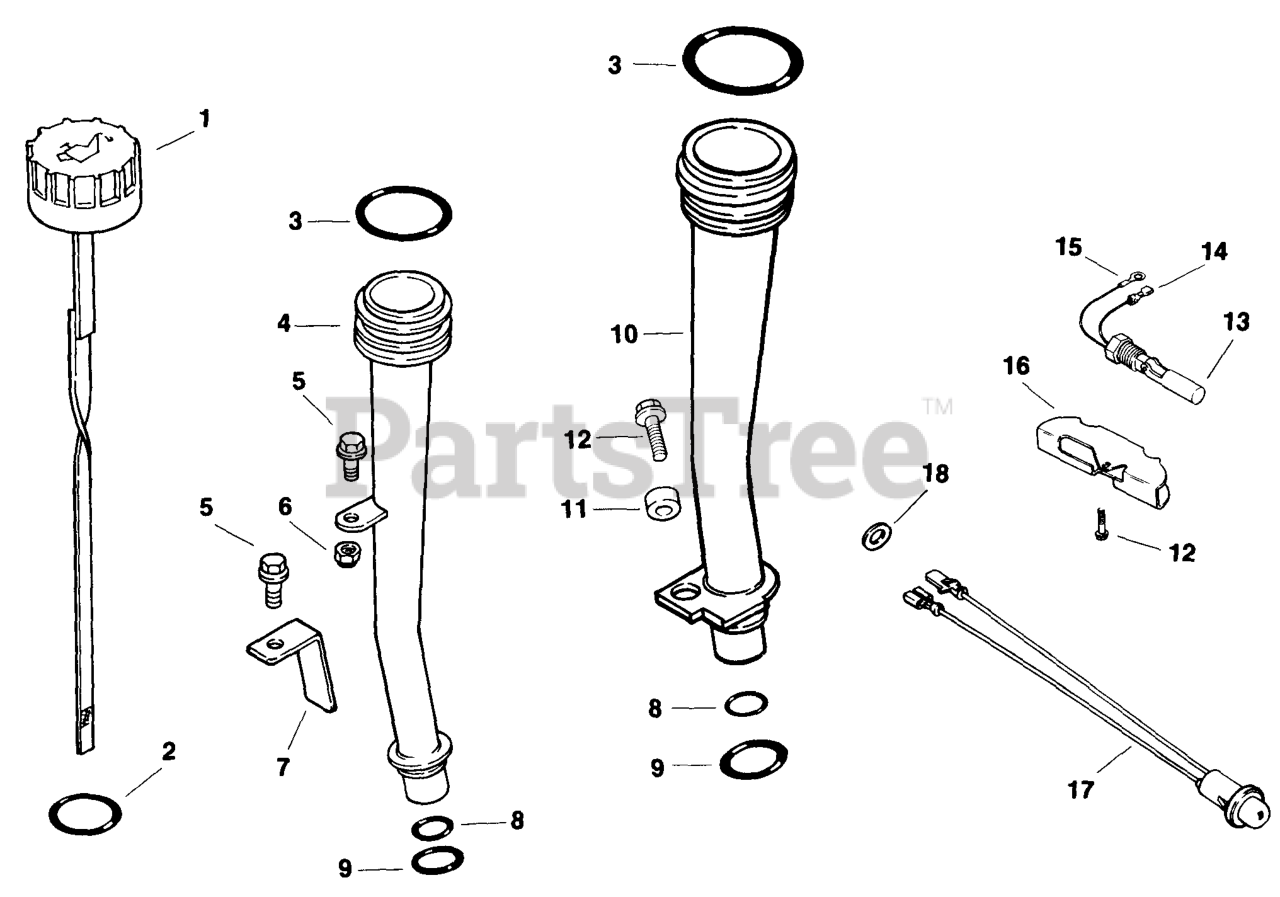

CH5-1527 - Kohler Command PRO Engine, Made for Speeflo, 5hp Oil Pan/Lubrication 3-14-10 (TP-2356-A) Rev 10/26/2006 Parts Diagram

Command PRO Engine, Made for Speeflo, 5hp

Oil Pan/Lubrication 3-14-10 (TP-2356-A) Rev 10/26/2006 Parts Diagram

  • Title

3

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 9

0

10

Kohler 15 123 02-S

TUBE - DISCONTINUED

$

$

Not available

11

Kohler 25 431 01-S

SPACER

Note: After Serial No. 1925700007

$7.49

$

In Stock, only 1 left!

0

12

Kohler M-0545016

SCREW - USE M-545016
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

13

Kohler 15 099 02-S

SWITCH, OIL LEVEL - DISC.

Note: Includes 14,15

$

$

Not available

14

Kohler 15 452 01-S

TERMINAL

$4.49

$

Usually ships in 2-5 days

0

15

Kohler 25 452 04-S

TERMINAL - DISCONTINUED

$

$

Not available

16

Kohler 15 063 06-S

BAFFLE, OIL SENTRY - DISC.

$

$

Not available

17

Kohler 25 352 06-S

LIGHT, INDICATOR

Note: After Serial No. 1926800017

$15.99

$

Usually ships in 2-5 days

0

18

Kohler X-22-16-S

WASHER,INT EXT TOOTH LOCK 5/16"

$3.99

$

Usually ships in 2-5 days

0

1551811-S

Kohler 15 518 11-S

LEAD - DISCONTINUED

Note: After Serial No. 1926800017; NOT ILLUSTRATED

$

$

Not available

2511305-S

Kohler 25 113 05-S

DECAL, OIL SENTRY - (#DSC)

Note: NOT ILLUSTRATED

$

$

Not available
