CH5-1521 - Kohler Command PRO Engine, Basic Version, 5hp Fuel System - Tank (TP-2356-A) Rev 10/26/2006 Parts Diagram

Command PRO Engine, Basic Version, 5hp

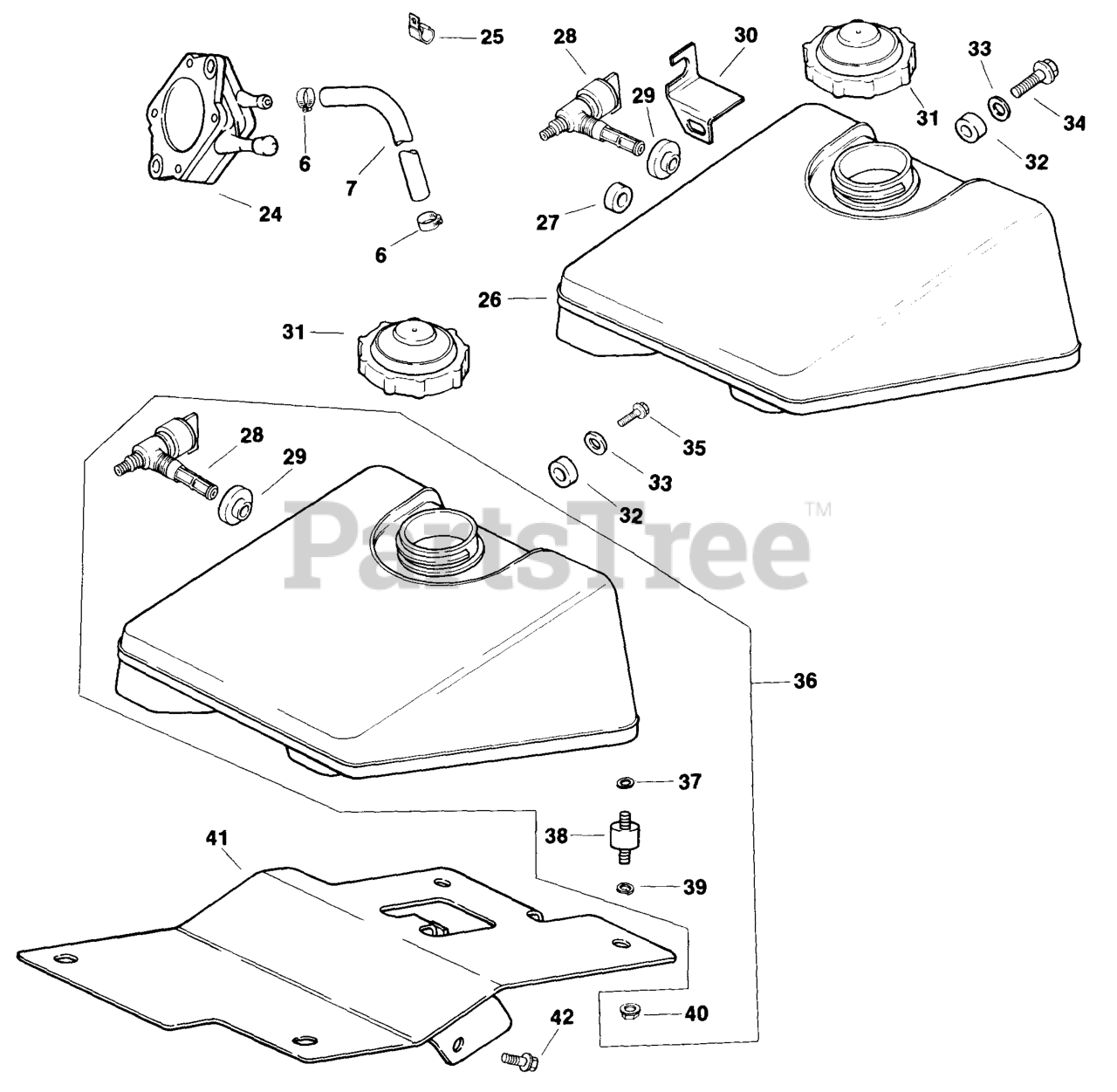

Fuel System - Tank (TP-2356-A) Rev 10/26/2006 Parts Diagram

  • Title

28

Kohler 25 462 03-S

VALVE, FUEL SHUT-OFF

$26.99

$

In Stock, only 1 left!

0

29

Kohler 25 313 01-S

BUSHING, FUEL TANK

$5.99

$

In Stock, only 3 left!

0

31

Kohler 25 173 08-S

USE 25 173 20-S FUEL TANK CAP
(Superseded to 25 173 20-S)

$34.99

$

Usually ships in 2-5 days

0

34

Kohler SM-0839025

Screw, tank mounting M8x1.25x25.5

Note: Before Serial No. 2027600017

$1.49

$

Usually ships in 2-5 days

0

36

Kohler 15 755 07-S

KIT, FUEL TANK - DISC.

Note: Includes 28,29,37-40

$

$

Not available

37

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

38

Kohler 15 366 02-S

MOUNT, ISOLATION

$16.99

$

Usually ships in 2-5 days

0

39

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

40

Kohler X-799-1-S

PALNUT, 1/4-20

$3.99

$

Usually ships in 2-5 days

0

41

Kohler 15 126 12

BRACKET - USE 15 126 16
(Superseded to 15 126 16-S)

$

$

Not available

42

Kohler M-0839020

Screw, tank bracket - starter end
(Superseded to M-839020-S)

$2.49

$

In Stock, only 2 left!

0

2511313

Kohler 25 113 13

DECAL - USE 15 113 16
(Superseded to 15 113 16)

$

$

Not available

1511313-S

Kohler 15 113 13-S

DECAL,FUEL VALVE SHUT-OFF-DISC.

$

$

Not available
