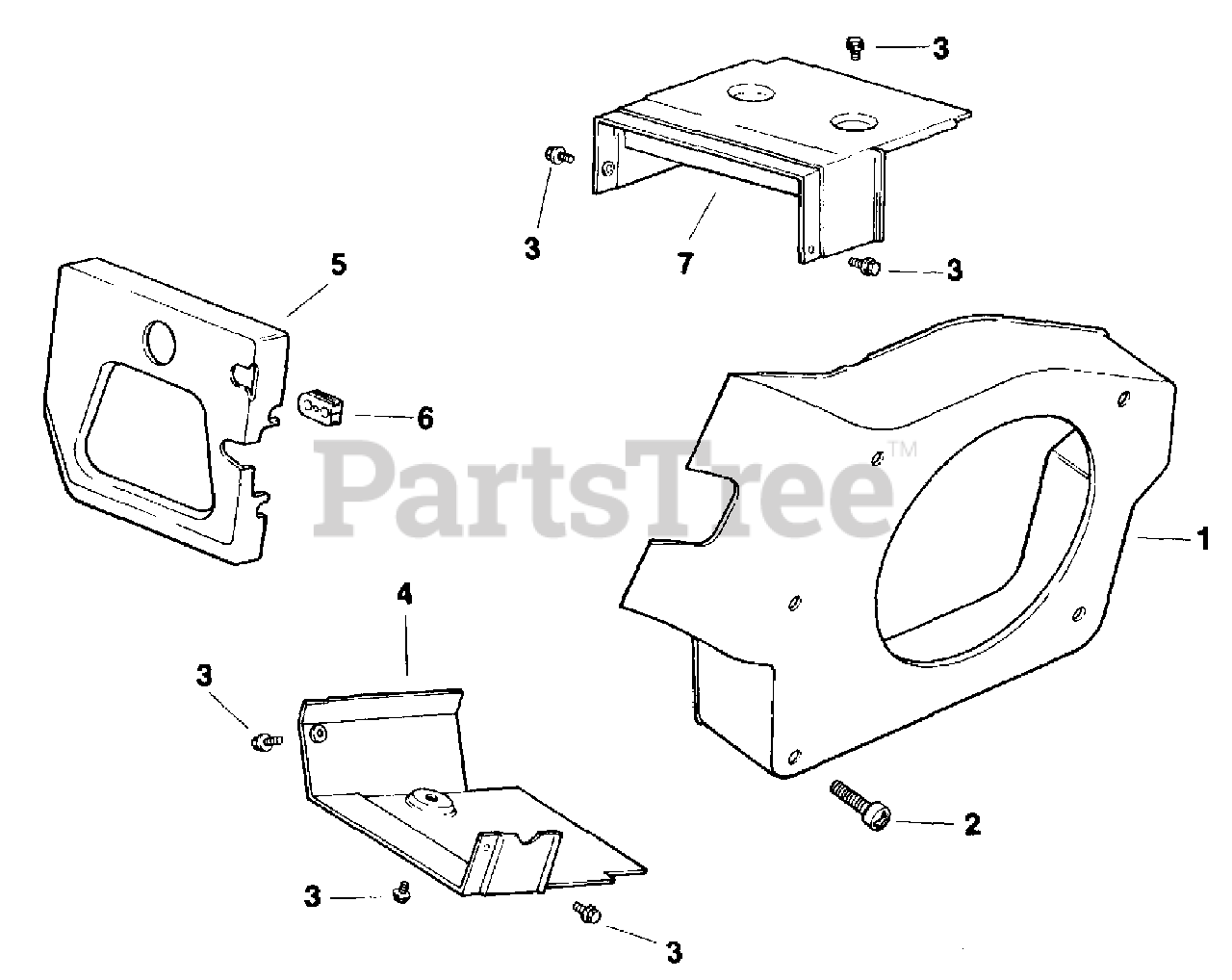

CH5-1510 - Kohler Command PRO Engine, Basic Version, 5hp Blower Housing & Baffles (TP-2356-A) Rev 10/25/2006 Parts Diagram

Command PRO Engine, Basic Version, 5hp

Blower Housing & Baffles (TP-2356-A) Rev 10/25/2006 Parts Diagram

  • Title
1

Kohler 15 027 03

HOUSING - USE 15 027 04
(Superseded to 15 027 04-S)

$

$

Not available

2

Kohler SM-0643025

Screw, pan head M6x1.0x25.5

$

$

Not available

3

Kohler SM-0545010

Screw, baffle mounting M5x0.8x10

$

$

Not available

4

Kohler 15 063 02

BAFFLE - USE 15 063 07
(Superseded to 15 063 07-S)

$

$

Not available

5

Kohler 15 063 01-S

BAFFLE - DISCONTINUED

$

$

Not available

6

$

$

Not available

7

Kohler 15 063 04-S

BAFFLE - DISCONTINUED

$

$

Not available

1511302-S

Kohler 15 113 02-S

DECAL, HP - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available
