CH440-3336 - Kohler Command PRO Engine, Made for Miller Electric, 14hp, 10.5kW 09 Engine Controls Parts Diagram

Command PRO Engine, Made for Miller Electric, 14hp, 10.5kW

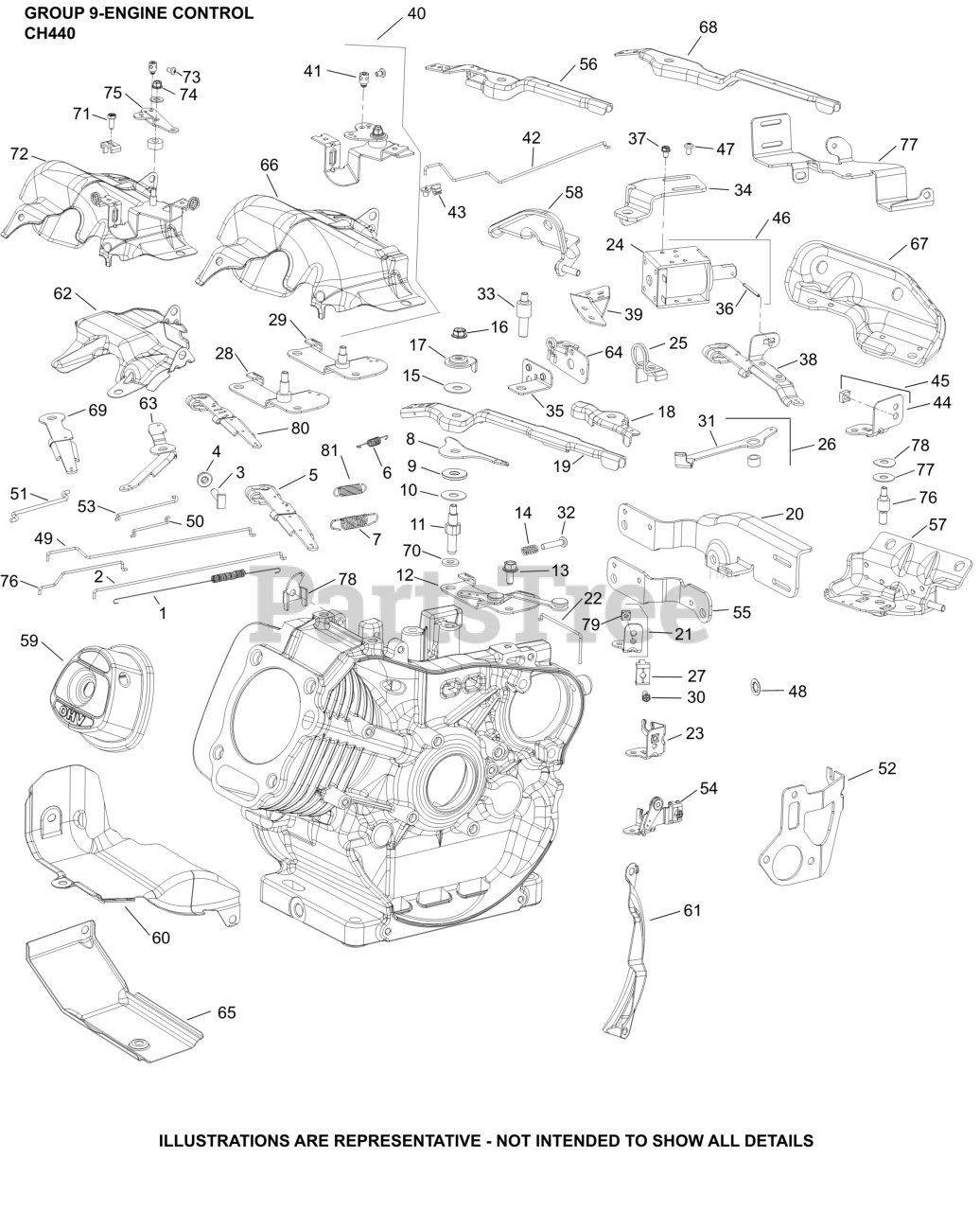

09 Engine Controls Parts Diagram

  • Title

1

Kohler 17 089 59-S

SPRING, LINKAGE

$5.99

$

In Stock, Qty 10

0

2

Kohler 17 079 03-S

LINKAGE, GOVERNOR

$3.49

$

In Stock, Qty 11

0

3

Kohler 25 086 166-S

SCREW, RECTANGLE HEAD (M6)

$2.49

$

In Stock, only 1 left!

0

4

Kohler 14 100 08-S

NUT, HEX FLANGE (M6) - USE 14 100 16-S
(Superseded to 14 100 16-S)

$2.49

$

In Stock, only 4 left!

0

5

Kohler 17 090 64-S

LEVER, GOVERNOR

$8.49

$

In Stock, only 1 left!

0

7

Kohler 17 089 63-S

SPRING, GOVERNOR

$5.99

$

Usually ships in 2-5 days

0

8

Kohler 17 090 47-S

LEVER, FIXED SPEED

$4.99

$

Usually ships in 2-5 days

0

14

Kohler 17 089 36-S

SPRING, COMPRESSION

$5.49

$

Usually ships in 2-5 days

0

16

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, only 2 left!

0

27

Kohler 17 237 12-S

CLAMP, CABLE

$2.49

$

Usually ships in 2-5 days

0

32

Kohler 25 086 270-S

SCREW, SPEED ADJUSTING

$2.49

$

Usually ships in 2-5 days

0

32

Kohler 25 086 652-S

SCREW SPEED ADJUSTING

$2.49

$

Usually ships in 2-5 days

0

33

Kohler 17 072 42-S

STUD, CONTROL LEVER

$3.99

$

Usually ships in 2-5 days

0

34

Kohler 17 126 199-S

BRACKET, IDLE DOWN SOLENOID

$13.99

$

Usually ships in 2-5 days

0

35

Kohler 17 126 209-S

BRACKET, CONTROL

$9.99

$

Usually ships in 2-5 days

0

38

Kohler 17 090 75-S

LEVER ASSEMBLY, GOV. IDLE PULL DOWN

$8.99

$

Usually ships in 2-5 days

0

44

Kohler 17 126 200-S

BRACKET, REMOTE CHOKE

$5.99

$

Usually ships in 2-5 days

0

45

Kohler 17 126 201-S

BRACKET REMOTE, CHOKE ASSEMBLY

$5.99

$

Usually ships in 2-5 days

0

46

Kohler 17 435 07-S

KIT, SOLENOID IDLE

$158.99

$

Usually ships in 2-5 days

0

47

Kohler 25 086 698-S

SCREW, SET HEX FLANGE HEAD

$2.49

$

Usually ships in 2-5 days

0
