CH440-3157 - Kohler Command PRO Engine, Made for Jiangsu Sumec, 14hp, 10.5kW Ignition/Charging Group Parts Diagram

Command PRO Engine, Made for Jiangsu Sumec, 14hp, 10.5kW

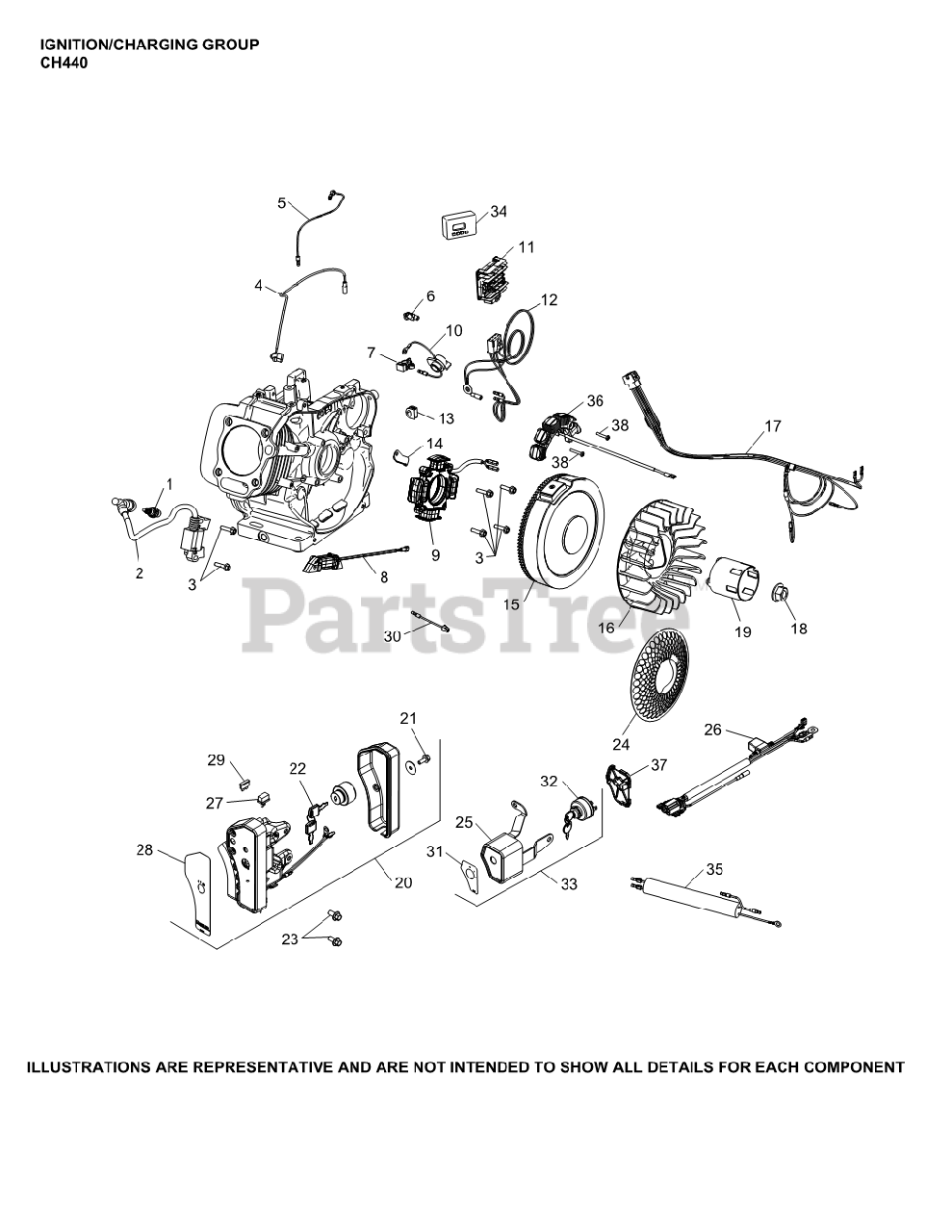

Ignition/Charging Group Parts Diagram

  • Title

1

Kohler 25 132 19-S

SPARK PLUG

$13.99

$

In Stock, only 3 left!

0

2

Kohler 17 584 03-S

MODULE, IGNITION

$60.99

$

In Stock, only 1 left!

0

3

Kohler 25 086 186-S

SCREW, M6 X 25 USE 25 086 436-S
(Superseded to 25 086 436-S)

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 17 518 06-S

LEAD, GROUND TO KILL

$7.99

$

Usually ships in 2-5 days

0

14

Kohler 17 126 69-S

BRACKET, STATOR WIRE

$4.49

$

Usually ships in 2-5 days

0

15

Kohler 17 025 32-S

FLYWHEEL ASSY ELECTRIC START (CH440)

$166.99

$

Usually ships in 2-5 days

0

16

Kohler 17 157 05-S

FAN, FLYWHEEL

$16.99

$

Usually ships in 2-5 days

0

18

Kohler 17 100 24-S

NUT, FLYWHEEL

$7.99

$

Usually ships in 2-5 days

0

19

Kohler 17 109 07-S

CUP, STARTER DRIVE

$27.99

$

Usually ships in 2-5 days

0

21

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

$2.49

$

In Stock, only 1 left!

0

36

Kohler 17 085 15-S

STATOR ASSEMBLY, 1 AMP

$59.99

$

Usually ships in 2-5 days

0

38

Kohler 25 086 373-S

SCREW, STATOR MOUNTING (CKY)

$2.49

$

Usually ships in 2-5 days

0

25086301-S

Kohler 25 086 301-S

SCREW, COIL BRACKET (CKY)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1711212-S

Kohler 17 112 12-S

SPACER

Note: NOT ILLUSTRATED

$

$

Not available
