CH440-3021 - Kohler Command PRO Engine, Basic Version, 14hp, 10.5kW 08 Fuel System Parts Diagram

Command PRO Engine, Basic Version, 14hp, 10.5kW

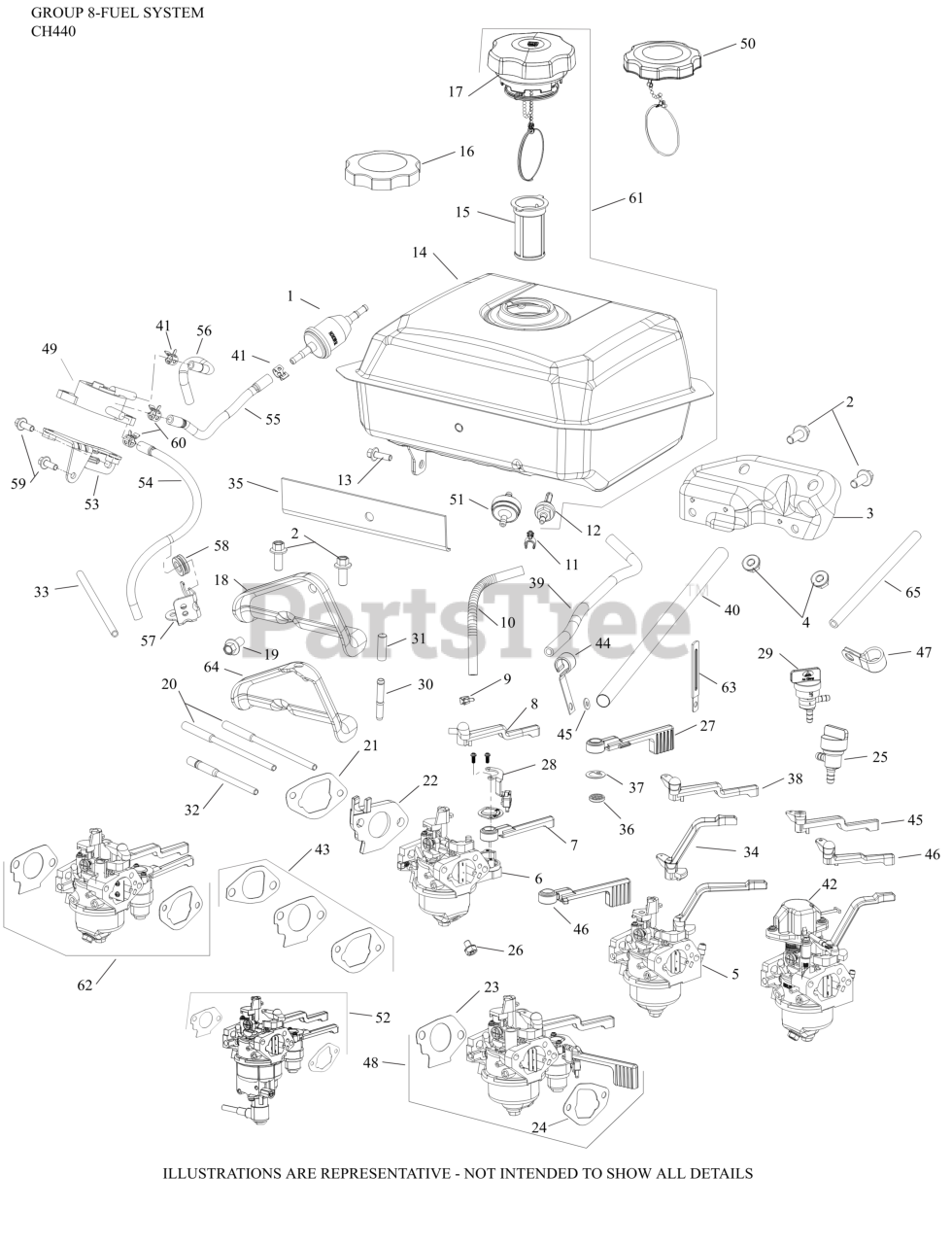

08 Fuel System Parts Diagram

  • Title
2

Kohler 25 086 224-S

SCREW, M8 X 20

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 17 126 245-S

BRACKET, FUEL SUPPORT ASSEMBLY

$15.99

$

In Stock, only 1 left!

0

4

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

6

Kohler 17 853 96-S

KIT, CARB COMPLETE
(Superseded to 17 853 113-S)

$101.99

$

In Stock, only 3 left!

0

7

Kohler 17 090 07-S

LEVER, FUEL SHUTOFF

$5.99

$

In Stock, Qty 10

0

9

Kohler 14 237 01-S

CLAMP, FUEL LINE

$2.49

$

In Stock, Qty 7

0

10

Kohler 25 111 40-S

LINE, FUEL (10"-CUT TO LENGTH)

$7.49

$

In Stock, Qty 9

0

11

Kohler 17 154 08-S

CLIP, FUEL HOSE

$2.49

$

In Stock, only 1 left!

0

12

Kohler 17 294 05-S

FITTING, FUEL ASSY
(Superseded to 17 294 19-S)

$7.49

$

In Stock, Qty 9

0

14

Kohler 17 065 87-S

TANK, FUEL

$128.99

$

Usually ships in 2-5 days

0

15

Kohler 17 050 20-S

FILTER, FUEL TANK

$5.49

$

In Stock, Qty 11

0

17

Kohler 17 173 19-S

CAP, EVAPORATIVE EMISSIONS-(#1717343S)
(Superseded to 17 173 49-S)

Note: Before S/N 4819112008

$46.99

$

Usually ships in 2-5 days

0

17

Kohler 17 173 49-S

CAP, FUEL ASSEMBLY

Note: After S/N 4819112018

$46.99

$

Usually ships in 2-5 days

0

18

Kohler 17 126 159-S

BRACKET, FUEL SUPPORT

$10.99

$

Usually ships in 2-5 days

0

19

Kohler M-851016-S

SCREW, FLG 8X1.25X16

$6.99

$

Usually ships in 2-5 days

0

20

Kohler 17 072 10-S

STUD, CARBURETOR

$6.49

$

In Stock, only 1 left!

0

21

Kohler 17 041 35-S

KIT, GASKET INTAKE

$16.99

$

In Stock, only 2 left!

0

22

Kohler 17 168 07-S

KIT, INSULATOR

$6.99

$

In Stock, Qty 10

0

23

Kohler 17 041 36-S

GASKET, CARB TO INSULATOR

$3.49

$

In Stock, only 2 left!

0

26

Kohler 25 086 567-S

SCREW, BOWL DRAIN

$2.49

$

Usually ships in 2-5 days

0

36

Kohler 17 032 40-S

SEAL, INLET VALVE

$4.49

$

Usually ships in 2-5 days

0

37

Kohler 17 050 23-S

KIT, FUEL SCREEN

$2.49

$

In Stock, Qty 9

0

38

Kohler 17 090 51-S

LEVER, CHOKE

$6.99

$

In Stock, Qty 9

0

47

Kohler 25 154 34-S

CLAMP, INSULATED

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 17 173 43-S

FUEL CAP, ASSEMBLY-USE 17 173 49-S
(Superseded to 17 173 49-S)

$46.99

$

Usually ships in 2-5 days

0

NI

Kohler 17 755 09-S

KIT, HIGH ALTITUDE (4,000-8,000 FT)

$9.99

$

In Stock, only 2 left!

0

NI

Kohler 17 755 23-S

KIT, HIGH ALTITUDE (ABOVE 8,000 FT.)

$11.99

$

Usually ships in 2-5 days

0

NI

Kohler 17 757 03-S

KIT, CARBURETOR REPAIR

$19.99

$

Usually ships in 2-5 days

0
