CH440-1031 - Kohler Command PRO Engine, Made for Lombardini, 14hp, 10.5kW Crankcase Group Parts Diagram

Command PRO Engine, Made for Lombardini, 14hp, 10.5kW

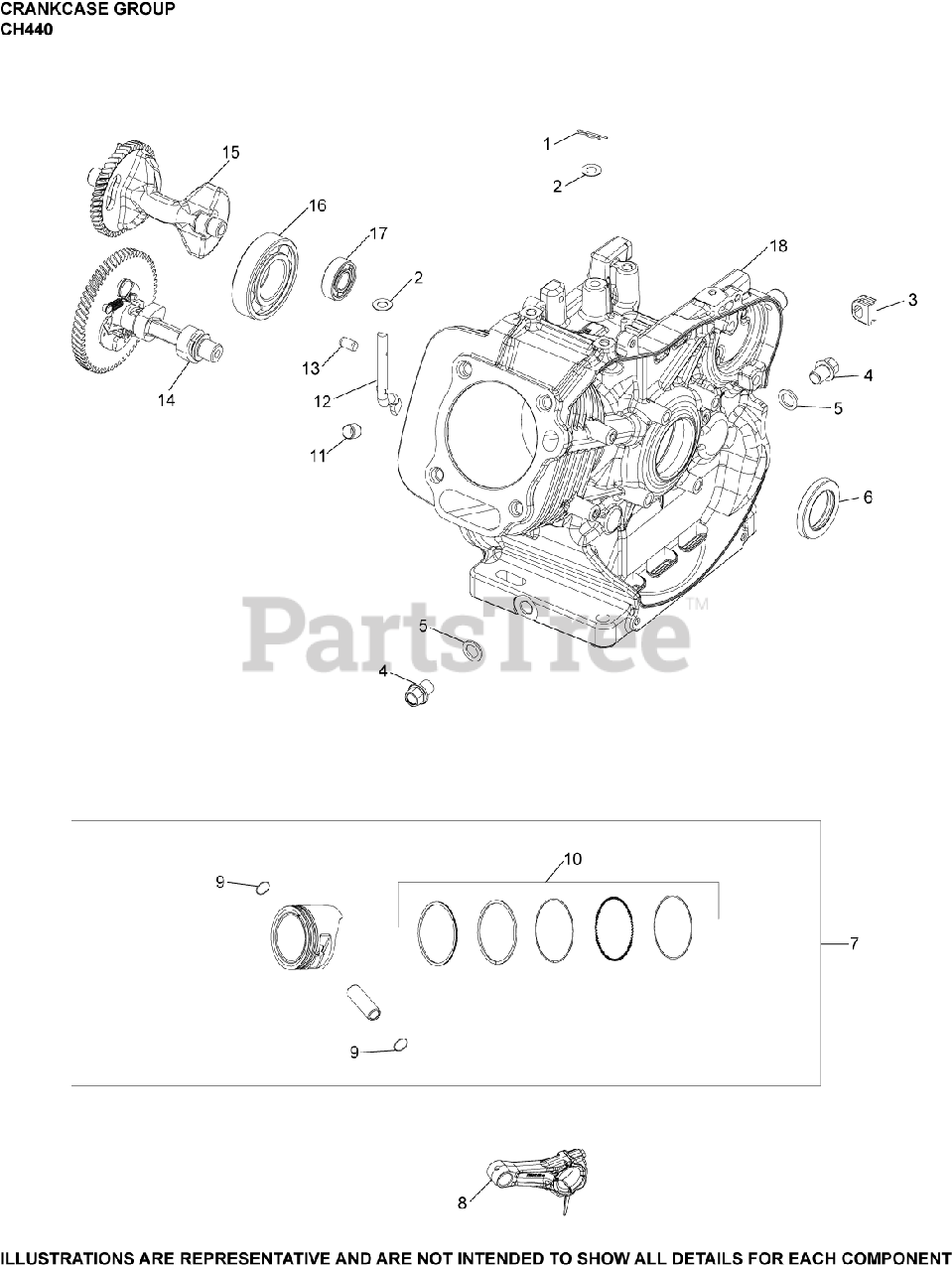

Crankcase Group Parts Diagram

  • Title

1

Kohler 14 154 01-S

CLIP, GOVERNOR SHAFT

$2.49

$

In Stock, only 1 left!

0

2

Kohler 17 468 14-S

WASHER, FLAT
(Superseded to 17 468 36-S)

$2.49

$

In Stock, only 1 left!

0

3

Kohler 17 313 13-S

GROMMET, CRANKCASE

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 17 139 05-S

KIT, DRAIN PLUG

$6.49

$

Usually ships in 2-5 days

0

5

Kohler 17 468 17-S

WASHER, DRAIN PLUG

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 17 032 27-S

SEAL, CRANKSHAFT

$8.99

$

In Stock, Qty 8

0

7

Kohler 17 874 08-S

KIT, PISTON (STD) (2.0mm Thick Top Ring) - USE 17 874 11-S
(Superseded to 17 874 11-S)

$128.99

$

In Stock, only 3 left!

0

7

Kohler 17 874 12-S

KIT, PISTON (0.25 O.S.)

$135.99

$

Usually ships in 2-5 days

0

7

Kohler 17 874 11-S

KIT, PISTON (STD) (1.2 mm Thick Top Ring)

$128.99

$

In Stock, only 3 left!

0

8

Kohler 17 067 09-S

ROD, CONNECTING ASSEMBLY
(Superseded to 17 067 14-S)

$44.99

$

In Stock, only 1 left!

0

9

Kohler 17 018 09-S

RETAINER, PISTON

$3.49

$

In Stock, only 1 left!

0

10

Kohler 17 108 03-S

RING SET, PISTON (2.0 mm Thick Top Ring)

$42.99

$

Usually ships in 2-5 days

0

10

Kohler 17 108 08-S

RING SET (0.25 O.S.)

$40.99

$

Usually ships in 2-5 days

0

10

Kohler 17 108 07-S

RING SET, PISTON (1.2 MM Thick Top Ring)

$44.99

$

In Stock, only 1 left!

0

11

Kohler 17 380 16-S

PIN, DOWEL CYLINDER HEAD

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 17 144 09-S

SHAFT, GOVERNOR CROSS

$10.99

$

In Stock, only 1 left!

0

13

Kohler 17 380 21-S

PIN, DOWEL

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 17 010 22-S

CAMSHAFT ASSEMBLY

$120.99

$

Usually ships in 2-5 days

0

15

Kohler 17 144 17-S

SHAFT, BALANCE

$46.99

$

Usually ships in 2-5 days

0

16

Kohler 17 030 10-S

BEARING, CRANKSHAFT

$49.99

$

Usually ships in 2-5 days

0

17

Kohler 17 030 09-S

BEARING, BALANCE SHAFT

$15.99

$

Usually ships in 2-5 days

0

18

Kohler 17 561 31-S

CRANKCASE

$381.99

$

Usually ships in 2-5 days

0
