CH410-0010 - Kohler Command PRO Engine, Made for Commercial Grounds Care, 11hp, 8.2kW 03 Lubrication Parts Diagram

Command PRO Engine, Made for Commercial Grounds Care, 11hp, 8.2kW

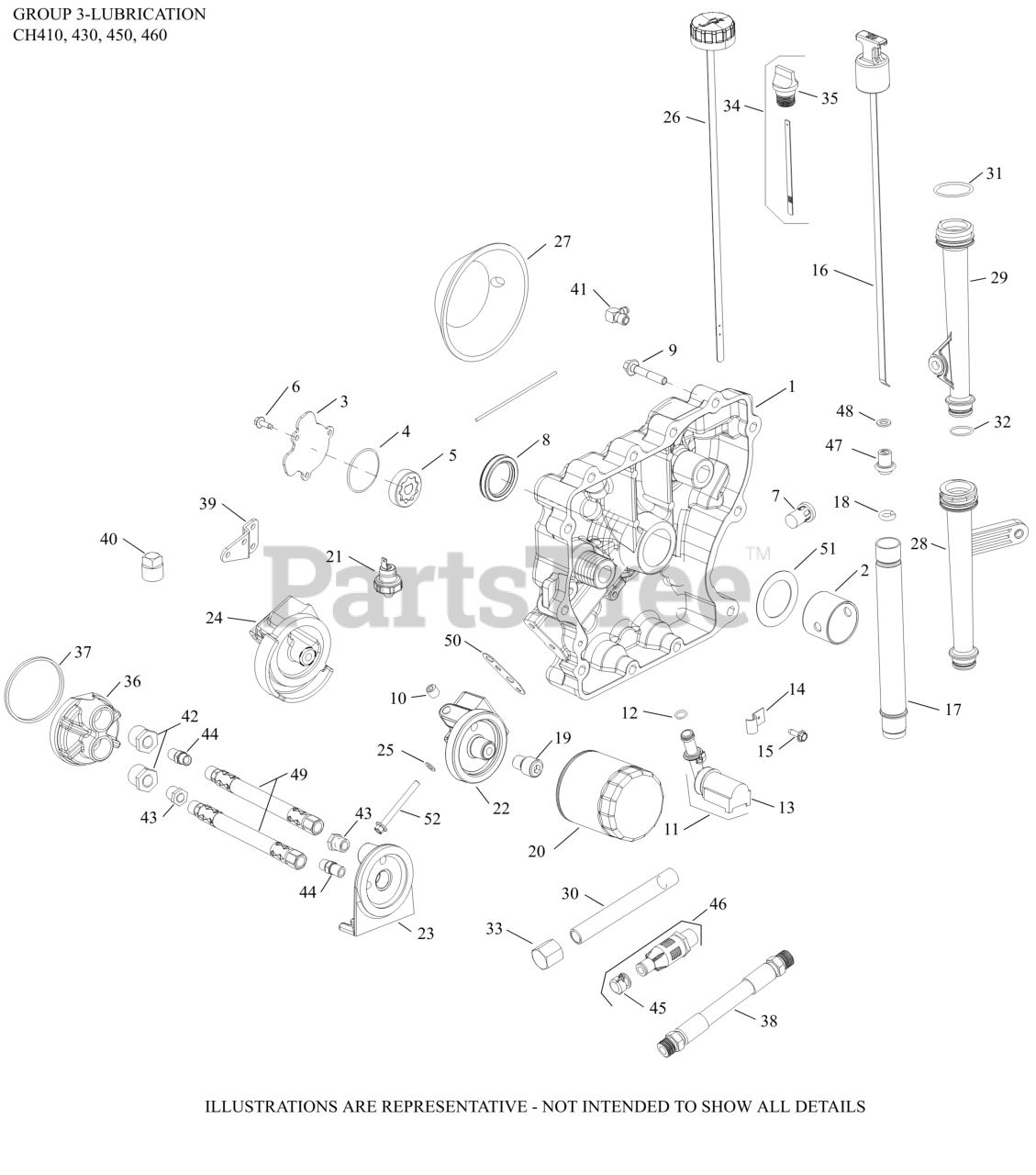

03 Lubrication Parts Diagram

  • Title

1

Kohler 12 009 37-S

CLOSURE PLATE ASSEMBLY

$320.99

$

Usually ships in 2-5 days

0

2

Kohler 12 030 05-S

BEARING, CRANKSHAFT

$23.99

$

Usually ships in 2-5 days

0

3

Kohler 12 096 21-S

COVER, OIL PUMP

$14.99

$

Usually ships in 2-5 days

0

4

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, only 1 left!

0

5

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL-(#DSC)

$

$

Not available

6

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

7

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$13.99

$

In Stock, only 1 left!

0

8

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

Usually ships in 2-5 days

0

9

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

10

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

11

Kohler 12 755 73-S

KIT, OIL PICK-UP

$88.99

$

Usually ships in 2-5 days

0

12

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

In Stock, only 1 left!

0

13

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 1 left!

0

13

Kohler 25 381 01-S

PICK-UP, OIL SCREEN

$53.99

$

Usually ships in 2-5 days

0

14

Kohler 52 154 01-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

15

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

16

Kohler 47 038 26-S

DIPSTICK-(#DSC)

$

$

Not available

17

Kohler 24 123 11-S

KIT, OIL FILL TUBE - METAL

$36.99

$

In Stock, only 1 left!

0

18

Kohler 41 153 01-S

O-RING

$5.49

$

In Stock, only 1 left!

0

20

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

22

Kohler 12 029 01-S

ADAPTER-(#DSC)

$

$

Not available

50

Kohler 12 041 07-S

GASKET, OIL FILTER ADAPTER

$2.49

$

Usually ships in 2-5 days

0

52

Kohler M-651060-S

SCREW, FLG M6X1.0X60

$3.99

$

Usually ships in 2-5 days

0
