CH395-3125 - Kohler Command PRO Engine, Made for KPP, 9.5hp, 7.1kW Ignition/Charging Parts Diagram

Command PRO Engine, Made for KPP, 9.5hp, 7.1kW

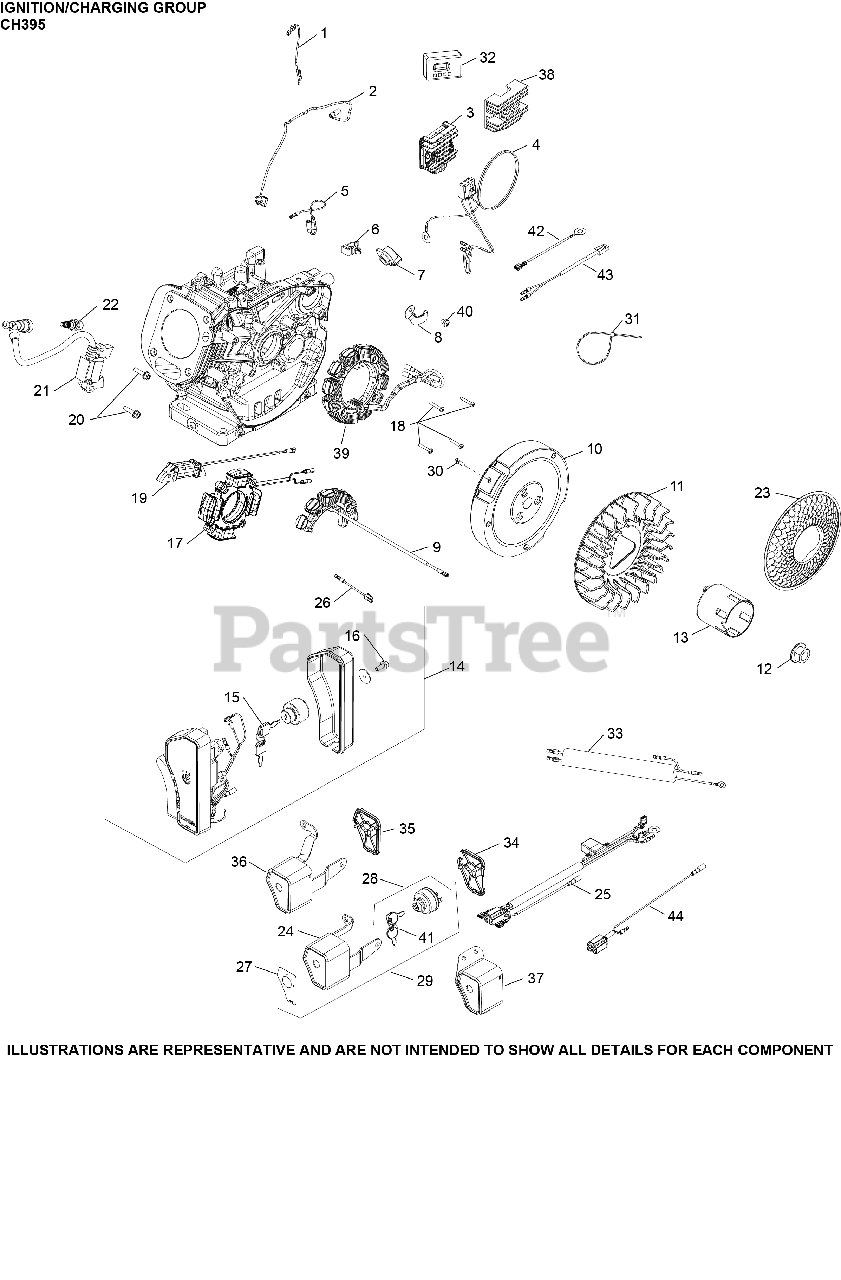

Ignition/Charging Parts Diagram

  • Title

2

Kohler 17 518 06-S

LEAD, GROUND TO KILL

$7.99

$

Usually ships in 2-5 days

0

8

Kohler 17 126 68-S

BRACKET, STATOR WIRE

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 17 085 15-S

STATOR ASSEMBLY, 1 AMP

$59.99

$

Usually ships in 2-5 days

0

10

Kohler 17 025 31-S

FLYWHEEL ASSY ELECTRIC START (CH395)

$166.99

$

Usually ships in 2-5 days

0

11

Kohler 17 157 03-S

FAN, FLYWHEEL

$14.99

$

Usually ships in 2-5 days

0

12

Kohler 17 100 24-S

NUT, FLYWHEEL

$7.99

$

Usually ships in 2-5 days

0

13

Kohler 17 109 07-S

CUP, STARTER DRIVE

$27.99

$

Usually ships in 2-5 days

0

16

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

$2.49

$

In Stock, only 1 left!

0

18

Kohler 25 086 373-S

SCREW, STATOR MOUNTING (CKY)

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 25 086 186-S

SCREW, M6 X 25 USE 25 086 436-S
(Superseded to 25 086 436-S)

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 17 584 02-S

MODULE, SPARK PLUG ASSY

$60.99

$

In Stock, only 1 left!

0

22

Kohler 25 132 19-S

SPARK PLUG

$13.99

$

In Stock, only 4 left!

0

31

Kohler 25 454 05-S

TIE

$2.49

$

In Stock, only 2 left!

0

40

Kohler 25 086 301-S

SCREW, COIL BRACKET (CKY)

$2.49

$

Usually ships in 2-5 days

0
