CH395-3123 - Kohler Command PRO Engine, Made for KPP, 9.5hp, 7.1kW Blower Housing Group CH395-3123 CH395 Parts Diagram

Command PRO Engine, Made for KPP, 9.5hp, 7.1kW

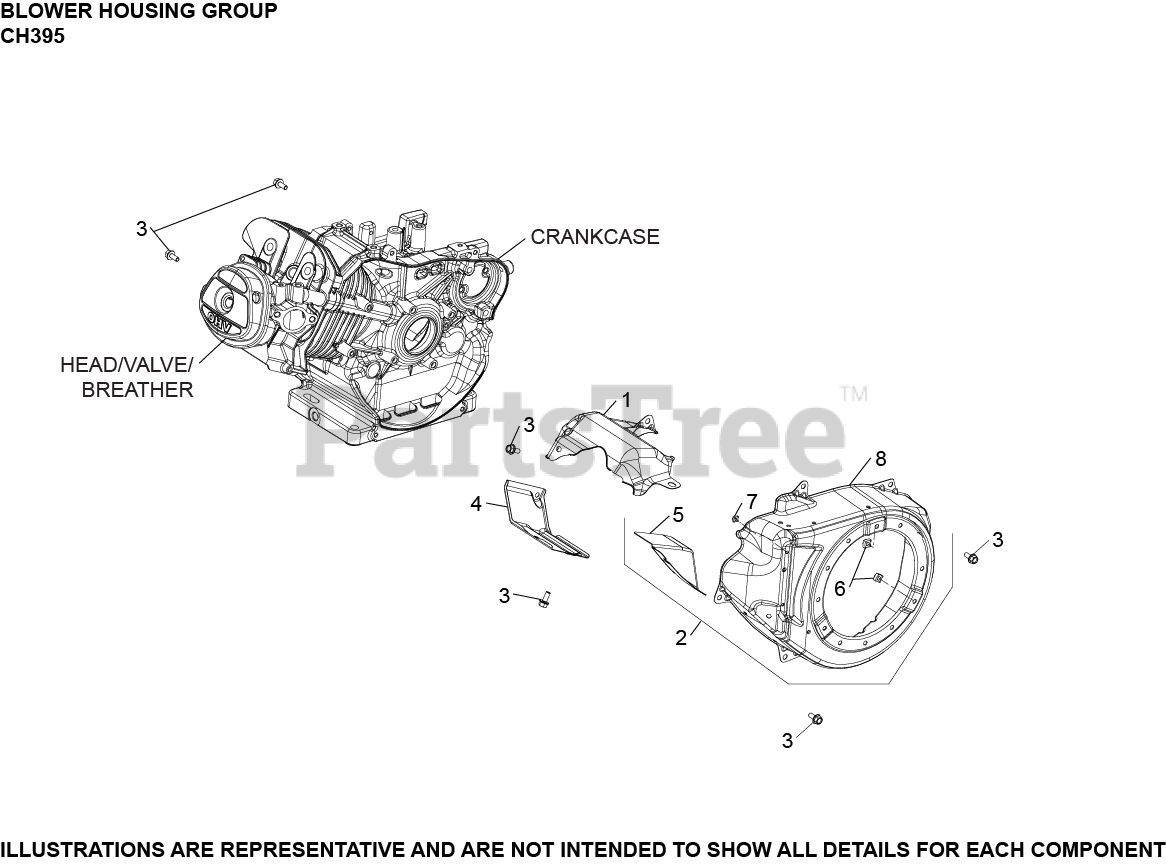

Blower Housing Group CH395-3123 CH395 Parts Diagram

  • Title

1

Kohler 17 314 11-S

SHIELD, UPPER HEAT

$21.99

$

Usually ships in 2-5 days

0

2

Kohler 17 027 52-S

HOUSING, BLOWER ASSEMBLY

$103.99

$

Usually ships in 2-5 days

0

3

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

$2.49

$

In Stock, only 1 left!

0

4

Kohler 17 314 27-S

SHIELD, CYLINDER HEAD

$12.99

$

Usually ships in 2-5 days

0

5

Kohler 17 314 89-S

SHIELD, OUTSIDE CYLINDER HEAD

$

$

Not available

6

Kohler 25 100 40-S

NUT, BLOWER HOUSING (CKY)

$

$

Not available

7

Kohler 25 100 41-S

NUT, BLOWER HOUSING (CKY)

$

$

Not available
