CH395-1031 - Kohler Command PRO Engine, Made for U-Young, 9.5hp, 7.1kW 05 Ignition/Charging Parts Diagram

Command PRO Engine, Made for U-Young, 9.5hp, 7.1kW

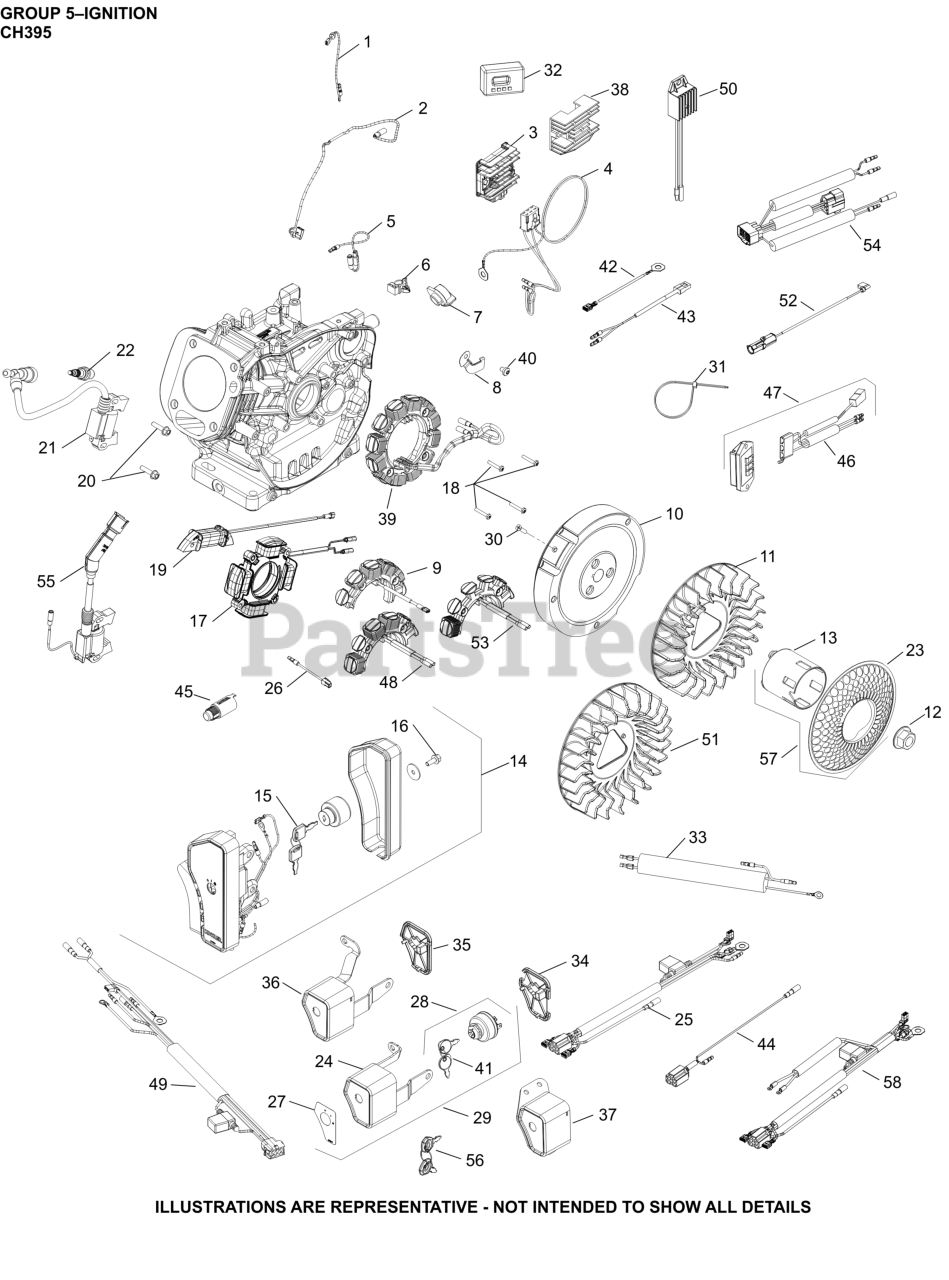

05 Ignition/Charging Parts Diagram

  • Title

2

Kohler 17 518 06-S

LEAD, GROUND TO KILL

$7.99

$

Usually ships in 2-5 days

0

4

Kohler 17 176 03-S

HARNESS, REGULATOR WIRING ASSY

$14.99

$

Usually ships in 2-5 days

0

8

Kohler 17 126 68-S

BRACKET, STATOR WIRE

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 17 085 12-S

STATOR ASSEMBLY, 10A

$77.99

$

Usually ships in 2-5 days

0

10

Kohler 17 025 31-S

FLYWHEEL ASSY ELECTRIC START (CH395)

$166.99

$

Usually ships in 2-5 days

0

11

Kohler 17 157 03-S

FAN, FLYWHEEL

$14.99

$

Usually ships in 2-5 days

0

12

Kohler 17 100 24-S

NUT, FLYWHEEL

$7.99

$

Usually ships in 2-5 days

0

13

Kohler 17 109 07-S

CUP, STARTER DRIVE

$27.99

$

Usually ships in 2-5 days

0

14

Kohler 17 081 46-S

HOUSING, KEY BOX ASSY-USE 17 755 69-S
(Superseded to 17 755 69-S)

Note: OLD STYLE

$138.99

$

Usually ships in 2-5 days

0

15

Kohler 17 340 11-S

KEYS FOR SWITCH

Note: OLD STYLE

$4.49

$

In Stock, only 1 left!

0

16

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

Note: OLD STYLE

$2.49

$

In Stock, only 1 left!

0

18

Kohler 25 086 373-S

SCREW, STATOR MOUNTING

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 25 086 186-S

SCREW, M6 X 25-(#25086436S)
(Superseded to 25 086 436-S)

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 17 584 02-S

MODULE, SPARK PLUG ASSY

$60.99

$

In Stock, only 1 left!

0

22

Kohler 25 132 19-S

SPARK PLUG

$13.99

$

In Stock, only 4 left!

0

24

Kohler 17 081 112-S

KIT, KEYBOX HOUSING ASSEMBLY

Note: NEW STYLE

$39.99

$

Usually ships in 2-5 days

0

25

Kohler 17 176 18-S

HARNESS, WIRING ASSEMBLY (10 AMP)

Note: NEW STYLE

$25.99

$

Usually ships in 2-5 days

0

27

Kohler 17 113 76-S

LABEL, KEY BOX

Note: NEW STYLE

$6.49

$

Usually ships in 2-5 days

0

28

Kohler 25 099 38-S

SWITCH, KEY ASSEMBLY

Note: NEW STYLE

$46.99

$

In Stock, only 1 left!

0

29

Kohler 17 081 113-S

KIT, KEY BOX ASSEMBLY

Note: NEW STYLE

$67.99

$

Usually ships in 2-5 days

0

29

Kohler 17 755 69-S

KIT,KEY BOX CONVERSION CH395 (10&18 AMP)

Note: NEW STYLE

$138.99

$

Usually ships in 2-5 days

0

31

Kohler 25 454 05-S

TIE

$2.49

$

In Stock, only 2 left!

0

34

Kohler 17 096 93-S

COVER, KEY BOX

$7.49

$

Usually ships in 2-5 days

0

38

Kohler 17 403 08-S

REGULATOR, 10 AMP

$64.99

$

Usually ships in 2-5 days

0

40

Kohler 25 086 301-S

SCREW, COIL BRACKET

$2.49

$

Usually ships in 2-5 days

0

41

Kohler 48 340 01-S

KEY, SET OF 2
(Superseded to 48 340 01-S1)

$4.99

$

In Stock, only 1 left!

0

56

Kohler 17 340 18-S

KIT, KEY PLASTIC HANDLE (2 PC)

Note: NEW STYLE

$14.99

$

In Stock, only 1 left!

0
