CH395-0108 - Kohler Command PRO Engine, Basic Version, 9.5hp, 7.1kW Fuel System Parts Diagram

Command PRO Engine, Basic Version, 9.5hp, 7.1kW

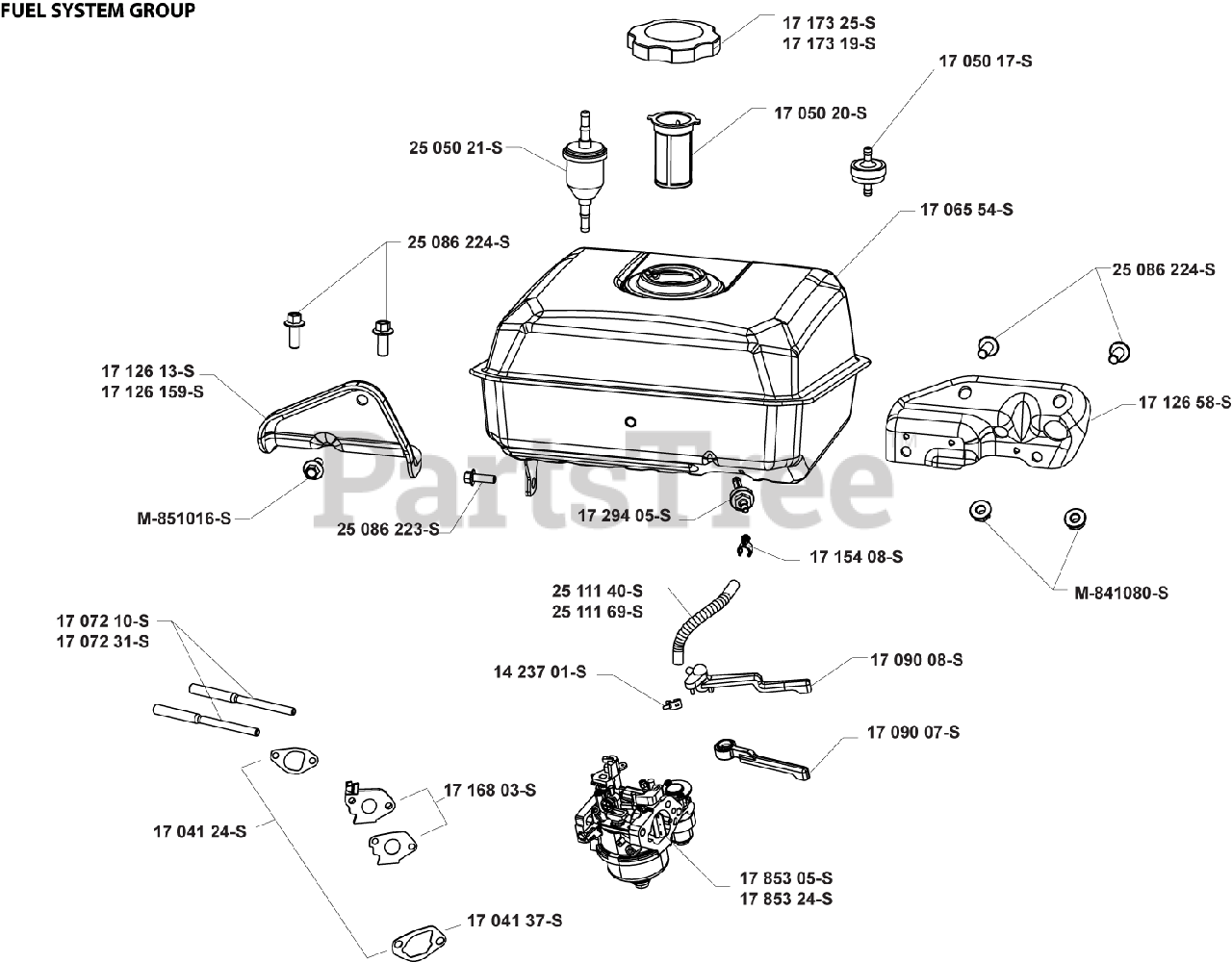

Fuel System Parts Diagram

  • Title

1705020-S

Kohler 17 050 20-S

FILTER, FUEL TANK

$6.49

$

In Stock, only 2 left!

0

25086224-S

Kohler 25 086 224-S

SCREW, M8 X 20

$2.99

$

In Stock, only 3 left!

0

1712658-S

Kohler 17 126 58-S

BRACKET, FUEL SUPPORT ASSEMBLY - USE 17 126 245-S
(Superseded to 17 126 245-S)

$19.99

$

In Stock, only 1 left!

0

1729405-S

Kohler 17 294 05-S

FITTING, FUEL ASSY
(Superseded to 17 294 19-S)

$8.49

$

In Stock, only 2 left!

0

1715408-S

Kohler 17 154 08-S

CLIP, FUEL HOSE

$2.99

$

Usually ships in 2-5 days

0

2511140-S

Kohler 25 111 40-S

LINE, FUEL (10"-CUT TO LENGTH)

$8.99

$

In Stock, only 1 left!

0

1785305-S

Kohler 17 853 05-S

KIT, CARBURETOR

Note: (INCLUDES 17 041 03-S) (FOR SERVICE USE 14 757 01-S)

$121.99

$

In Stock, only 1 left!

0

1707210-S

Kohler 17 072 10-S

STUD, CARBURETOR

$7.99

$

Usually ships in 2-5 days

0

17126159-S

Kohler 17 126 159-S

BRACKET, FUEL SUPPORT

$13.99

$

Usually ships in 2-5 days

0

M-851016-S

Kohler M-851016-S

SCREW, FLG 8X1.25X16

$6.99

$

In Stock, only 1 left!

0

25086223-S

Kohler 25 086 223-S

SCREW, M6 X18

$2.99

$

In Stock, only 4 left!

0

1423701-S

Kohler 14 237 01-S

CLAMP, FUEL LINE

$2.99

$

In Stock, only 3 left!

0

M-841080-S

Kohler M-841080-S

NUT, FLG M8X1.25

$2.99

$

In Stock, only 4 left!

0

1717325-S

Kohler 17 173 25-S

CAP, FUEL TANK
(Superseded to 17 173 46-S)

$17.99

$

In Stock, only 3 left!

0

1706554-S

Kohler 17 065 54-S

TANK, FUEL ASSY
(Superseded to 17 065 87-S)

$153.99

$

In Stock, only 2 left!

0

1709008-S

Kohler 17 090 08-S

LEVER, CHOKE
(Superseded to 17 090 51-S)

$8.49

$

In Stock, Qty 5

0

1709007-S

Kohler 17 090 07-S

LEVER, FUEL SHUTOFF

$6.99

$

In Stock, only 2 left!

0

1704124-S

Kohler 17 041 24-S

KIT, INTAKE GASKETS

$19.99

$

Usually ships in 2-5 days

0

1716803-S

Kohler 17 168 03-S

INSULATOR AND GASKET KIT

$7.99

$

In Stock, only 3 left!

0

1704137-S

Kohler 17 041 37-S

GASKET, AIR CLEANER
(Superseded to 17 041 54-S)

$3.99

$

In Stock, only 2 left!

0
