CH395-0106 - Kohler Command PRO Engine, Basic Version, 9.5hp, 7.1kW Cylinder head/Breather Group Parts Diagram

Command PRO Engine, Basic Version, 9.5hp, 7.1kW

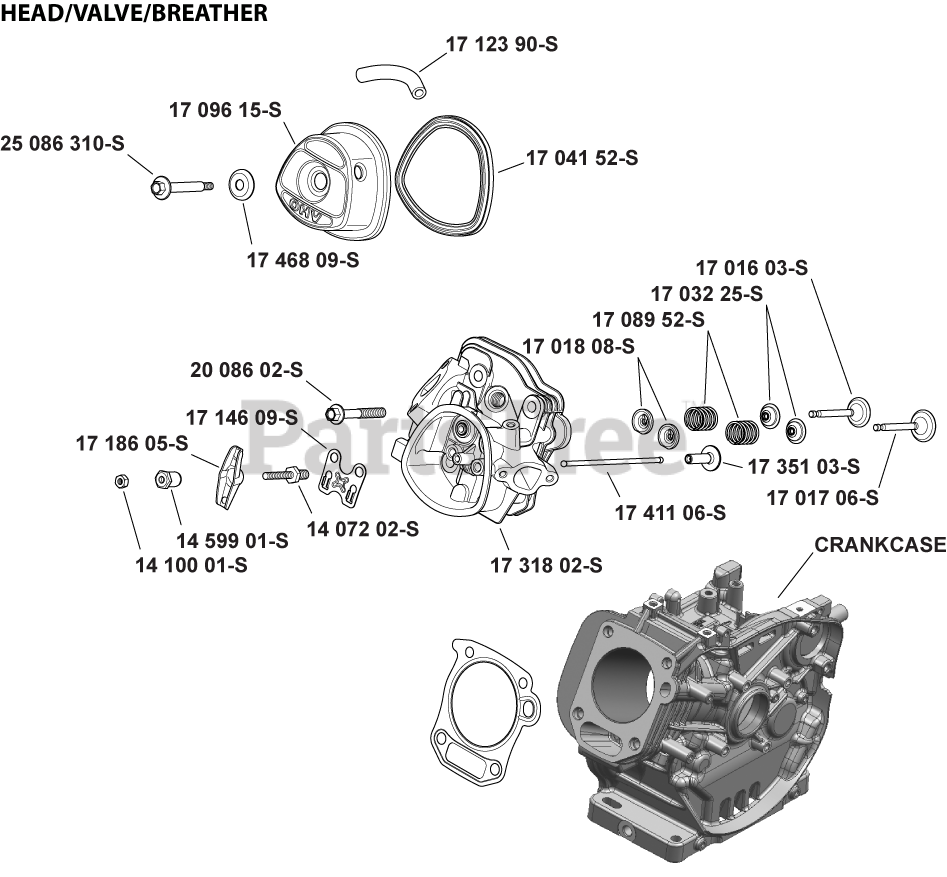

Cylinder head/Breather Group Parts Diagram

  • Title

1731802-S

Kohler 17 318 02-S

KIT, CYLINDER HEAD

Note: (INCLUDES 25 086 240-S)

$126.99

$

Usually ships in 2-5 days

0

1709615-S

Kohler 17 096 15-S

KIT, VALVE COVER ASSEMBLY

Note: (INCLUDES 17 041 52-S, 17 096 15-S, 17 468 09-S)

$21.99

$

Usually ships in 2-5 days

0

1704152-S

Kohler 17 041 52-S

GASKET, VALVE COVER

$9.49

$

Usually ships in 2-5 days

0

25086310-S

Kohler 25 086 310-S

SCREW, VALVE COVER SEAL ASSY

$4.99

$

In Stock, only 1 left!

0

1701706-S

Kohler 17 017 06-S

VALVE, INTAKE

$31.99

$

Usually ships in 2-5 days

0

1701603-S

Kohler 17 016 03-S

VALVE, EXHAUST

$43.99

$

Usually ships in 2-5 days

0

1703225-S

Kohler 17 032 25-S

SEAL, VALVE STEM

$9.99

$

In Stock, only 3 left!

0

1708952-S

Kohler 17 089 52-S

SPRING, VALVE

$8.49

$

Usually ships in 2-5 days

0

1701808-S

Kohler 17 018 08-S

RETAINER, VALVE SPRING

$4.99

$

Usually ships in 2-5 days

0

1735103-S

Kohler 17 351 03-S

LIFTER, VALVE

$10.99

$

Usually ships in 2-5 days

0

1741106-S

Kohler 17 411 06-S

PUSH ROD
(Superseded to 17 411 09-S)

$4.49

$

Usually ships in 2-5 days

0

1714609-S

Kohler 17 146 09-S

PLATE, PUSHROD GUIDE

$7.49

$

Usually ships in 2-5 days

0

1407202-S

Kohler 14 072 02-S

STUD, ROCKER ARM - (#1407222S)
(Superseded to 14 072 29-S)

$6.49

$

In Stock, only 1 left!

0

1718605-S

Kohler 17 186 05-S

ARM, ROCKER

$8.99

$

Usually ships in 2-5 days

0

1459901-S

Kohler 14 599 01-S

PIVOT, ROCKER ARM

$2.49

$

Usually ships in 2-5 days

0

1410001-S

Kohler 14 100 01-S

NUT, HEX JAM

$2.49

$

In Stock, Qty 6

0

1704124-S

Kohler 17 041 24-S

KIT, INTAKE GASKETS

Note: NOT ILLUSTRATED (INCLUDES AIR CLEANER BASE GASKET, INSULATOR TO CYLINDER HEAD GASKET, CARBURETOR TO INSULATOR GASKET)

$16.99

$

Usually ships in 2-5 days

0

1716803-S

Kohler 17 168 03-S

INSULATOR AND GASKET KIT

Note: NOT ILLUSTRATED

$6.99

$

In Stock, only 1 left!

0

1707210-S

Kohler 17 072 10-S

STUD, CARBURETOR

Note: NOT ILLUSTRATED

$6.49

$

In Stock, only 1 left!

0

1712390-S

Kohler 17 123 90-S

TUBE, BREATHER

$10.99

$

In Stock, only 1 left!

0

1746809-S

Kohler 17 468 09-S

WASHER, ASSEMBLY VALVE COVER

$3.99

$

In Stock, only 2 left!

0

2008602-S

Kohler 20 086 02-S

SCREW, CYLINDER HEAD (M10 X 80)

$3.99

$

In Stock, Qty 17

0

1784122-S

Kohler 17 841 22-S

KIT, HEAD GASKET

Note: NOT ILLUSTRATED

$31.99

$

Usually ships in 2-5 days

0
