CH395-0011 - Kohler Command PRO Engine, Made for Komex, 9.5hp, 7.1kW Engine Controls Parts Diagram

Command PRO Engine, Made for Komex, 9.5hp, 7.1kW

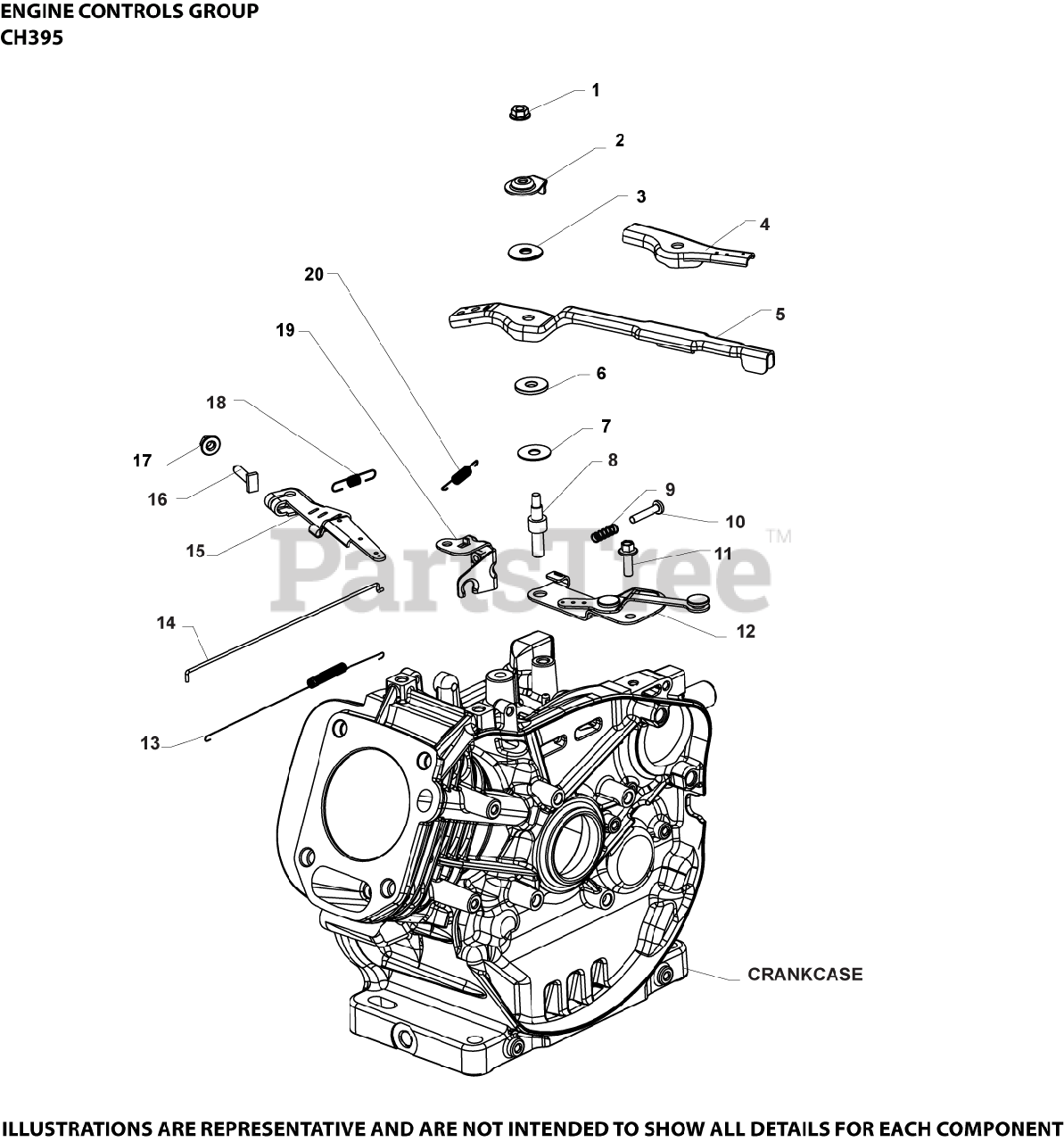

Engine Controls Parts Diagram

  • Title

1

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, only 2 left!

0

2

Kohler 17 468 22-S

WASHER, CONTROL LEVER - USE 17 468 34-S
(Superseded to 17 468 34-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 25 468 17-S

WASHER, SPRING

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 25 468 15-S

WASHER, NYLON CONTROL LEVER

$2.49

$

In Stock, only 2 left!

0

7

Kohler 17 468 19-S

WASHER, FLAT

$2.49

$

In Stock, only 1 left!

0

8

Kohler 17 072 11-S

STUD, CONTROL LEVER

$3.99

$

In Stock, only 1 left!

0

9

Kohler 17 089 36-S

SPRING, COMPRESSION

$5.49

$

Usually ships in 2-5 days

0

10

Kohler 25 086 242-S

SCREW, SPEED ADJUSTING

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 25 086 223-S

SCREW, M6 X18

$2.49

$

In Stock, only 4 left!

0

12

Kohler 17 126 49-S

BRACKET, CONTROLS ASSY

$12.99

$

In Stock, only 1 left!

0

13

Kohler 17 089 59-S

SPRING, LINKAGE

$5.99

$

In Stock, Qty 10

0

14

Kohler 17 079 02-S

LINKAGE, GOVERNOR

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 17 090 10-S

KIT, GOVERNOR LEVER USE 17 090 54-S
(Superseded to 17 090 54-S)

$8.99

$

Usually ships in 2-5 days

0

16

Kohler 25 086 166-S

SCREW, RECTANGLE HEAD (M6)

$2.49

$

In Stock, only 1 left!

0

17

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

18

Kohler 17 089 11-S

SPRING, GOVERNOR

$6.49

$

In Stock, only 2 left!

0
