CH270-3147 - Kohler Command PRO Engine, Made for KPP, 7hp, 5.2kW Lubrication Parts Diagram

Command PRO Engine, Made for KPP, 7hp, 5.2kW

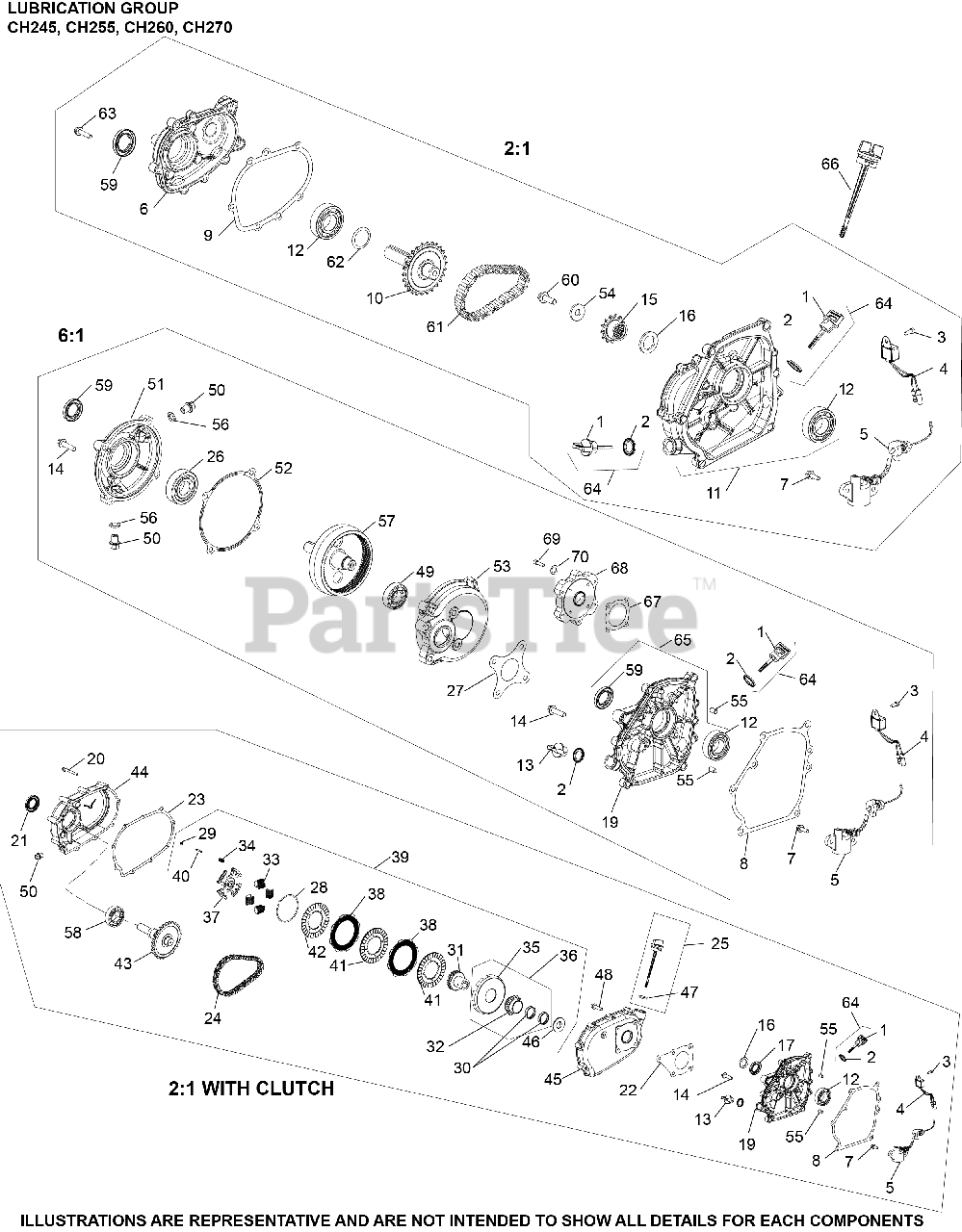

Lubrication Parts Diagram

  • Title

1

Kohler 17 038 01-S

DIPSTICK - USE 17 038 08-S
(Superseded to 17 038 08-S)

$6.49

$

In Stock, only 1 left!

0

2

Kohler 17 032 05-S

SEAL, OIL
(Superseded to 17 038 08-S)

$6.49

$

In Stock, only 1 left!

0

3

Kohler 25 086 244-S

SCREW, HEX/PHILLIPS M5

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 17 526 04-S

CONTROL, OIL ALERT UNIT

$71.99

$

In Stock, only 1 left!

0

5

Kohler 17 099 09-S

SWITCH, OIL SENSOR ASSEMBLY

$43.99

$

In Stock, only 1 left!

0

6

Kohler 17 096 72-S

COVER, CHAIN

$37.99

$

Usually ships in 2-5 days

0

8

Kohler 17 041 01-S

GASKET, CLOSURE PLATE

$12.99

$

Usually ships in 2-5 days

0

9

Kohler 17 041 51-S

GASKET, CHAIN COVER

$7.99

$

Usually ships in 2-5 days

0

10

Kohler 17 144 19-S

SHAFT, PTO SPROCKET

$64.99

$

Usually ships in 2-5 days

0

11

Kohler 17 009 43-S

PLATE , CLOSURE

$113.99

$

Usually ships in 2-5 days

0

12

Kohler 17 030 12-S

BEARING, BALL

$32.99

$

Usually ships in 2-5 days

0

14

Kohler 25 086 171-S

SCREW, CLOSURE PLATE

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 17 043 23-S

GEAR, PINION

$34.99

$

Usually ships in 2-5 days

0

16

Kohler 17 112 14-S

SPACER, PINION

$9.49

$

Usually ships in 2-5 days

0

54

Kohler 17 468 29-S

WASHER, FLAT

$7.99

$

Usually ships in 2-5 days

0

59

Kohler 17 032 29-S

SEAL, CLOSURE PLATE

$7.99

$

Usually ships in 2-5 days

0

60

Kohler 25 086 351-S

SCREW, HEX FLANGE (M8) (CKY)

$2.49

$

Usually ships in 2-5 days

0

61

Kohler 17 233 06-S

CHAIN

$80.99

$

Usually ships in 2-5 days

0

62

Kohler 17 468 35-S

WASHER, SPRING

$3.99

$

Usually ships in 2-5 days

0

63

Kohler 25 086 350-S

SCREW, HEX FLANGE (M6)

$2.49

$

Usually ships in 2-5 days

0

64

Kohler 17 038 08-S

DIPSTICK ASSEMBLY

$6.49

$

In Stock, only 1 left!

0
