CH270-3118 - Kohler Command PRO Engine, Made for RBI Chesapeake, 7hp, 5.2kW Crankcase Parts Diagram

Command PRO Engine, Made for RBI Chesapeake, 7hp, 5.2kW

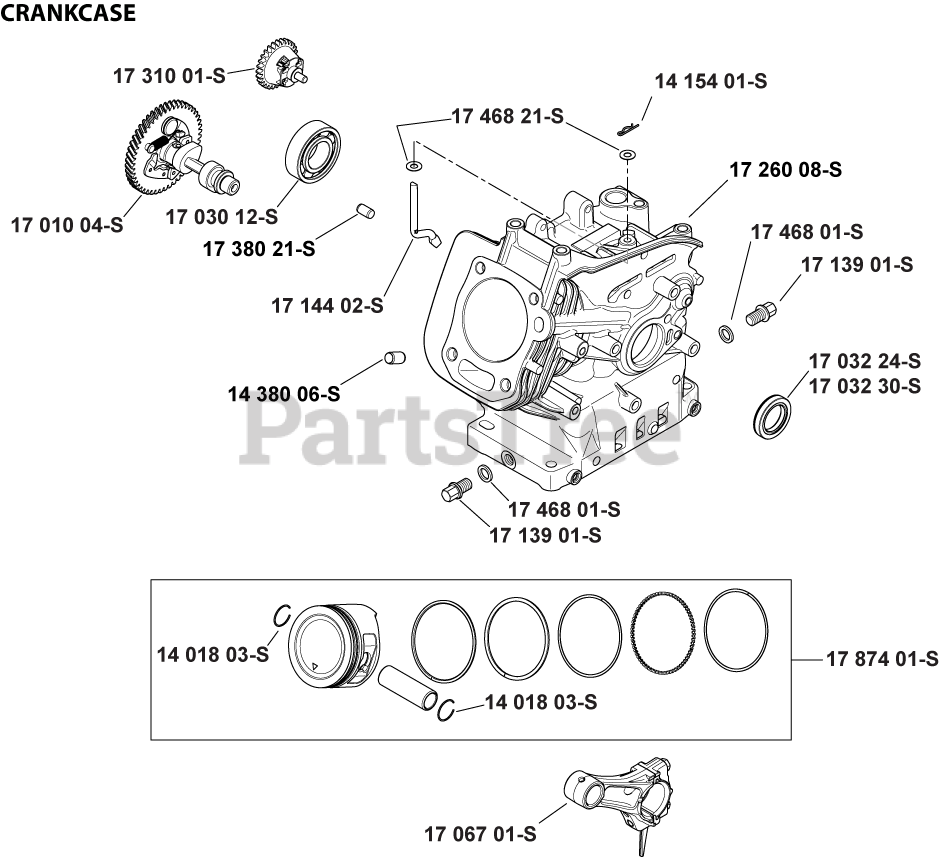

Crankcase Parts Diagram

1703230-S

Kohler 17 032 30-S

SEAL, OIL

$7.99

$

In Stock, only 1 left!

0

1713901-S

Kohler 17 139 01-S

KIT, DRAIN PLUG

$3.49

$

Usually ships in 2-5 days

0

1746801-S

Kohler 17 468 01-S

WASHER, DRAIN PLUG - (#1846801S)
(Superseded to 18 468 01-S)

$2.49

$

Usually ships in 2-5 days

0

1731001-S

Kohler 17 310 01-S

GOVERNOR ASSEMBLY USE 17 310 08-S
(Superseded to 17 310 08-S)

$29.99

$

Usually ships in 2-5 days

0

1746821-S

Kohler 17 468 21-S

WASHER, FLAT (13MM OD)

$2.49

$

Usually ships in 2-5 days

0

1714402-S

Kohler 17 144 02-S

SHAFT, GOVERNOR CROSS

$11.99

$

Usually ships in 2-5 days

0

1738021-S

Kohler 17 380 21-S

PIN, DOWEL

$2.49

$

Usually ships in 2-5 days

0

1438006-S

Kohler 14 380 06-S

DOWEL, CYLINDER HEAD-(#1438013S)
(Superseded to 14 380 13-S)

$2.49

$

Usually ships in 2-5 days

0

1701004-S

Kohler 17 010 04-S

CAMSHAFT ASSEMBLY

$75.99

$

Usually ships in 2-5 days

0

1706701-S

Kohler 17 067 01-S

ROD, CONNECTING ASSEMBLY

$44.99

$

Usually ships in 2-5 days

0

1787401-S

Kohler 17 874 01-S

KIT, PISTON USE 17 874 10-S
(Superseded to 17 874 10-S)

Note: (INCLUDES 14 018 03-S)

$80.99

$

Usually ships in 2-5 days

0

1401803-S

Kohler 14 018 03-S

RETAINER, PISTON PIN

$3.49

$

Usually ships in 2-5 days

0

1710801-S

Kohler 17 108 01-S

RING SET, PISTON

$39.99

$

Usually ships in 2-5 days

0

1415401-S

Kohler 14 154 01-S

CLIP, GOVERNOR SHAFT

$2.49

$

In Stock, only 1 left!

0

1703012-S

Kohler 17 030 12-S

BEARING, BALL

$32.99

$

Usually ships in 2-5 days

0

1726008-S

Kohler 17 260 08-S

CRANKCASE ASSEMBLY

$306.99

$

Usually ships in 2-5 days

0
