CH270-3118 - Kohler Command PRO Engine, Made for RBI Chesapeake, 7hp, 5.2kW Air Intake/Filtration Parts Diagram

Command PRO Engine, Made for RBI Chesapeake, 7hp, 5.2kW

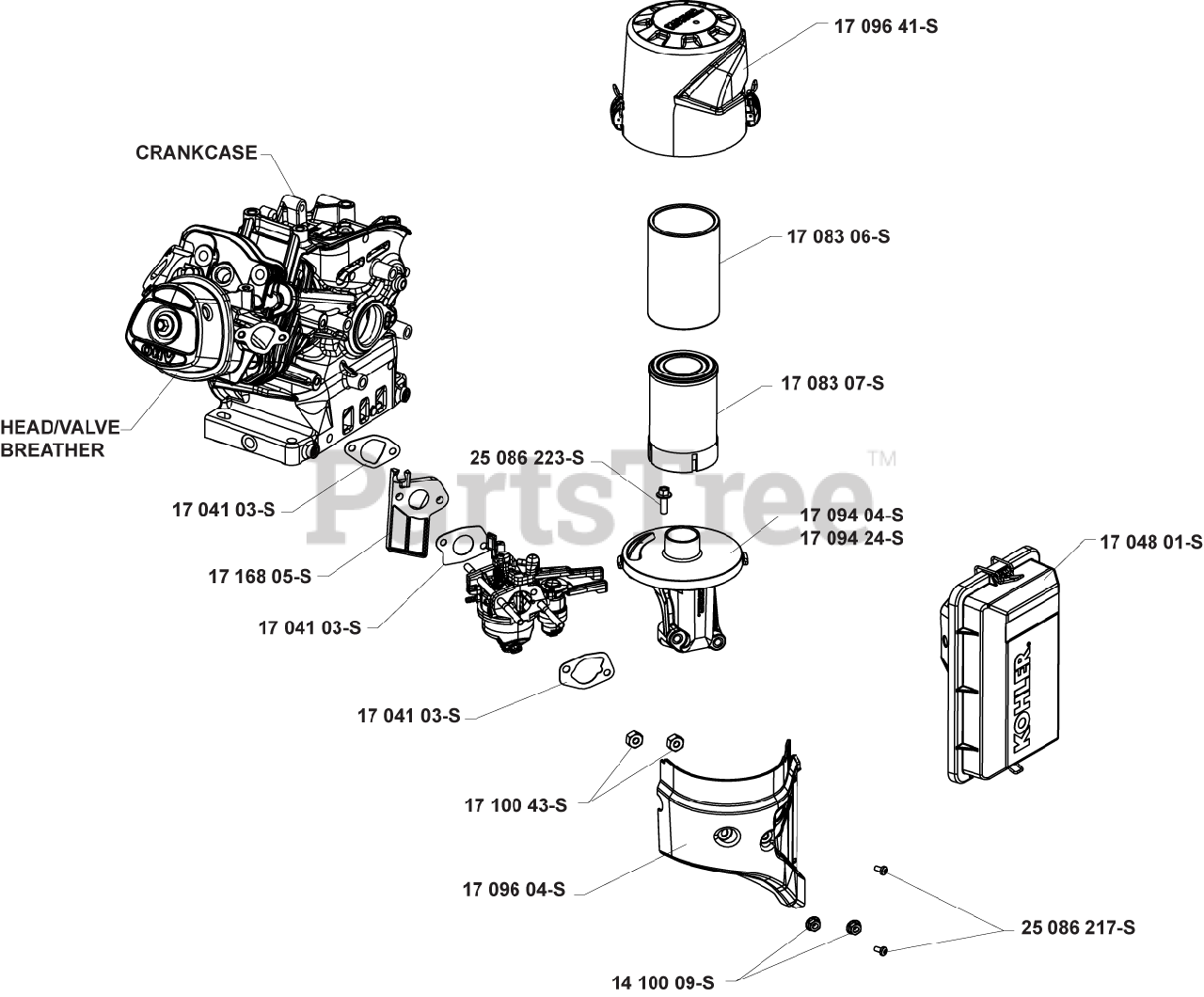

Air Intake/Filtration Parts Diagram

  • Title

1709424-S

Kohler 17 094 24-S

KIT, AIR CLEANER BASE ASSEMBLY

$20.99

$

In Stock, only 1 left!

0

1709641-S

Kohler 17 096 41-S

COVER, AIR CLEANER ASSEMBLY

$20.99

$

In Stock, only 1 left!

0

1708307-S

Kohler 17 083 07-S

ELEMENT, AIR FILTER USE 17 083 23-S
(Superseded to 17 083 23-S)

$20.99

$

In Stock, only 1 left!

0

1708306-S

Kohler 17 083 06-S

ELEMENT, PRE-CLEANER - USE 17 083 12-S
(Superseded to 17 083 12-S)

$6.99

$

In Stock, only 1 left!

0

25086223-S

Kohler 25 086 223-S

SCREW, M6 X18

$2.49

$

In Stock, only 4 left!

0

1704103-S

Kohler 17 041 03-S

KIT, INTAKE GASKET

Note: (INCLUDES AIR CLEANER BASE GASKET, INSULATOR TO CYLINDER HEAD GASKET, CARBURETOR TO INSULATOR GASKET)

$10.99

$

In Stock, Qty 8

0

1716805-S

Kohler 17 168 05-S

KIT, CARBURETOR INSULATOR

$5.49

$

Usually ships in 2-5 days

0

1709604-S

Kohler 17 096 04-S

COVER, AIR CLEANER BASE SHIELD

$13.99

$

In Stock, only 1 left!

0

1410009-S

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, only 2 left!

0

1710043-S

Kohler 17 100 43-S

NUT, HEX (M6 THREAD, M8 BODY)

$2.49

$

In Stock, only 2 left!

0

25086217-S

Kohler 25 086 217-S

SCREW,COVR TO BLWR HOUSING

$2.49

$

In Stock, only 2 left!

0

1734401-S

Kohler 17 344 01-S

KIT, LATCH CLIP

$6.49

$

In Stock, Qty 10

0
