CH270-0101 - Kohler Command PRO Engine, Made for SDMO, 7hp, 5.2kW Engine Controls Parts Diagram

Command PRO Engine, Made for SDMO, 7hp, 5.2kW

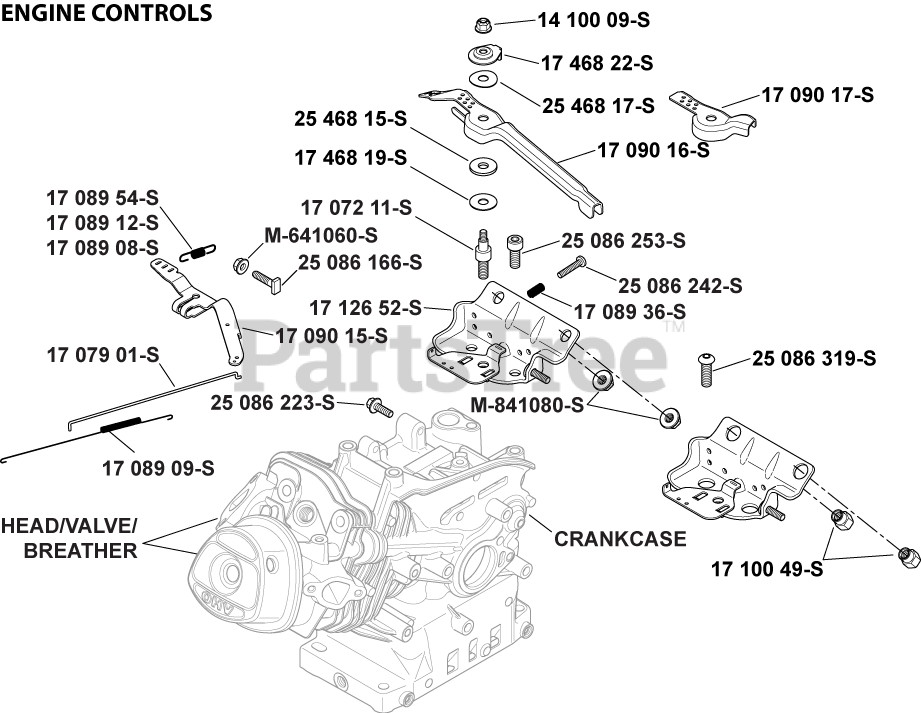

Engine Controls Parts Diagram

  • Title

25086223-S

Kohler 25 086 223-S

SCREW, M6 X18

$2.49

$

In Stock, only 4 left!

0

1707211-S

Kohler 17 072 11-S

STUD, CONTROL LEVER

$3.99

$

In Stock, only 1 left!

0

1709016-S

Kohler 17 090 16-S

LEVER,CONTROL (THROTTLE)-USE 17 090 36-S
(Superseded to 17 090 36-S)

$10.99

$

Usually ships in 2-5 days

0

1746822-S

Kohler 17 468 22-S

WASHER, CONTROL LEVER - USE 17 468 34-S
(Superseded to 17 468 34-S)

$2.49

$

Usually ships in 2-5 days

0

1746819-S

Kohler 17 468 19-S

WASHER, FLAT

$2.49

$

In Stock, only 1 left!

0

1410009-S

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, only 3 left!

0

25086242-S

Kohler 25 086 242-S

SCREW, SPEED ADJUSTING

$2.49

$

Usually ships in 2-5 days

0

1708936-S

Kohler 17 089 36-S

SPRING, COMPRESSION

$5.49

$

Usually ships in 2-5 days

0

1709015-S

Kohler 17 090 15-S

KIT, GOVERNOR LEVER

$8.99

$

Usually ships in 2-5 days

0

25086166-S

Kohler 25 086 166-S

SCREW, RECTANGLE HEAD (M6)

$2.49

$

In Stock, only 2 left!

0

M-641060-S

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 7

0

1707901-S

Kohler 17 079 01-S

LINKAGE, GOVERNOR

$3.49

$

Usually ships in 2-5 days

0

1708954-S

Kohler 17 089 54-S

SPRING, GOVERNOR

$5.99

$

Usually ships in 2-5 days

0

2546815-S

Kohler 25 468 15-S

WASHER, NYLON CONTROL LEVER

$2.49

$

In Stock, only 3 left!

0

1708909-S

Kohler 17 089 09-S

SPRING, LINKAGE

$5.99

$

Usually ships in 2-5 days

0

M-841080-S

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0
