CH260-0101 - Kohler Command PRO Engine, Made for Hoppt, 6hp, 4.5kW Cylinder Head/Breather Group CH260-0101 Parts Diagram

Command PRO Engine, Made for Hoppt, 6hp, 4.5kW

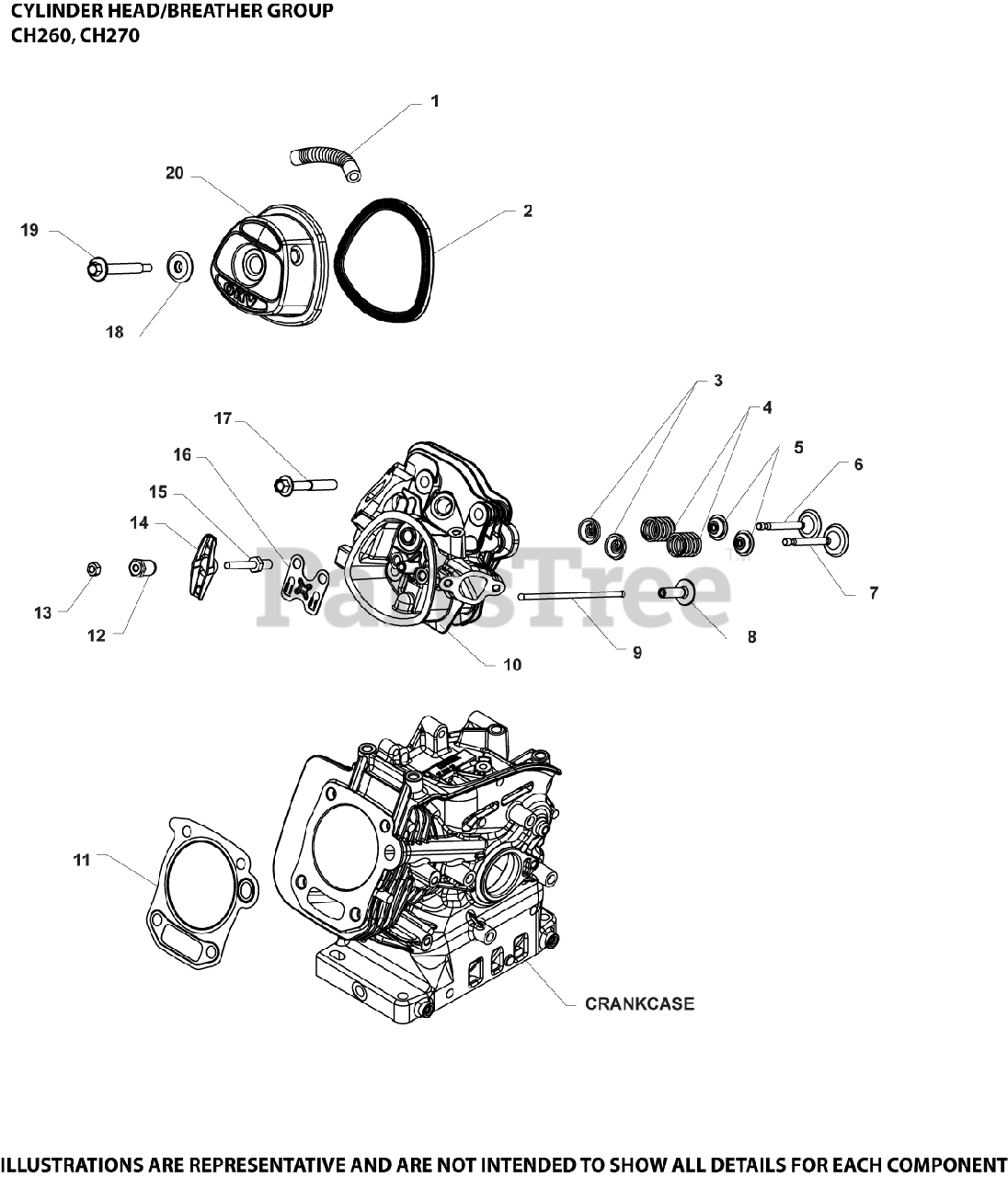

Cylinder Head/Breather Group CH260-0101 Parts Diagram

  • Title

1

Kohler 17 123 89-S

TUBE, BREATHER - (#1812313S)
(Superseded to 18 123 13-S)

$4.49

$

In Stock, only 1 left!

0

2

Kohler 17 041 47-S

GASKET, VALVE COVER

$6.99

$

In Stock, only 1 left!

0

3

Kohler 14 018 02-S

RETAINER, VALVE SPRING

$5.99

$

In Stock, only 2 left!

0

4

Kohler 17 089 04-S

SPRING, VALVE

$5.49

$

Usually ships in 2-5 days

0

5

Kohler 17 032 06-S

SEAL, VALVE STEM

$6.99

$

In Stock, only 2 left!

0

6

Kohler 17 016 05-S

VALVE, EXHAUST - USE 17 755 27-S
(Superseded to 17 755 27-S)

$87.99

$

Usually ships in 2-5 days

0

7

Kohler 17 017 01-S

VALVE, INTAKE - (#1775527S)
(Superseded to 17 755 27-S)

$87.99

$

Usually ships in 2-5 days

0

8

Kohler 17 351 04-S

LIFTER, VALVE

$9.49

$

Usually ships in 2-5 days

0

9

Kohler 14 411 01-S

ROD, PUSH
(Superseded to 17 411 08-S)

$5.49

$

In Stock, only 4 left!

0

10

Kohler 17 318 04-S

KIT, HEAD ASSEMBLY

$126.99

$

Usually ships in 2-5 days

0

11

Kohler 17 841 01-S

KIT, HEAD GASKET

$31.99

$

Usually ships in 2-5 days

0

12

Kohler 14 599 01-S

PIVOT, ROCKER ARM

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 14 100 01-S

NUT, HEX JAM

$2.49

$

In Stock, Qty 6

0

14

Kohler 14 186 02-S

ARM, ROCKER

$7.49

$

Usually ships in 2-5 days

0

15

Kohler 14 072 02-S

STUD, ROCKER ARM - (#1407222S)
(Superseded to 14 072 29-S)

$6.49

$

In Stock, only 1 left!

0

16

Kohler 17 146 01-S

PLATE, PUSHROD GUIDE

$6.49

$

In Stock, only 2 left!

0

17

Kohler 25 086 215-S

SCREW, HEX FLANGE CYL HEAD

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 25 086 310-S

SCREW, VALVE COVER SEAL ASSY

$4.99

$

In Stock, only 1 left!

0

20

Kohler 17 096 08-S

KIT, VALVE COVER

$21.99

$

Usually ships in 2-5 days

0

1775527-S

Kohler 17 755 27-S

KIT, VALVE AND PUSH ROD

Note: NOT ILLUSTRATED

$87.99

$

Usually ships in 2-5 days

0
