CH26-78525 - Kohler Command PRO EFI Engine, Basic Version, 26hp, 19.4kW Fuel System 8-24-298 Parts Diagram

Command PRO EFI Engine, Basic Version, 26hp, 19.4kW

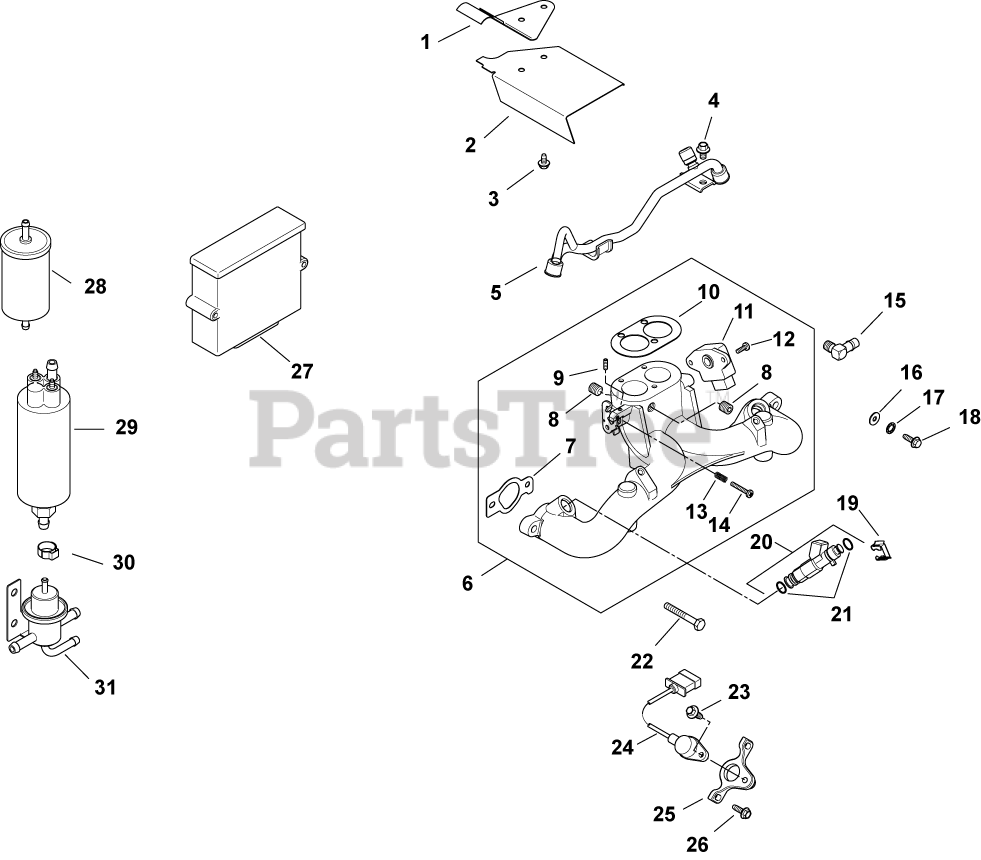

Fuel System 8-24-298 Parts Diagram

  • Title

1

Kohler 24 063 37-S

BAFFLE, VALLEY

$52.99

$

Usually ships in 2-5 days

0

2

Kohler 24 265 08-S

DEFLECTOR, AIR
(Superseded to 24 265 11-S)

$68.99

$

Usually ships in 2-5 days

0

3

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

4

Kohler M-639010-S

SCREW, FLG M6X1.0X10

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 24 399 04-S

KIT, FUEL RAIL

Note: (includes 4)

$153.99

$

Usually ships in 2-5 days

0

6

Kohler 24 164 84-S

KIT, INTAKE MANIFOLD

Note: (includes 7-14)

$592.99

$

Usually ships in 2-5 days

0

7

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

8

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

9

Kohler 24 086 49-S

SCREW, THD FRM 1/4-14X.75"

$3.49

$

Usually ships in 2-5 days

0

10

Kohler 24 041 36-S

GASKET, AIR CLEANER BASE

$5.99

$

Usually ships in 2-5 days

0

11

Kohler 24 418 06-S

KIT, THROTTLE POSITION SENSOR

$

$

Not available

12

Kohler M-442012-S

SCREW, PHL PAN M4X0.7X12

$4.99

$

Usually ships in 2-5 days

0

13

Kohler 12 089 11-S

SPRING, SPEED CONTROL (SHORT)

$2.49

$

In Stock, only 4 left!

0

14

Kohler M-442025-S

SCREW, PHL PAN M4X0.7X25

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 25 155 38-S

CONNECTOR, HOSE

$16.99

$

In Stock, only 3 left!

0

16

Kohler X-25-79-S

WASHER, FLAT 3/16"

$3.99

$

In Stock, only 2 left!

0

17

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

18

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

$2.49

$

In Stock, Qty 15

0

19

Kohler 24 154 05-S

CLIP, FUEL INJECTOR

$3.49

$

Usually ships in 2-5 days

0

20

Kohler 24 331 02-S

INJECTOR, FUEL

$205.99

$

In Stock, only 2 left!

0

21

Kohler 24 153 26-S

O-RING

$3.99

$

In Stock, only 1 left!

0

22

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

23

Kohler 24 086 42-S

SCREW,FLG THD FRM M6X1.0X16-(#25086404S)
(Superseded to 25 086 404-S)

$3.99

$

Usually ships in 2-5 days

0

24

Kohler 24 418 03-S

KIT, SPEED PICK-UP SENSOR

Note: (includes 25 445 07-S)

$201.99

$

Usually ships in 2-5 days

0

25

Kohler 24 126 131-S

BRACKET, SPEED SENSOR

Note: (After S/N 3501500001)

$10.99

$

Usually ships in 2-5 days

0

2412669-S

Kohler 24 126 69-S

BRACKET, SPEED SENSOR-(#DSC)

Note: (Before S/N 3501500011)

$

$

Not available

26

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

27

Kohler 24 584 28-S

MODULE, ENG MGMT (ECU)(24 PIN) - DISCONTINUED

Note: (ECU[32 pin] - use module 24 584 44-S and harness 24 176 122-S)

$

$

Not available

28

Kohler 24 050 03-S

FILTER, FUEL

$75.99

$

In Stock, only 2 left!

0

29

Kohler 24 393 52-S

PUMP,FUEL ASSEMBLY(ELECTRIC)

$367.99

$

Usually ships in 2-5 days

0

30

Kohler 24 237 05-S

CLAMP, FUEL HOSE

$7.49

$

Usually ships in 2-5 days

0

31

Kohler 24 403 16-S

REGULATOR ASSY, FUEL PRESSURE

$215.99

$

Usually ships in 2-5 days

0

24176121-S

Kohler 24 176 121-S

KIT, WIRING HARNESS (24 PIN)

Note: NOT ILLUSTRATED (includes 20 404 01-S)

$689.99

$

Usually ships in 2-5 days

0

2040401-S

Kohler 20 404 01-S

RELAY

Note: NOT ILLUSTRATED

$43.99

$

In Stock, only 1 left!

0

2545404-S

Kohler 25 454 04-S

TIE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2545507-S

Kohler 25 455 07-S

GAUGE,FEELER(.060" CLR PLASTIC)

Note: NOT ILLUSTRATED

$4.49

$

Usually ships in 2-5 days

0
