CH26-78513 - Kohler Command PRO EFI Engine, Made for Three R Industries, 26hp, 19.4kW Oil Pan/Lubrication 3-24-373 Parts Diagram

Command PRO EFI Engine, Made for Three R Industries, 26hp, 19.4kW

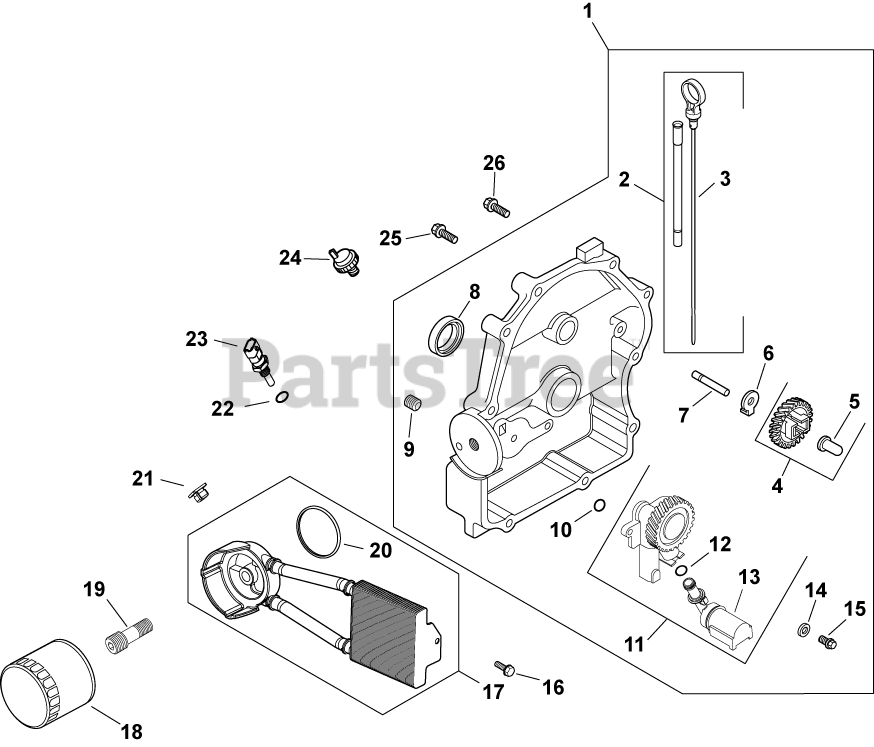

Oil Pan/Lubrication 3-24-373 Parts Diagram

  • Title

1

Kohler 24 009 92-S

PLATE, CLOSURE & BEARING USE 24 009 216-S
(Superseded to 24 009 216-S)

Note: (includes 2-15)

$679.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

Note: (includes 3)

$35.99

$

In Stock, Qty 7

0

3

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, Qty 7

0

4

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (includes 5)

$68.99

$

In Stock, Qty 13

0

5

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 12

0

6

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

7

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 10

0

8

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

9

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08-S

O-RING

$6.49

$

In Stock, only 2 left!

0

11

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (includes 12,13)

$

$

Not available

12

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 8

0

13

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 1 left!

0

14

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 1 left!

0

15

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 2 left!

0

16

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

17

Kohler 24 594 31-S

COOLER, OIL-USE 24 594 37-S
(Superseded to 24 594 37-S)

Note: (includes 20)

$292.99

$

Usually ships in 2-5 days

0

18

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

19

Kohler 24 136 05-S

NIPPLE, OIL FILTER
(Superseded to 24 136 08-S)

$12.99

$

Usually ships in 2-5 days

0

20

Kohler 24 153 21-S

O-RING, OIL COOLER

$5.99

$

In Stock, Qty 18

0

21

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 13

0

22

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

Usually ships in 2-5 days

0

23

Kohler 24 418 12-S

SENSOR, TEMPERATURE

Note: (After S/N 3224600001)

$64.99

$

Usually ships in 2-5 days

0

24755134-S

Kohler 24 755 134-S

KIT, WIRING HARNESS (EFI)

Note: (Before S/N 3244600011)

$74.99

$

Usually ships in 2-5 days

0

24

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, Qty 6

0

25

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

26

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0
