CH26-78513 - Kohler Command PRO EFI Engine, Made for Three R Industries, 26hp, 19.4kW Fuel System 8-24-241 (TP-2510-A) Parts Diagram

Command PRO EFI Engine, Made for Three R Industries, 26hp, 19.4kW

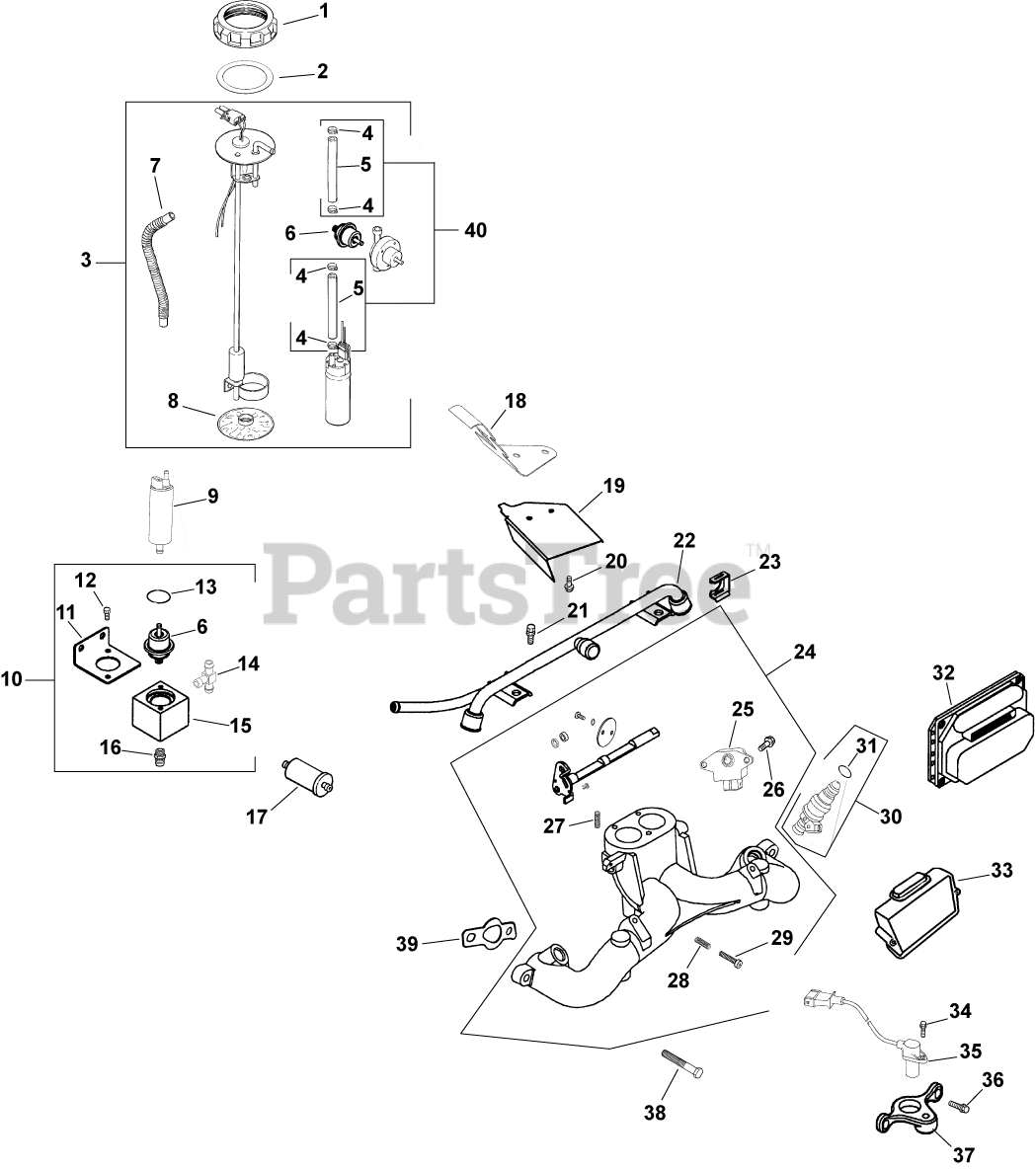

Fuel System 8-24-241 (TP-2510-A) Parts Diagram

  • Title

6

Kohler 24 403 02-S

REGULATOR, FUEL PRESSURE

$

$

Not available

9

Kohler 24 393 20-S

PUMP ASSY, FUEL-USE 24 393 52-S
(Superseded to 24 393 52-S)

$367.99

$

Usually ships in 2-5 days

0

10

Kohler 24 403 16-S

REGULATOR ASSY, FUEL PRESSURE

Note: (includes 6,11-16)

$215.99

$

Usually ships in 2-5 days

0

11

Kohler 24 126 86-S

BRACKET, REGULATOR -USE 24 403 16-S
(Superseded to 24 403 16-S)

$215.99

$

Usually ships in 2-5 days

0

12

Kohler M-410010-S

SCREW, HEX HEAD MACHINE

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 153 18-S

O-RING

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 24 403 16-S

REGULATOR ASSY, FUEL PRESSURE

$215.99

$

Usually ships in 2-5 days

0

15

Kohler 24 081 12-S

LINKAGE, THROTTLE-USE 24 403 16-S
(Superseded to 24 403 16-S)

$215.99

$

Usually ships in 2-5 days

0

16

Kohler 12 294 06-S

FITTING, BARBED - USE 25 294 16-S
(Superseded to 25 294 16-S)

$

$

Not available

17

Kohler 24 050 03-S

FILTER, FUEL

$75.99

$

In Stock, only 2 left!

0

18

Kohler 24 063 37-S

BAFFLE, VALLEY

$52.99

$

Usually ships in 2-5 days

0

19

Kohler 24 265 08-S

DEFLECTOR, AIR
(Superseded to 24 265 11-S)

$68.99

$

Usually ships in 2-5 days

0

20

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

21

Kohler M-639010-S

SCREW, FLG M6X1.0X10

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 24 399 04-S

KIT, FUEL RAIL

$153.99

$

Usually ships in 2-5 days

0

23

Kohler 24 154 05-S

CLIP, FUEL INJECTOR

$3.49

$

Usually ships in 2-5 days

0

24

Kohler 24 164 84-S

KIT, INTAKE MANIFOLD

Note: (includes 25-29 & 25 454 03-S)

$592.99

$

Usually ships in 2-5 days

0

25

Kohler 24 418 06-S

KIT, THROTTLE POSITION SENSOR

$

$

Not available

26

Kohler M-442012-S

SCREW, PHL PAN M4X0.7X12

$4.99

$

Usually ships in 2-5 days

0

27

Kohler 24 086 49-S

SCREW, THD FRM 1/4-14X.75"

$3.49

$

Usually ships in 2-5 days

0

28

Kohler 12 089 11-S

SPRING, SPEED CONTROL (SHORT)

$2.49

$

In Stock, only 4 left!

0

29

Kohler M-442025-S

SCREW, PHL PAN M4X0.7X25

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 24 331 01-S

INJECTOR, FUEL - DISCONTINUED

Note: (includes 310

$

$

Not available

31

Kohler 24 153 26-S

O-RING

$3.99

$

In Stock, only 1 left!

0

32

Kohler 24 584 22-S

MODULE, ENG MANAGEMENT - DISC.
(Superseded to 24 755 169-S)

$

$

Not available

34

Kohler 24 086 42-S

SCREW,FLG THD FRM M6X1.0X16-(#25086404S)
(Superseded to 25 086 404-S)

$3.99

$

Usually ships in 2-5 days

0

35

Kohler 24 418 03-S

KIT, SPEED PICK-UP SENSOR

$201.99

$

Usually ships in 2-5 days

0

36

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

37

Kohler 24 126 69-S

BRACKET, SPEED SENSOR-(#DSC)

$

$

Not available

38

Kohler M-639025-S

SCREW,FLG M6X1.0X25 (#25086294S)
(Superseded to 25 086 294-S)

$2.49

$

Usually ships in 2-5 days

0

39

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

2423705-S

Kohler 24 237 05-S

CLAMP, FUEL HOSE

Note: NOT ILLUSTRATED

$7.49

$

Usually ships in 2-5 days

0

5235319-S

Kohler 52 353 19-S

LINE

Note: NOT ILLUSTRATED

$17.99

$

Usually ships in 2-5 days

0

2515538-S

Kohler 25 155 38-S

CONNECTOR, HOSE

Note: NOT ILLUSTRATED

$16.99

$

In Stock, only 3 left!

0

2531301-S

Kohler 25 313 01-S

BUSHING, FUEL TANK

Note: NOT ILLUSTRATED

$5.99

$

In Stock, only 3 left!

0

2417655-S

Kohler 24 176 55-S

HARNESS, WIRING - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2417663-S

Kohler 24 176 63-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$678.99

$

Usually ships in 2-5 days

0

2440401-S

Kohler 24 404 01-S

RELAY, MINI

Note: NOT ILLUSTRATED

$59.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2411378-S

Kohler 24 113 78-S

DECAL, WARNING

Note: NOT ILLUSTRATED

$29.99

$

Usually ships in 2-5 days

0
