CH26-78513 - Kohler Command PRO EFI Engine, Made for Three R Industries, 26hp, 19.4kW Blower Housing & Baffles 6-24-326 (TP-2510-A) Parts Diagram

Command PRO EFI Engine, Made for Three R Industries, 26hp, 19.4kW

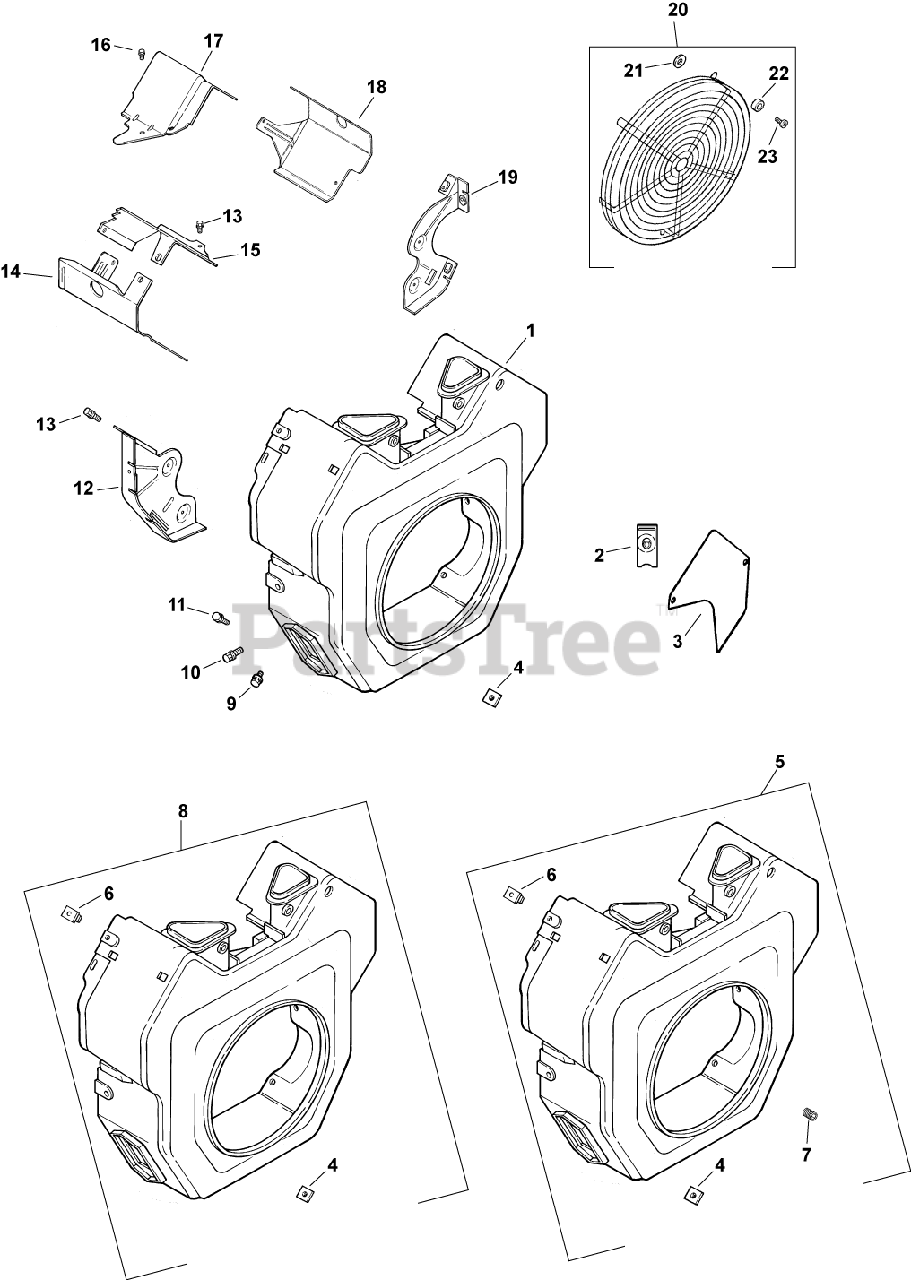

Blower Housing & Baffles 6-24-326 (TP-2510-A) Parts Diagram

  • Title

4

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

6

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 24 027 80-S

BLOWER HOUSING ASSY-USE 24 027 121-S
(Superseded to 24 027 121-S)

Note: (includes 4,6)

$

$

Not available

9

Kohler M-551016-S

SCREW, HVY FLG M5X.8X16

$2.49

$

In Stock, only 2 left!

0

10

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

11

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

12

Kohler 24 146 19-S

PLATE, BACKING #2 SIDE-USE 24 146 59-S
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 1 left!

0

13

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

14

Kohler 24 063 39-S

BAFFLE,VALLEY #2SIDE(KM)-USE 24 063 88-S
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

15

Kohler 24 063 70-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 32 063 02-S)

$9.49

$

Usually ships in 2-5 days

0

16

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

17

Kohler 24 063 59-S

BAFFLE, VALLEY (CH)-USE 24 063 93-S
(Superseded to 32 063 03-S)

$6.49

$

In Stock, only 1 left!

0

18

Kohler 24 063 58-S

BAFFLE, RIGHT BARREL-USE 24 063 85-S
(Superseded to 24 063 85-S)

$17.99

$

In Stock, only 1 left!

0

19

Kohler 24 146 20-S

PLATE, BACKING - DISCONTINUED

$

$

Not available

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

M-561016-S

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 15

0

M-561010-S

Kohler M-561010-S

SCREW, THRD FRM M5X0.8X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

24113100-S

Kohler 24 113 100-S

DECAL, 26 HP

Note: NOT ILLUSTRATED

$7.99

$

Usually ships in 2-5 days

0
