CH25-68697 - Kohler Command PRO Twin Engine, Made for Scag, 25hp, 18.61kW Blower Housing & Baffles 6-24-259 Parts Diagram

Command PRO Twin Engine, Made for Scag, 25hp, 18.61kW

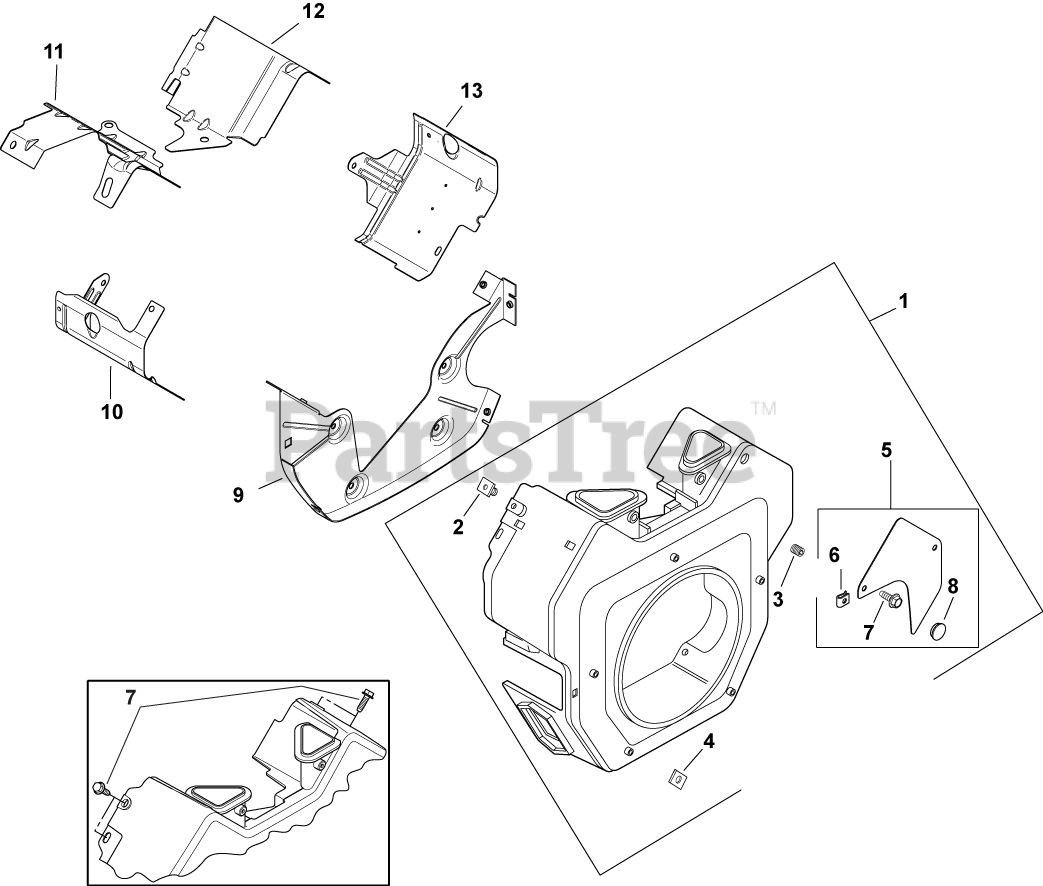

Blower Housing & Baffles 6-24-259 Parts Diagram

  • Title

1

Kohler 54 027 98-S

BLOWER HOUSING ASSY-USE 84 027 11-S
(Superseded to 84 027 11-S)

Note: (includes 2-6, 7 [qnty 4] & 24 332 01-S)

$143.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

5

Kohler 25 755 21-S

KIT, ACCESS PANEL USE 25 755 20-S
(Superseded to 25 755 20-S)

Note: (includes 6, 7, 8 [qty 4] & 24 113 126-S)

$27.99

$

In Stock, Qty 5

0

6

Kohler 25 154 02-S

CLIP, MOUNTING-USE 25 154 13-S
(Superseded to 25 154 37-S)

$2.49

$

In Stock, Qty 12

0

7

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

8

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 24 146 55-S

PLATE, BACKING-USE 24 146 59-S
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 1 left!

0

10

Kohler 24 063 20-S

USE 24 063 39-S BAFFLE
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

11

Kohler 24 063 17-S

BAFFLE,VALLEY #2SIDE(KM)-USE 24 063 70-S
(Superseded to 24 063 70-S)

$9.49

$

Usually ships in 2-5 days

0

12

Kohler 24 063 59-S

BAFFLE, VALLEY (CH)-USE 24 063 93-S
(Superseded to 32 063 03-S)

$6.49

$

In Stock, only 1 left!

0

13

Kohler 24 063 58-S

BAFFLE, RIGHT BARREL-USE 24 063 85-S
(Superseded to 24 063 85-S)

$17.99

$

In Stock, only 1 left!

0

M-545016-S

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

M-551016-S

Kohler M-551016-S

SCREW, HVY FLG M5X.8X16

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

M-545020-S

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 20+

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

Note: NOT ILLUSTRATED

$4.49

$

In Stock, only 3 left!

0

2433201-S

Kohler 24 332 01-S

INSERT, THREADED USE 25 332 19-S
(Superseded to 25 332 19-S)

Note: NOT ILLUSTRATED

$3.49

$

In Stock, Qty 5

0

24113126-S

Kohler 24 113 126-S

DECAL, KEY SWITCH

Note: NOT ILLUSTRATED

$2.99

$

Usually ships in 2-5 days

0
