CH25-68689 - Kohler Command PRO Twin Engine, Made for Ingersoll, 25hp, 18.61kW Fuel System 8-24-314 Parts Diagram

Command PRO Twin Engine, Made for Ingersoll, 25hp, 18.61kW

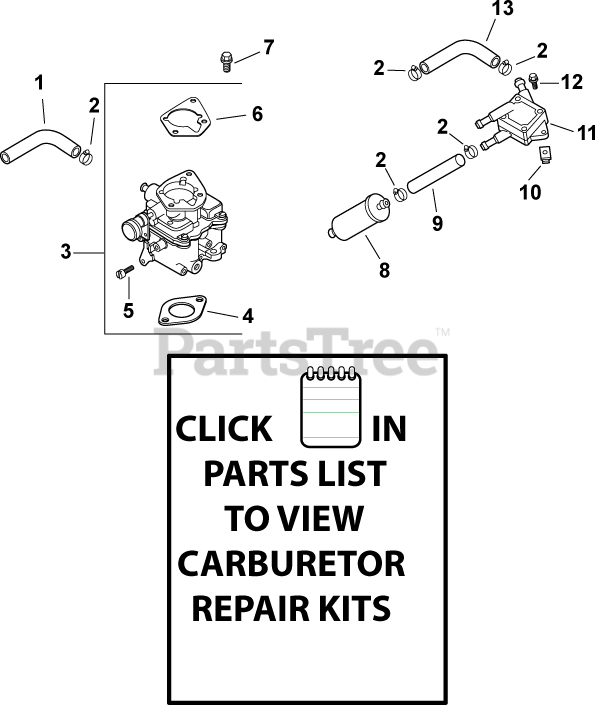

Fuel System 8-24-314 Parts Diagram

  • Title

1

Kohler 25 353 32-S

LINE, FLEXIBLE FUEL 9.30"-USE 25 111 81-
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

3

Kohler 24 853 34-S

KIT, CARBURETOR W/GASKET KSF

Note: (includes 4-6)

$434.99

$

In Stock, only 2 left!

0

4

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 12

0

5

Kohler 25 086 05-S

SCREW - DISCONTINUED

$

$

Not available

6

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

7

Kohler M-651025-S

SCREW - USE 25 086 124-S
(Superseded to 25 086 124-S)

$2.49

$

In Stock, only 3 left!

0

8

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

9

Kohler 24 353 41-S

LINE, FLEXIBLE FUEL

$

$

Not available

10

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 13

0

11

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, only 2 left!

0

12

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

13

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

Usually ships in 2-5 days

0

2451824-S

Kohler 24 518 24-S

LEAD, GROUND

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0
