CH25-68686 - Kohler Command PRO Twin Engine, Made for Walker Mfg., 25hp, 18.61kW Crankcase 2-24-151 (TP-2510-A) Parts Diagram

Command PRO Twin Engine, Made for Walker Mfg., 25hp, 18.61kW

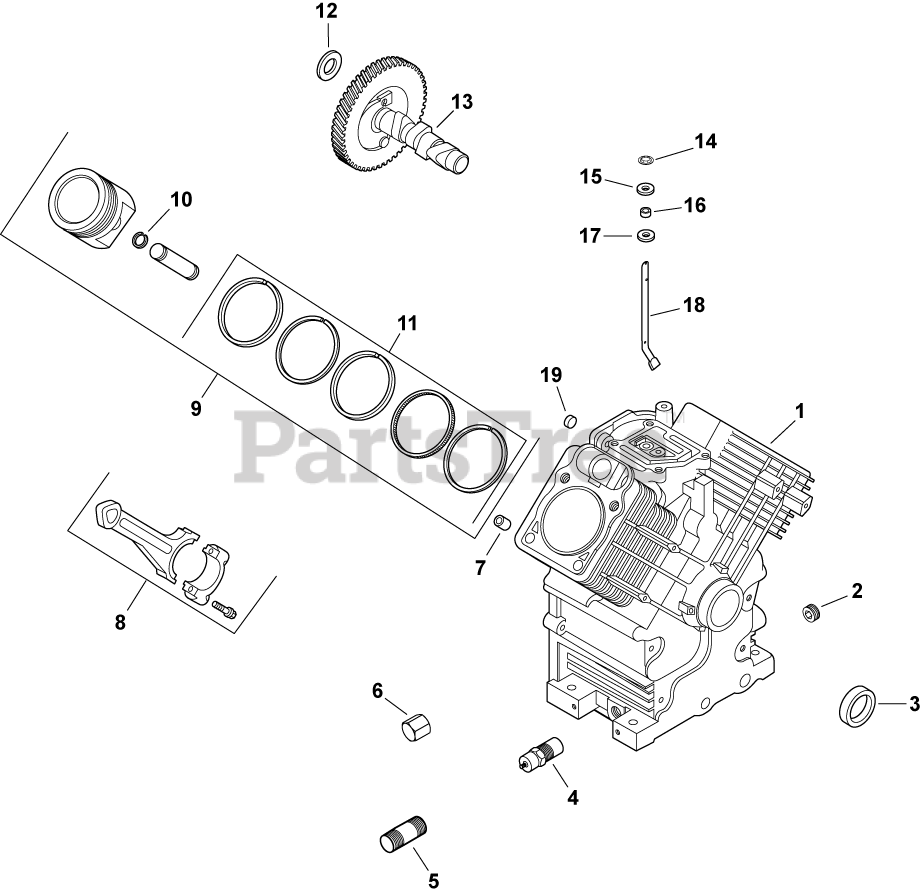

Crankcase 2-24-151 (TP-2510-A) Parts Diagram

  • Title

1

Crankcase

Note: (Use Short Block or Miniblock)

$

$

Not available

2

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

3

Kohler 24 032 01-S

SEAL, OIL FRONT-USE 24 032 19-S
(Superseded to 24 032 19-S)

$7.49

$

In Stock, Qty 20+

0

4

Kohler 24 418 02-S

SENSOR, OIL TEMPERATURE

$156.99

$

Usually ships in 2-5 days

0

5

Kohler 12 136 07-S

NIPPLE, PIPE
(Superseded to 12 136 06-S)

$6.49

$

Usually ships in 2-5 days

0

6

Kohler 25 249 01-S

COUPLING, PIPE

$21.99

$

Usually ships in 2-5 days

0

7

Kohler 24 380 13-S

PIN, DOWEL (SPLIT)-USE 24 380 16-S
(Superseded to 24 380 16-S)

$4.49

$

In Stock, only 3 left!

0

8

Kohler 24 067 13-S

ROD, CONNECTING ASSY STD-USE 24 067 28-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 4 left!

0

2406714-S

Kohler 24 067 14-S

ROD,CONNECT ASSY.25 U/S-USE 24 067 17-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

9

Kohler 24 874 08-S

PISTON W/RINGS (STYLE A)(STD) USE 25 874 01-S
(Superseded to 25 874 13-S)

$270.99

$

In Stock, only 2 left!

0

2487416-S

Kohler 24 874 16-S

KIT, PISTON W/RING SET-USE 24 874 27-S
(Superseded to 25 874 07-S)

$261.99

$

Usually ships in 2-5 days

0

2487420-S

Kohler 24 874 20-S

PISTON W/RING SET-USE 25 874 03-S
(Superseded to 25 874 16-S)

$261.99

$

In Stock, only 1 left!

0

2487421-S

Kohler 24 874 21-S

PISTON W/RING SET-USE 25 874 04-S
(Superseded to 25 874 17-S)

$261.99

$

Usually ships in 2-5 days

0

10

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

11

Kohler 24 108 14-S

DISC USE PISTON ASSY PER SPEC-RING SET(STD)STYLE A-1.5mm Tp RING THICK - Discontinued

$

$

Not available

2410815-S

Kohler 24 108 15-S

RING SET(.08)STYLE A-1.5mm Tp RING THICK

$103.99

$

In Stock, only 3 left!

0

2410816-S

Kohler 24 108 16-S

RING SET(.25)STYLE A-1.5mm Tp RING THICK

$103.99

$

In Stock, only 2 left!

0

2410817-S

Kohler 24 108 17-S

RING SET(.50)STYLE A-1.5mm Tp RING THICK

$

$

Not available

12

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

13

Kohler 24 012 10-S

KIT, CAMSHAFT
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

14

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

15

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

16

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

17

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

18

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

19

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0
