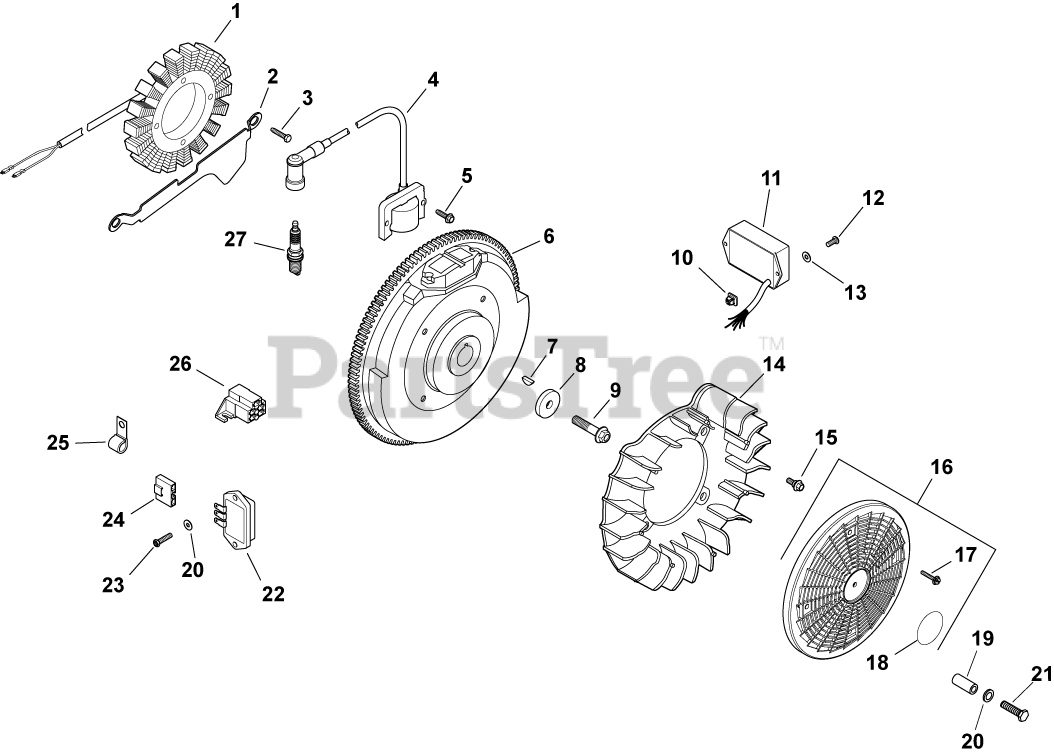

CH25-68683 - Kohler Command PRO Twin Engine, Made for Trailblazer Mfg., 25hp, 18.61kW Ignition/Electrical 5-24-166 Parts Diagram

Command PRO Twin Engine, Made for Trailblazer Mfg., 25hp, 18.61kW

Ignition/Electrical 5-24-166 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 6

0

2

Kohler 24 126 139-S

BRACKET, STATOR WIRE

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 584 15-S

USE 24 584 36-S MODULE
(Superseded to 24 584 36-S)

$102.99

$

In Stock, only 4 left!

0

5

Kohler M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

In Stock, only 4 left!

0

6

Kohler 24 025 14-S

FLYWHEEL, PAINTED-USE 24 025 57-S
(Superseded to 24 025 57-S)

$372.99

$

Usually ships in 2-5 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 9

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$

$

Not available

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 24 584 10-S

MODULE, SPEED ADVANCE-DISCONTINUED SEE PB265
(Superseded to 24 584 09-S)

$

$

Not available

12

Kohler 24 086 41-S

SCREW, PHL HD #11-16X1/2"

$2.99

$

In Stock, only 3 left!

0

13

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

14

Kohler 24 157 07-S

FAN (WITH HOLE)-USE 24 157 16-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, Qty 7

0

15

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

16

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: (includes 17,18)

$41.99

$

In Stock, only 1 left!

0

17

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$2.99

$

In Stock, only 4 left!

0

18

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

19

Kohler 24 112 04-S

SPACER - DISCONTINUED

$

$

Not available

20

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

21

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

22

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

23

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

24

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

25

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

26

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

27

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

2451812-S

Kohler 24 518 12-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED

$44.99

$

Usually ships in 2-5 days

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 1 left!

0

2545401-S

Kohler 25 454 01-S

USE 25 454 05-S WIRE TIE
(Superseded to 25 454 05-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
