CH25-68644 - Kohler Command PRO Twin Engine, Made for Marathon, 25hp, 18.61kW Air Intake/Filtration Parts Diagram

Command PRO Twin Engine, Made for Marathon, 25hp, 18.61kW

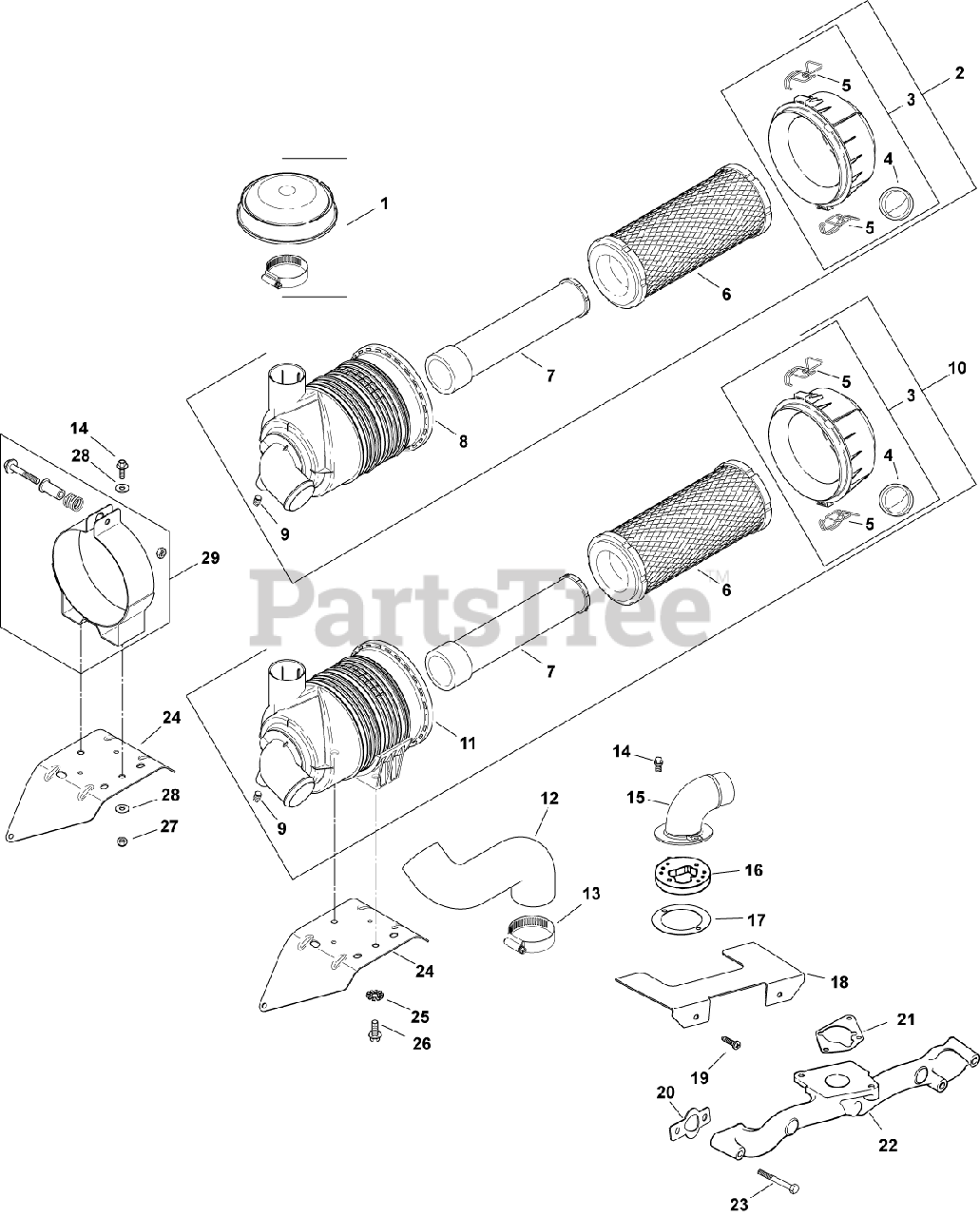

Air Intake/Filtration Parts Diagram

  • Title

1

Kohler 25 324 02-S

HOOD, AIR CLEANER (5.25)-USE 25 324 04-S
(Superseded to 25 324 04-S)

$49.99

$

In Stock, only 1 left!

0

2

Kohler 25 048 11-S

AIR CLNR, CANISTER-USE 25 048 17-S
(Superseded to 25 048 17-S)

Note: (includes 3-9) (Before S/N 3613600011)

$143.99

$

In Stock, only 1 left!

0

3

Kohler 25 096 06-S

COVER ASSEMBLY, AIR CLEANER

Note: (includes 4,5)

$87.99

$

In Stock, only 1 left!

0

4

Kohler 24 462 07-S

VALVE, DUST EJECTOR

$21.99

$

In Stock, only 2 left!

0

5

Kohler 25 154 05-S

CLIP - USE 62 154 07-S
(Superseded to 62 154 07-S)

$13.99

$

In Stock, Qty 12

0

6

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$32.99

$

In Stock, Qty 20+

0

7

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$32.99

$

In Stock, Qty 20+

0

8

Kohler 25 081 01-S

HOUSING, HD AIR CLEANER

Note: (Before S/N 3613600011)

$140.99

$

In Stock, only 1 left!

0

9

Kohler 25 139 20-S

PLUG, PIPE

$8.99

$

Usually ships in 2-5 days

0

10

Kohler 25 048 10-S

AIR CLEANER, CANISTER

Note: (includes 3-7,9,11) (After S/N 3613600001)

$200.99

$

In Stock, only 1 left!

0

11

Kohler 25 081 03-S

HOUSING, HEAVY DUTY A/C

Note: (After S/N 3613600001)

$198.99

$

In Stock, only 1 left!

0

12

Kohler 24 326 32-S

HOSE, AIR CLEANER

$14.99

$

Usually ships in 2-5 days

0

13

Kohler 25 237 21-S

CLAMP, HOSE

$7.99

$

In Stock, only 2 left!

0

14

Kohler M-639016-S

SCREW, FLG M6X1.0X16

Note: (After S/N 3613600001)

$2.49

$

In Stock, Qty 7

0

M-639016-S

Kohler M-639016-S

SCREW, FLG M6X1.0X16

Note: (Before S/N 3613066611)

$2.49

$

In Stock, Qty 7

0

15

Kohler 24 029 21-S

ADAPTER, REMOTE AIR CLEANER

$139.99

$

Usually ships in 2-5 days

0

16

Kohler 24 029 64-S

ADAPTER ASSEMBLY (CH730)-USE 24 029 96-S
(Superseded to 24 029 96-S)

$395.99

$

Usually ships in 2-5 days

0

17

Kohler 24 041 34-S

GASKET, ADAPTER

$3.49

$

Usually ships in 2-5 days

0

18

Kohler 24 314 29-S

SHIELD, DEBRIS

$20.99

$

Usually ships in 2-5 days

0

19

Kohler 24 086 06-S

SCREW, PHL HD 11-16X3/4"

$2.49

$

In Stock, only 3 left!

0

20

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 9

0

21

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

22

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

23

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

24

Kohler 24 126 146-S

BRACKET, AIR CLEANER

$20.99

$

Usually ships in 2-5 days

0

25

Kohler X-22-16-S

WASHER,INT EXT TOOTH LOCK 5/16"

Note: (After S/N 3613600001)

$3.99

$

Usually ships in 2-5 days

0

26

Kohler M-839020-S

SCREW, FLG M8X1.25X20

Note: (Before S/N 3613600001)

$2.49

$

In Stock, only 2 left!

0

27

Kohler M-647060-S

NUT, LOCK M6X1.0

Note: (Before S/N 3613600011)

$2.49

$

In Stock, only 2 left!

0

28

Kohler X-25-73-S

WASHER, FLAT 1/4" (O.D. 1")

Note: (Before S/N 3613600011)

$3.99

$

Usually ships in 2-5 days

0

29

Kohler 25 126 02-S

BRACKET, AIR CLEANER-USE 24 126 191-S
(Superseded to 24 126 191-S)

Note: (Before S/N 3613600011)

$62.99

$

Usually ships in 2-5 days

0

2545404-S

Kohler 25 454 04-S

TIE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
