CH25-68638 - Kohler Command PRO Twin Engine, Made for US Filter, 25hp, 18.61kW Air Intake/Filtration 10-24-78 Parts Diagram

Command PRO Twin Engine, Made for US Filter, 25hp, 18.61kW

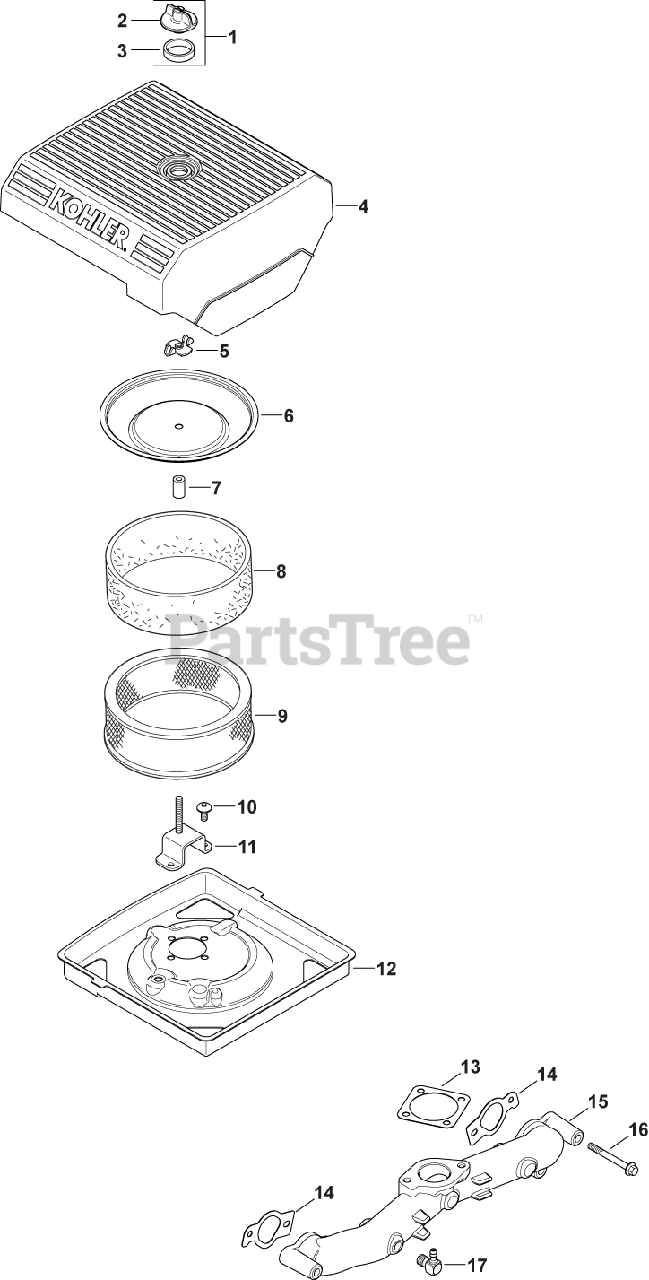

Air Intake/Filtration 10-24-78 Parts Diagram

  • Title

1

Kohler 54 755 01-S

KIT, KNOB W/SEAL

Note: (includes 2, 3)

$9.49

$

In Stock, only 4 left!

0

2

Kohler 25 341 04-S

KNOB, COVER

$7.99

$

Usually ships in 2-5 days

0

3

Kohler 24 153 20-S

O-RING

$2.49

$

In Stock, Qty 10

0

4

Kohler 24 096 67-S

COVER, AIR CLEANER

$47.99

$

In Stock, only 1 left!

0

5

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 2 left!

0

6

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

7

Kohler 230046-S

SEAL, BREATHER

$6.49

$

In Stock, only 1 left!

0

8

Kohler 24 083 05-S

PRE-CLEANER (HIGH)

$6.99

$

In Stock, only 4 left!

0

9

Kohler 24 083 03-S

ELEMENT, AIR FILTER (HIGH) - Also available Retail Packaged 24 883 03-S1 Air Filter Kit

$23.99

$

Usually ships in 2-5 days

0

10

Kohler 24 086 55-S

SCREW, IND SLT HD 10-32X1/2"

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 24 126 74-S

BRACKET, AIR CLEANER

$9.99

$

Usually ships in 2-5 days

0

12

Kohler 24 094 29-S

BASE, AIR CLEANER

$56.99

$

In Stock, only 2 left!

0

13

Kohler 277093-S

GASKET, AIR CLEANER

$8.49

$

In Stock, Qty 6

0

14

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

15

Kohler 24 164 34-S

MANIFOLD, INTAKE

$196.99

$

Usually ships in 2-5 days

0

16

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

17

Kohler X-391-11-S

CONNECTOR, 90 DEG. - DISCONTINUED

$

$

Not available
