CH25-68636 - Kohler Command PRO Twin Engine, Made for Stern, 25hp, 18.61kW Ignition/Electrical 5-24-304 Parts Diagram

Command PRO Twin Engine, Made for Stern, 25hp, 18.61kW

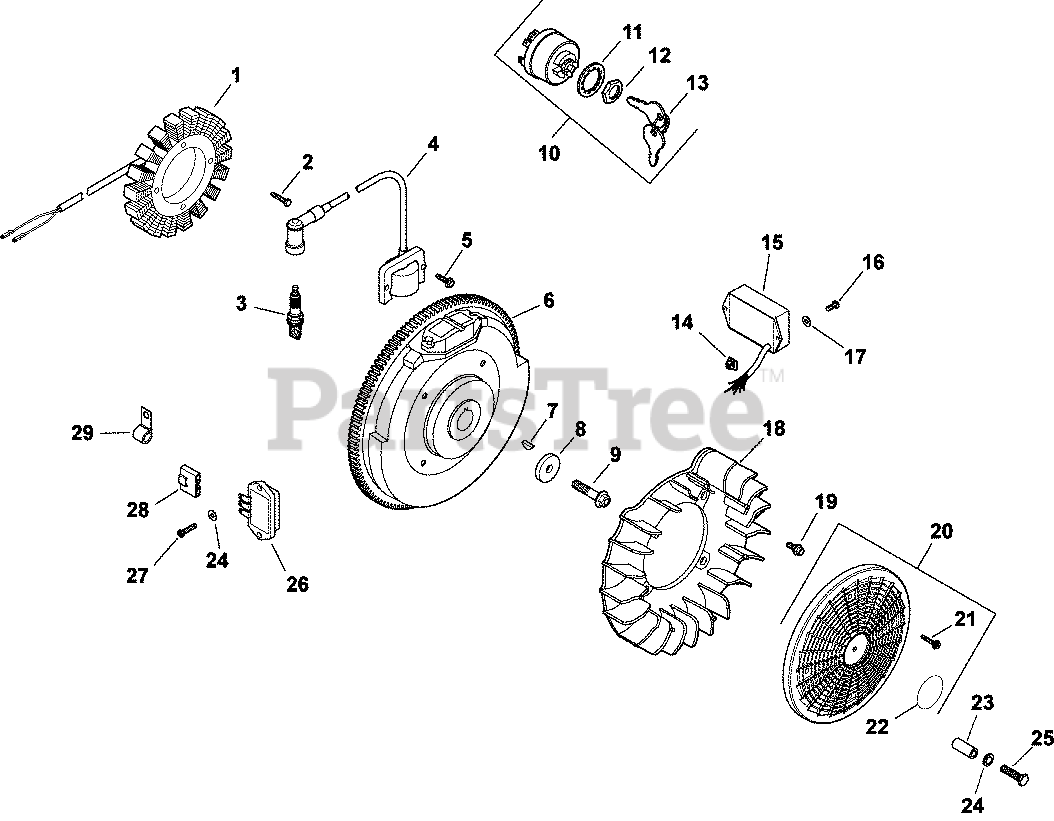

Ignition/Electrical 5-24-304 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

Note: (includes 25 452 01-S)

$194.99

$

In Stock, only 1 left!

0

2

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30-DISCONTINUED

$

$

Not available

3

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

4

Kohler 24 584 36-S

MODULE,IGNITION

$102.99

$

In Stock, only 2 left!

0

5

Kohler M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

In Stock, only 4 left!

0

6

Kohler 24 025 14-S

FLYWHEEL, PAINTED-USE 24 025 57-S
(Superseded to 24 025 57-S)

$372.99

$

Usually ships in 2-5 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 11-13)

$63.99

$

In Stock, only 4 left!

0

11

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

12

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

13

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 1 left!

0

14

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 24 584 10-S

MODULE, SPEED ADVANCE-DISCONTINUED SEE PB265
(Superseded to 24 584 09-S)

$

$

Not available

16

Kohler 24 086 41-S

SCREW, PHL HD #11-16X1/2"

$2.99

$

In Stock, only 2 left!

0

17

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

18

Kohler 24 157 16-S

FAN USE 24 157 11-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, Qty 5

0

19

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

20

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: (includes 17,18)

$41.99

$

In Stock, only 1 left!

0

21

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$2.99

$

In Stock, only 4 left!

0

22

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

23

Kohler 24 112 04-S

SPACER - DISCONTINUED

$

$

Not available

24

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

25

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

26

Kohler 25 403 05-S

REG/RECTIFIER (20/25 AMP)-USE 25 403 20-S
(Superseded to 25 403 48-S)

$68.99

$

In Stock, Qty 11

0

27

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

28

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

29

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, Qty 5

0

2451812-S

Kohler 24 518 12-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED

$44.99

$

Usually ships in 2-5 days

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 1 left!

0

24113126-S

Kohler 24 113 126-S

DECAL, KEY SWITCH

Note: NOT ILLUSTRATED

$2.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
