CH25-68636 - Kohler Command PRO Twin Engine, Made for Stern, 25hp, 18.61kW Fuel System 8-24-268 Parts Diagram

Command PRO Twin Engine, Made for Stern, 25hp, 18.61kW

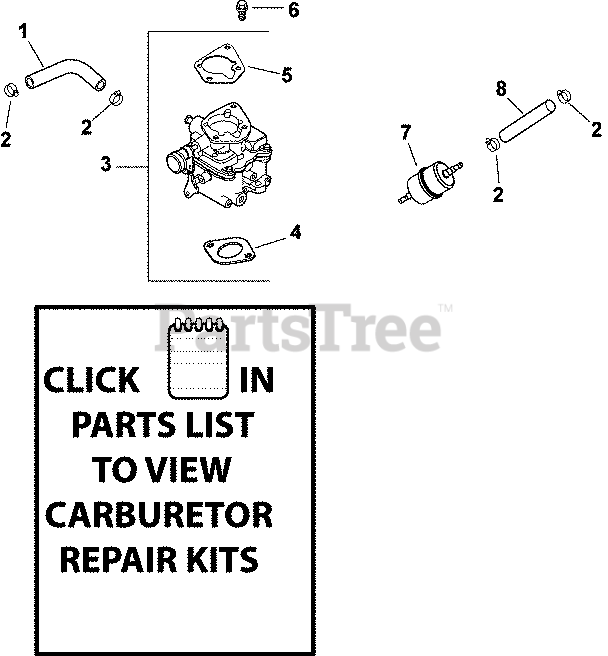

Fuel System 8-24-268 Parts Diagram

  • Title

1

Kohler 25 353 15-S

LINE FLEXBLE FUEL (3.5" x.25") -USE 25 1
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 78-S

KIT,CARB (KEIHIN) W/GASKETS

Note: (includes 4,5)

$411.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

5

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 9

0

6

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

7

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0
