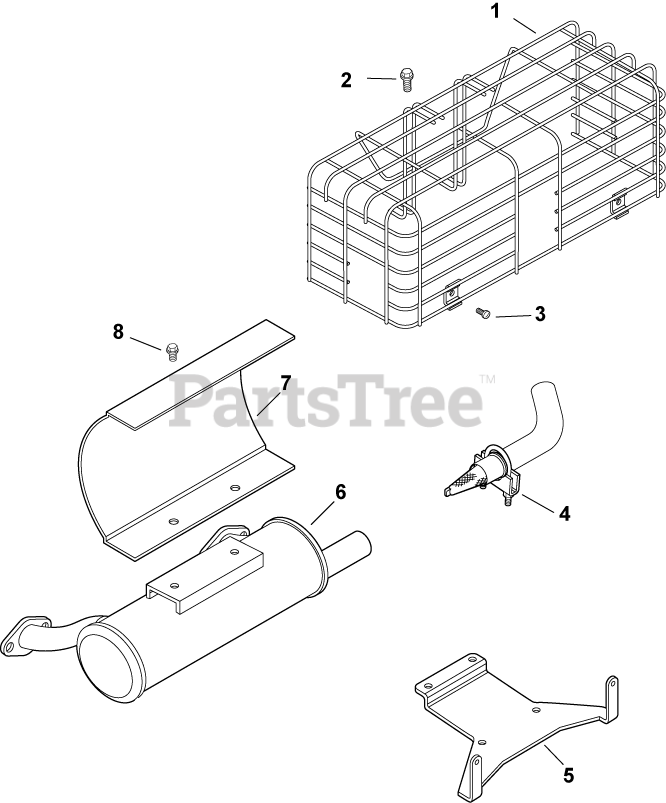

CH25-68625 - Kohler Command PRO Twin Engine, Made for Lucas Sawmill, 25hp, 18.61kW Parts Shipped Uninstalled from Kohler 24 068 18-S Created 6/21/2006, Rev 11/6/2006 Parts Diagram

Command PRO Twin Engine, Made for Lucas Sawmill, 25hp, 18.61kW

Parts Shipped Uninstalled from Kohler 24 068 18-S Created 6/21/2006, Rev 11/6/2006 Parts Diagram

  • Title

1

Kohler 24 314 02-S

GUARD, MUFFLER

$153.99

$

Usually ships in 2-5 days

0

2

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

3

Kohler M-555010-S

SCREW, PHL PAN HD M5X0.8X10

$2.49

$

In Stock, only 3 left!

0

4

Kohler 24 189 01-S

ARRESTOR W/DEFLECTOR

$43.99

$

Usually ships in 2-5 days

0

5

Kohler 24 126 48-S

BRACKET, EXHAUST GUARD

$95.99

$

Usually ships in 2-5 days

0

6

Kohler 24 068 18-S

MUFFLER, FILTER SIDE/STRAIGHT - DISCONTINUED
(Superseded to 24 068 132-S)

$279.99

$

In Stock, only 1 left!

0

7

Kohler 24 314 04-S

SHIELD, HEAT-USE 24 314 50-S
(Superseded to 24 314 50-S)

$40.99

$

In Stock, only 1 left!

0

8

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0
