CH25-68625 - Kohler Command PRO Twin Engine, Made for Lucas Sawmill, 25hp, 18.61kW Blower Housing & Baffles 6-24-245 Created 11/6/2006 Parts Diagram

Command PRO Twin Engine, Made for Lucas Sawmill, 25hp, 18.61kW

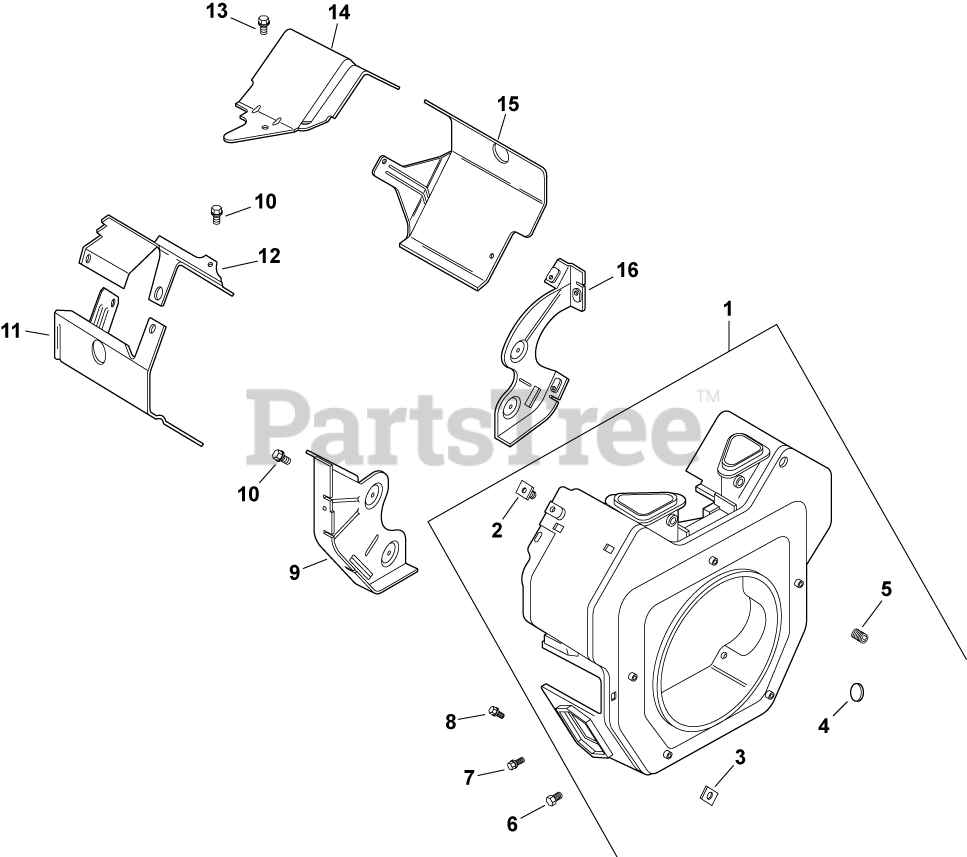

Blower Housing & Baffles 6-24-245 Created 11/6/2006 Parts Diagram

  • Title

1

Kohler 24 027 190-S

KIT, BLOWER HOUSING ASSEMBLY USE 24 027 489-S
(Superseded to 24 027 489-S)

Note: (includes 2-5)

$116.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 13

0

3

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

6

Kohler M-551016-S

SCREW, HVY FLG M5X.8X16

$2.49

$

In Stock, only 2 left!

0

7

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

8

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

9

Kohler 24 146 20-S

PLATE, BACKING - DISCONTINUED

$

$

Not available

10

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

11

Kohler 24 063 39-S

BAFFLE,VALLEY #2SIDE(KM)-USE 24 063 88-S
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

12

Kohler 24 063 58-S

BAFFLE, RIGHT BARREL-USE 24 063 85-S
(Superseded to 24 063 85-S)

$17.99

$

In Stock, only 1 left!

0

13

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

14

Kohler 24 063 70-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 32 063 02-S)

$9.49

$

Usually ships in 2-5 days

0

15

Kohler 24 063 59-S

BAFFLE, VALLEY (CH)-USE 24 063 93-S
(Superseded to 32 063 03-S)

$6.49

$

In Stock, only 1 left!

0

16

Kohler 24 146 18-S

PLATE, BACKING #2 SIDE

$

$

Not available

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
