CH25-68598 - Kohler Command PRO Twin Engine, Made for Cushman, 25hp, 18.61kW Crankcase 2-24-117 Parts Diagram

Command PRO Twin Engine, Made for Cushman, 25hp, 18.61kW

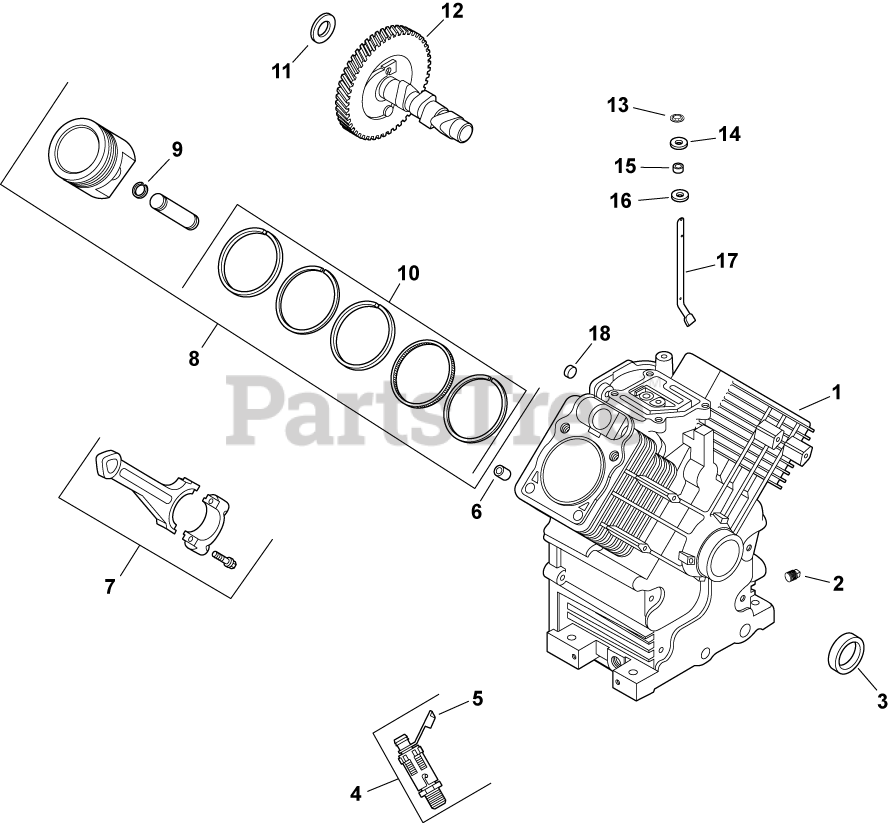

Crankcase 2-24-117 Parts Diagram

  • Title

1

Kohler 24 561 138-S

KIT, CRANKCASE

$798.99

$

Usually ships in 2-5 days

0

2

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

3

Kohler 24 032 01-S

SEAL, OIL FRONT-USE 24 032 19-S
(Superseded to 24 032 19-S)

$7.49

$

In Stock, Qty 20+

0

4

Kohler 25 755 14-S

KIT, OIL DRAIN VALVE

$26.99

$

In Stock, only 1 left!

0

5

Kohler 25 173 14-S

CAP, OIL DRAIN VALVE

$2.49

$

In Stock, only 1 left!

0

6

Kohler 24 380 13-S

PIN, DOWEL (SPLIT)-USE 24 380 16-S
(Superseded to 24 380 16-S)

$4.49

$

In Stock, only 3 left!

0

7

Kohler 24 067 13-S

ROD, CONNECTING ASSY STD-USE 24 067 28-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 4 left!

0

2406714-S

Kohler 24 067 14-S

ROD,CONNECT ASSY.25 U/S-USE 24 067 17-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

8

Kohler 24 874 08-S

PISTON W/RINGS (STYLE A)(STD) USE 25 874 01-S
(Superseded to 25 874 13-S)

$270.99

$

In Stock, only 2 left!

0

9

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

10

Kohler 24 108 04-S

RING SET(STD)STYLE A-1.5mm Tp RING THICK
(Superseded to 24 108 14-S)

$

$

Not available

11

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

1242207-S

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 24 012 10-S

KIT, CAMSHAFT
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

13

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

14

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

15

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

16

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

17

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

18

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

2411356-S

Kohler 24 113 56-S

DECAL, SERVICE - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available
