CH25-68576 - Kohler Command PRO Twin Engine, Made for Toro, 25hp, 18.61kW Blower Housing & Baffles 6-24-196 Parts Diagram

Command PRO Twin Engine, Made for Toro, 25hp, 18.61kW

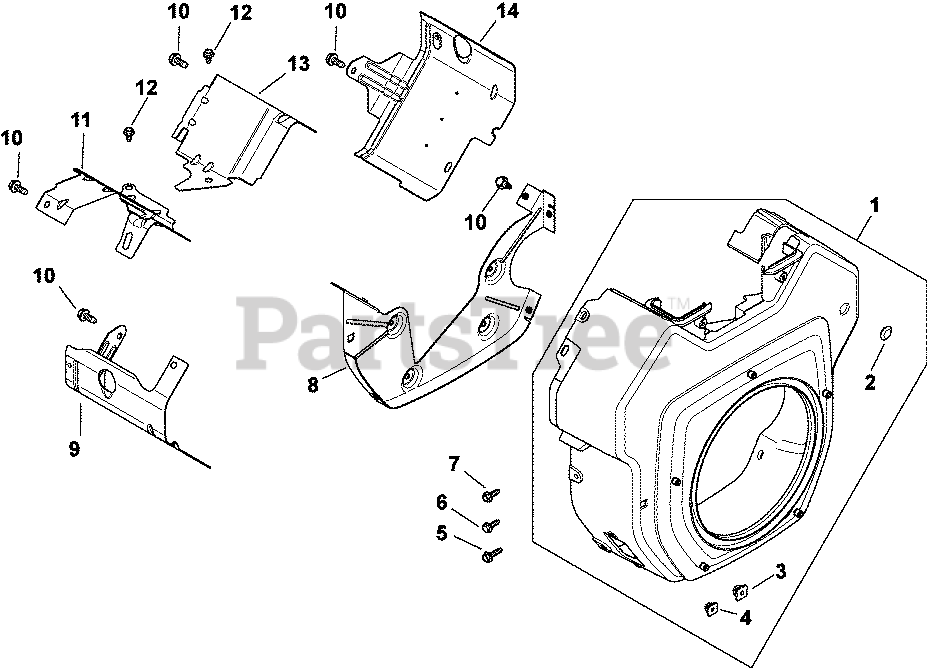

Blower Housing & Baffles 6-24-196 Parts Diagram

  • Title

1

Kohler 24 027 169-S

KIT, BLOWER HOUSING ASSEMBLY USE 24 027 448-S
(Superseded to 24 027 448-S)

$96.99

$

In Stock, only 1 left!

0

2

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

3

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, Qty 7

0

4

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 7

0

5

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

6

Kohler M-551016-S

SCREW, HVY FLG M5X.8X16

$2.49

$

In Stock, only 2 left!

0

7

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 24 146 53-S

PLATE, BACKING (OIL COOLER)-USE 24 146 5
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 1 left!

0

9

Kohler 24 063 88-S

KIT, CYL BAFFEL #2 SIDE

$28.99

$

Usually ships in 2-5 days

0

10

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

11

Kohler 24 063 70-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 32 063 02-S)

$9.49

$

Usually ships in 2-5 days

0

12

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

13

Kohler 24 063 59-S

BAFFLE, VALLEY (CH)-USE 24 063 93-S
(Superseded to 32 063 03-S)

$6.49

$

In Stock, only 1 left!

0

14

Kohler 24 063 85-S

KIT, CYL BAFFEL #1 SIDE

$17.99

$

In Stock, only 1 left!

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
