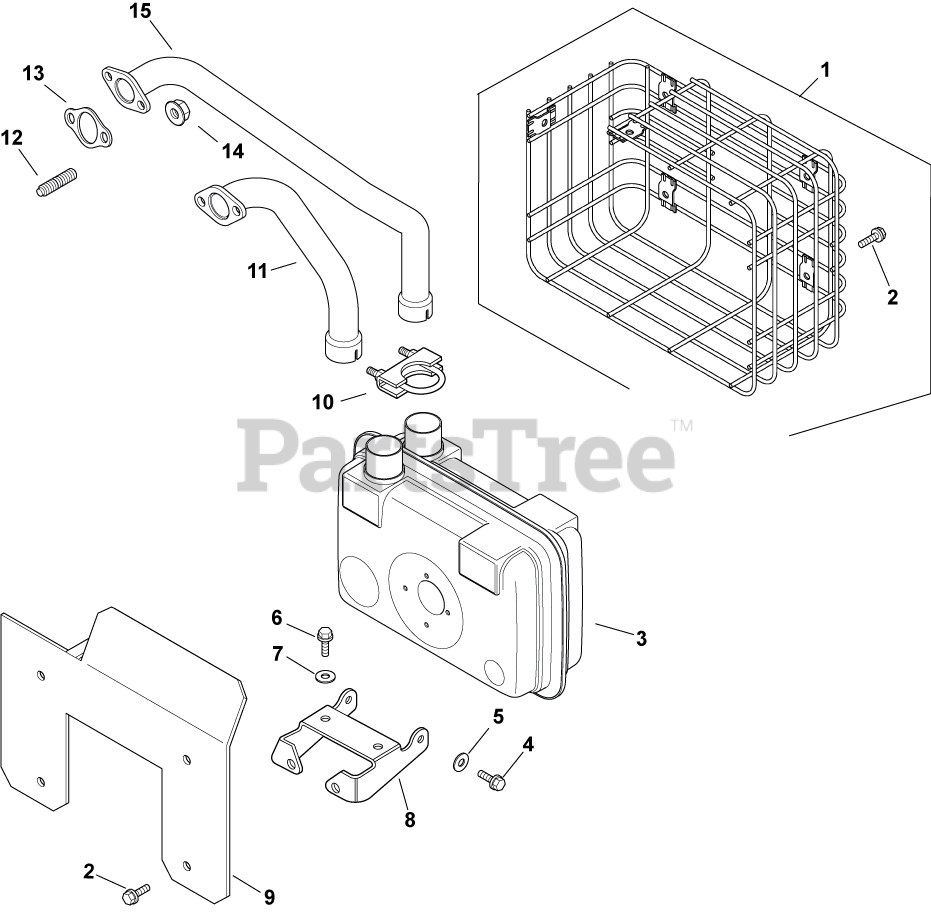

CH25-68574 - Kohler Command PRO Twin Engine, Made for Doskocil, 25hp, 18.61kW Exhaust Group 11-24-70 Parts Diagram

Command PRO Twin Engine, Made for Doskocil, 25hp, 18.61kW

Exhaust Group 11-24-70 Parts Diagram

  • Title

1

Kohler 24 755 151-S

KIT, WIRE GUARD-FILTER SIDE

$123.99

$

Usually ships in 2-5 days

0

2

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

3

Kohler 24 068 31-S

MUFFLER USE 24 068 157-S
(Superseded to 24 068 157-S)

$485.99

$

Usually ships in 2-5 days

0

4

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

5

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

6

Kohler M-801060-S

SCREW, CAP M8X1.25X60

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 24 468 14-S

WASHER, FLAT

$2.99

$

In Stock, only 1 left!

0

8

Kohler 24 126 15-S

BRACKET, MUFFLER

$22.99

$

Usually ships in 2-5 days

0

9

Kohler 24 314 17-S

HEAT SHIELD, MUFFLER

$121.99

$

Usually ships in 2-5 days

0

10

Kohler 24 237 06-S

CLAMP, MUFFLER

$6.99

$

Usually ships in 2-5 days

0

11

Kohler 24 164 21-S

MANIFOLD, EXHAUST

$128.99

$

In Stock, only 1 left!

0

12

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 1 left!

0

13

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

14

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 2 left!

0

15

Kohler 24 164 22-S

MANIFOLD, EXHAUST

$143.99

$

In Stock, only 1 left!

0

2411220-S

Kohler 24 112 20-S

SPACER, MUFFLER

Note: NOT ILLUSTRATED

$13.99

$

Usually ships in 2-5 days

0

2478620-S

Kohler 24 786 20-S

KIT, MUFFLER/OIL FILTER

Note: NOT ILLUSTRATED

$540.99

$

Usually ships in 2-5 days

0
